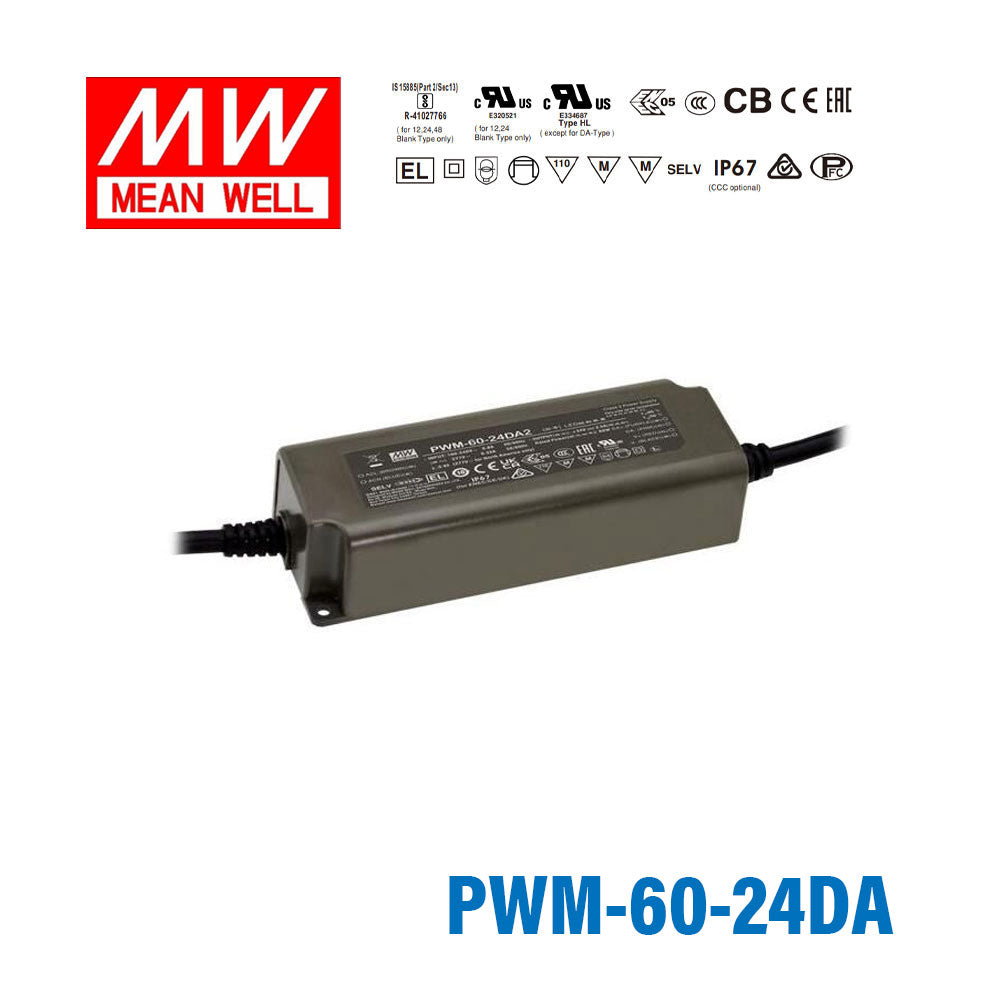

Mean Well PWM-60-24DA Power Supply 60W 24V - DALI
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-60-24DA Power Supply 60W 24V - DALI
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Constant voltage PWM style output |
| Built-in active PFC function |
| High efficiency up to 91% |
| No load power consumption <0.5W |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |
| Fully isolated plastic case |
| Fully encapsulated with IP67 level |
| Class 2 power unit (except for PWM-90-12 & PWM-120) |
| Isolation class II, no F.G. |
| Built-in 2 in 1 dimming function (0~10VDC or PWM signal) |
| Suitable for dry, damp, and wet location |
| Suitable for LED strip lighting |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Overload protection | 108%~120% hiccup mode, auto-recovery |
| Over voltage protection | 113%~142% rated output voltage |
| Over temp. protection | Shut down output voltage, re-power on to recover |
| Setup, rise, hold up time | 500ms, 80ms, 16ms at full load and 230VAC |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved (PWM-40/60/120 pending); Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 (PWM-40/60/120 pending) |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | UL2464 18AWG x2C (30cm)+ 22AWG x2C (30cm) |
| Dimension (LxWxH) (mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PWM-60-24DA in a DALI smart lighting system?
Yes. The PWM-60-24DA includes a DALI (Digital Addressable Lighting Interface) input, allowing it to be addressed and dimmed individually over a DALI bus. This makes it suitable for intelligent building lighting systems and zone-controlled commercial LED installations at 24V.
Is the PWM-60-24DA suitable for outdoor LED display panels?
Yes. With an IP67 waterproof rating, the PWM-60-24DA can be installed in outdoor environments exposed to rain and moisture. Its -40°C to +85°C operating range and DALI dimming support make it a strong choice for remotely controlled outdoor LED signage.
Can the PWM-60-24DA power a dimmable 24V LED strip in a retail display?
Yes. Retail display lighting at 24V with DALI-based dimming control is a well-suited application. The driver outputs up to 60W at 2.5A, which is enough to run moderate-length 24V LED strips. DALI allows the strip brightness to be adjusted from a central controller without additional dimmer hardware at the fixture.
How much 24V LED strip can the PWM-60-24DA support?
The PWM-60-24DA has a maximum output of 60W. Divide that by your strip's power draw per meter to calculate maximum length — a 10 W/m strip could run up to 6 meters, while a 20 W/m strip is limited to about 3 meters. Apply an 80% derating rule for continuous use, reducing usable capacity to 48W.
Does the PWM-60-24DA need an earth ground in the enclosure?
No. Like all PWM series drivers, the PWM-60-24DA features a Class II design without a functional ground (FG), so no earth connection is needed. This is particularly useful when mounting inside plastic weatherproof enclosures.
What is the difference between the PWM-60-24DA and PWM-60-24DA2?
Both are 60W, 24V, 2.5A IP67 drivers in the same physical housing. The PWM-60-24DA uses the original DALI protocol, while the PWM-60-24DA2 supports the newer DALI2 standard, which offers improved interoperability and device query capabilities. Choose DA2 if your DALI controller or luminaires require DALI2 compliance.
