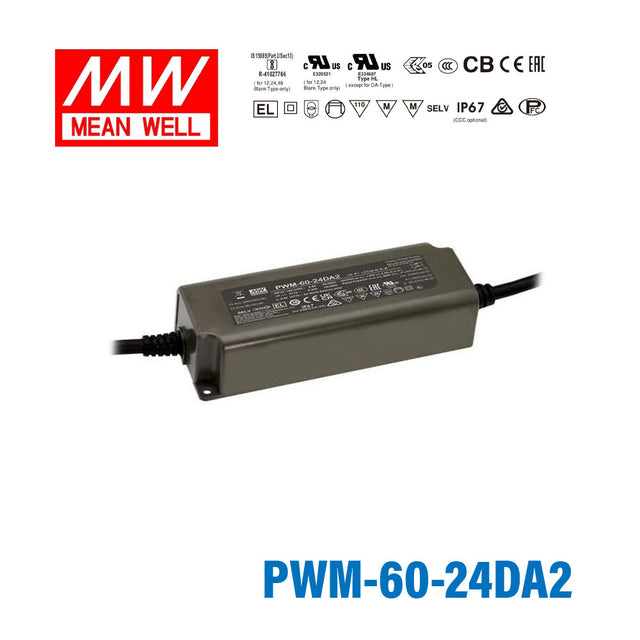

Mean Well PWM-60-24DA2 Power Supply 60W 24V DALI2
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-60-24DA2 Power Supply 60W 24V DALI2
Description
Description
The PWM-60 is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage24V~305V
-
No of Output1
-
Dimming ControlDALI,Push Dimming
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What makes the PWM-60-24DA2 different from standard DALI drivers?
The PWM-60-24DA2 supports the DALI2 standard, which extends the original DALI protocol with enhanced device type definitions and bidirectional communication. This allows DALI2 controllers to query device status and perform more granular diagnostics compared to standard DALI. It accepts input from 24–305VAC, widening its compatibility with various global power sources.
Can the PWM-60-24DA2 be used in a commercial office lighting retrofit with a DALI2 controller?
Yes. The PWM-60-24DA2 is designed for exactly this type of application, providing 24V PWM-style constant voltage output with DALI2 addressable dimming. Its 60W capacity at 2.5A is sufficient for LED strip or panel light systems in individual zones within a DALI2 network.
Is the PWM-60-24DA2 suitable for permanent outdoor installation?
Yes. The IP67 rating certifies the unit against dust ingress and temporary water immersion, making it appropriate for outdoor enclosures, facade lighting, or landscape LED applications. The operating temperature range of -40°C to +85°C extends its suitability to both cold climates and hot enclosures.
How many meters of 24V LED strip can the PWM-60-24DA2 drive?
Maximum output is 60W at 24V. For a 12 W/m strip, that is up to 5 meters; for a 24 W/m strip, up to 2.5 meters. Check your strip's rated power per meter and derate to 80% load (48W) for continuous runs to avoid thermal stress on the driver.
Can I use the PWM-60-24DA2 with a low-voltage DC input instead of AC?
The PWM-60-24DA2 specifies an input range of 24–305VAC. It is an AC-DC driver and is not rated for DC bus input at the low end of that range. Always verify the input waveform requirements with the datasheet before connecting to an unusual source.
Does the PWM-60-24DA2 work for museum or gallery display lighting on a DALI2 bus?
Yes. DALI2 controllability at 24V makes this driver suitable for precision-dimmed display lighting where scene recall and individual zone control are needed. Its fully isolated plastic case and Class II design without FG simplify installation in architecturally finished spaces.
Other PWM-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PWM-60-24 Power Supply 60W 24V - Dimmable | 60W | 24V | 2.5A | IP67 | $30.83 | View |
| Mean Well PWM-60-12 Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | $30.83 | View |
| Mean Well PWM-60-48 Power Supply 60W 48V - Dimmable | 60W | 48V | 1.25A | IP67 | $30.93 | View |
| Mean Well PWM-60-36DA Power Supply 60W 36V - DALI | 60W | 36V | 1.67A | IP67 | $39.44 | View |
| Mean Well PWM-60-36 Power Supply 60W 36V - Dimmable | 60W | 36V | 1.67A | IP67 | $32.74 | View |
| Mean Well PWM-60-24DA Power Supply 60W 24V - DALI | 60W | 24V | 2.5A | IP67 | $39.06 | View |
| Mean Well PWM-60-12DA2 Power Supply 60W 12V DALI2 | 60W | 12V | 5A | IP67 | $39.06 | View |
| Mean Well PWM-60-12DA Power Supply 60W 12V - DALI | 60W | 12V | 5A | IP67 | $39.06 | View |
