Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

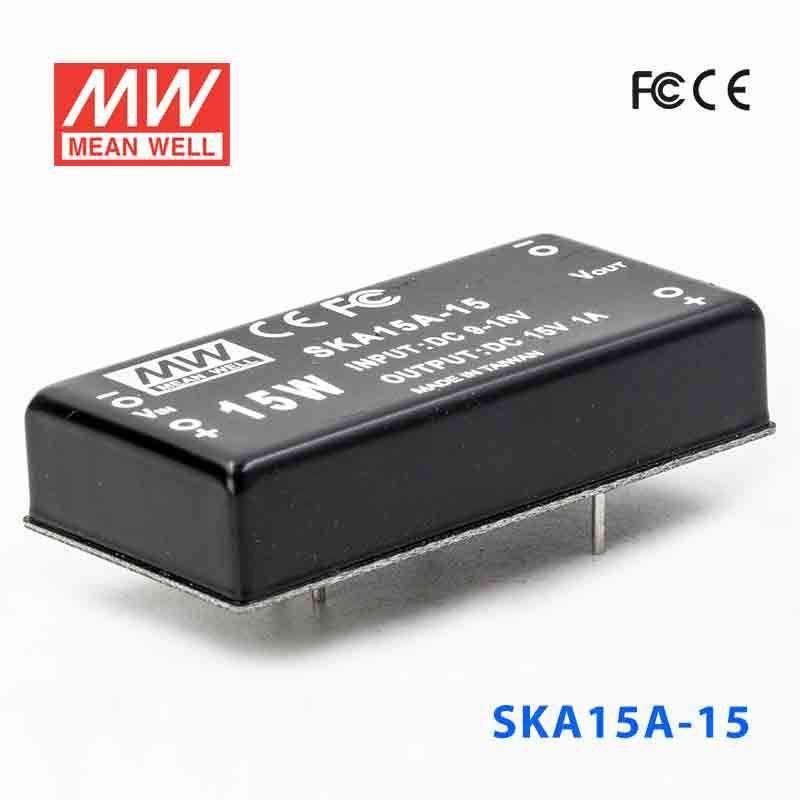

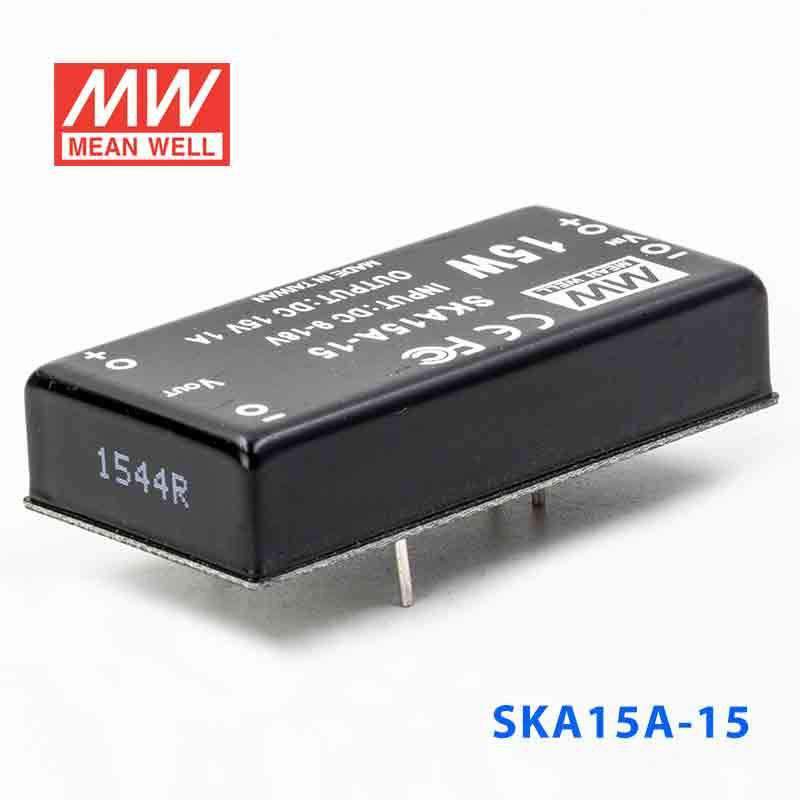

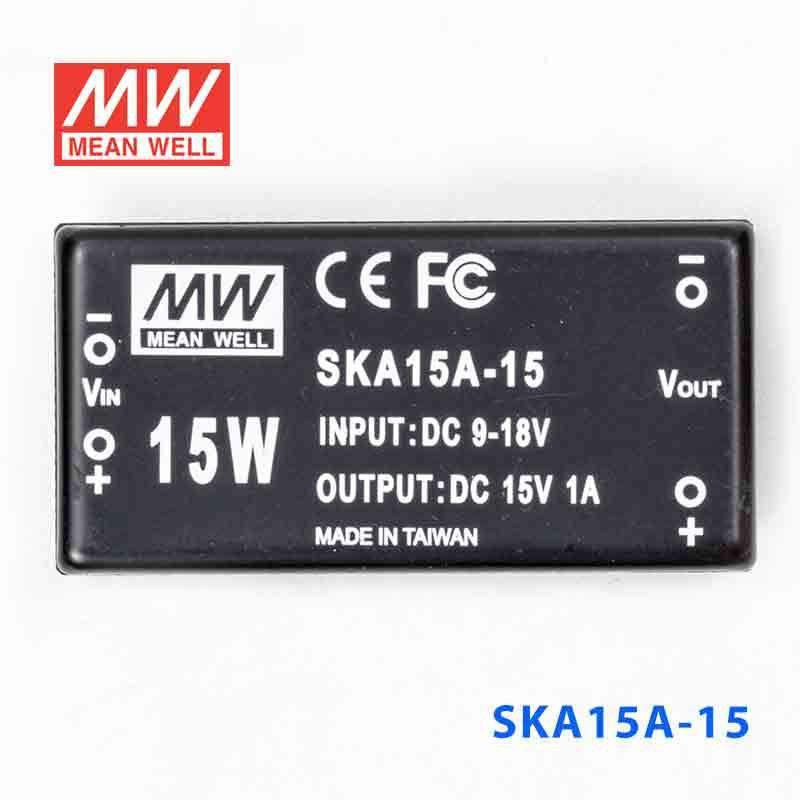

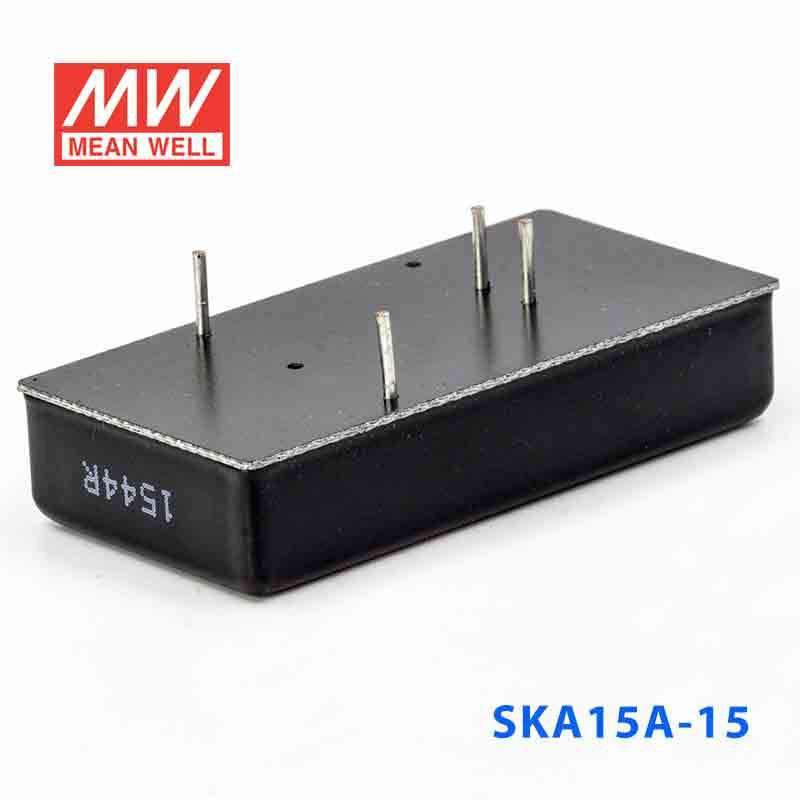

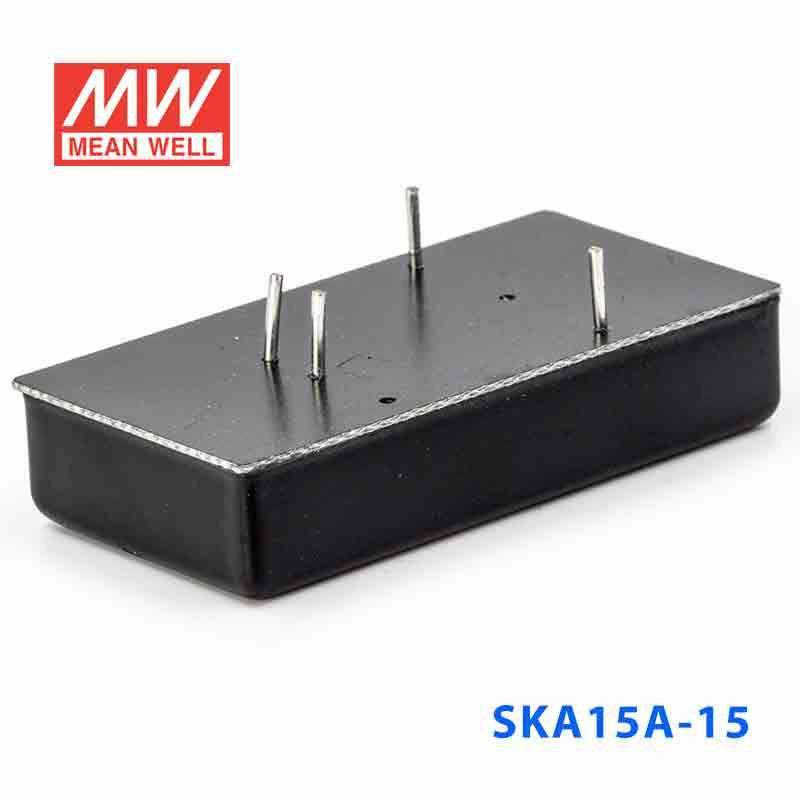

Mean Well SKA15A-15 DC-DC Converter - 9.9W - 9~18V in 15V out
The SKA15A is a 15W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating9.9 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
Can I use the SKA15A-15 for 15V analog or instrumentation circuits in industrial equipment?
Yes, this converter provides a constant 15V output from a 9-18VAC input range. With a 1A maximum output current and 9.9W rating, it is suited to lower-power 15V analog, sensing, or instrumentation sections that fit within that limit.
Is the SKA15A-15 a fit for 15V control modules or signal-conditioning boards?
It can be used where a regulated 15V rail is required for compact control electronics. The output is limited to 1A, so it is better for lighter-duty 15V modules than for larger 15V devices with higher current demand.
Can this 15V model be used as an auxiliary supply in automation panels?
Yes, it works as a small auxiliary converter when the equipment has a 9-18VAC source and the downstream circuit needs constant 15V. The 9.9W output class makes it appropriate for support electronics rather than high-power 15V loads.
Is the SKA15A-15 compact enough for dense electronic assemblies?
The housing is 50.8 × 25.4 × 11.27 mm and the weight is 0.032 kg. That compact size helps when 15V conversion needs to be added inside space-constrained industrial or embedded assemblies.
Can the SKA15A-15 be used in wide-temperature environments or outdoor housings?
It is rated for operation from -40°C to +71°C, which supports use in a broad range of ambient conditions. Because no IP rating is specified, it is more appropriate for protected indoor panels or sheltered enclosures than for direct outdoor exposure.
What are the output differences across the SKA15A series?
All SKA15A versions share the same 9.9W power rating and 9-18VAC input range. The outputs are 3.3V at 3A for SKA15A-033, 5V at 3A for SKA15A-05, 12V at 1.25A for SKA15A-12, and 15V at 1A for SKA15A-15.
