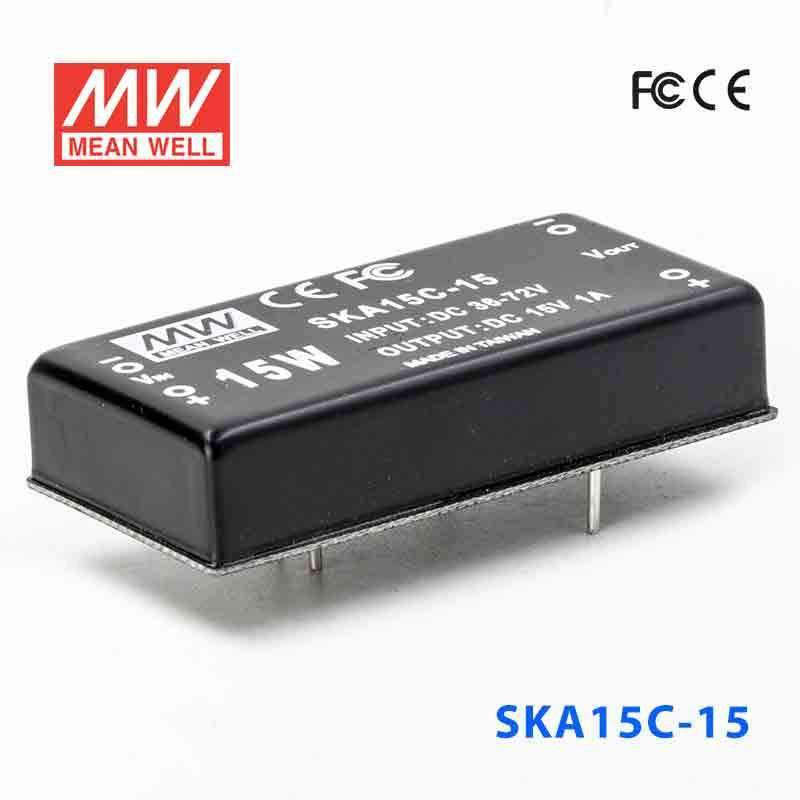

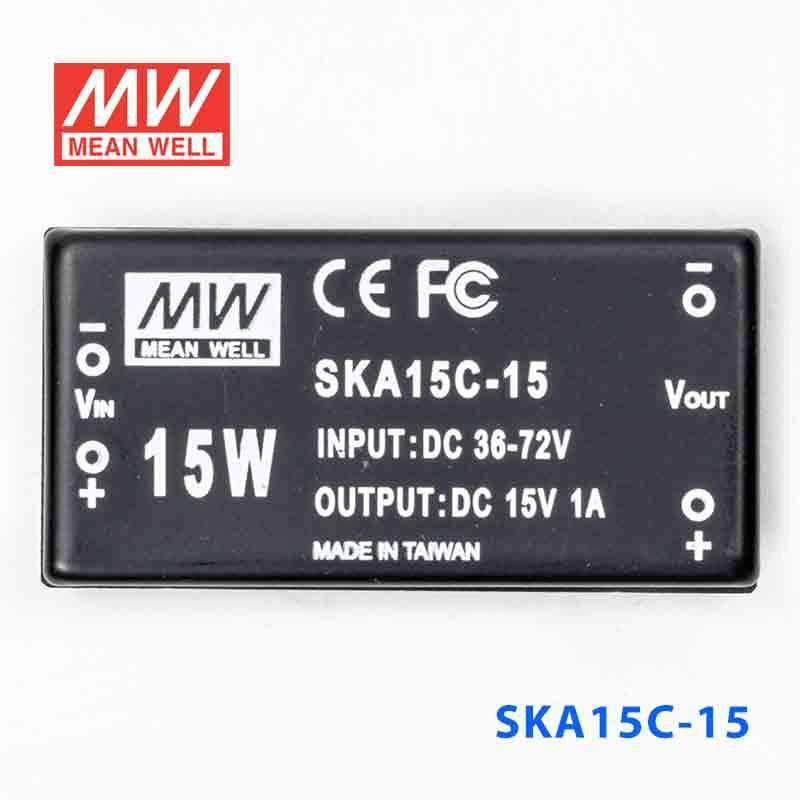

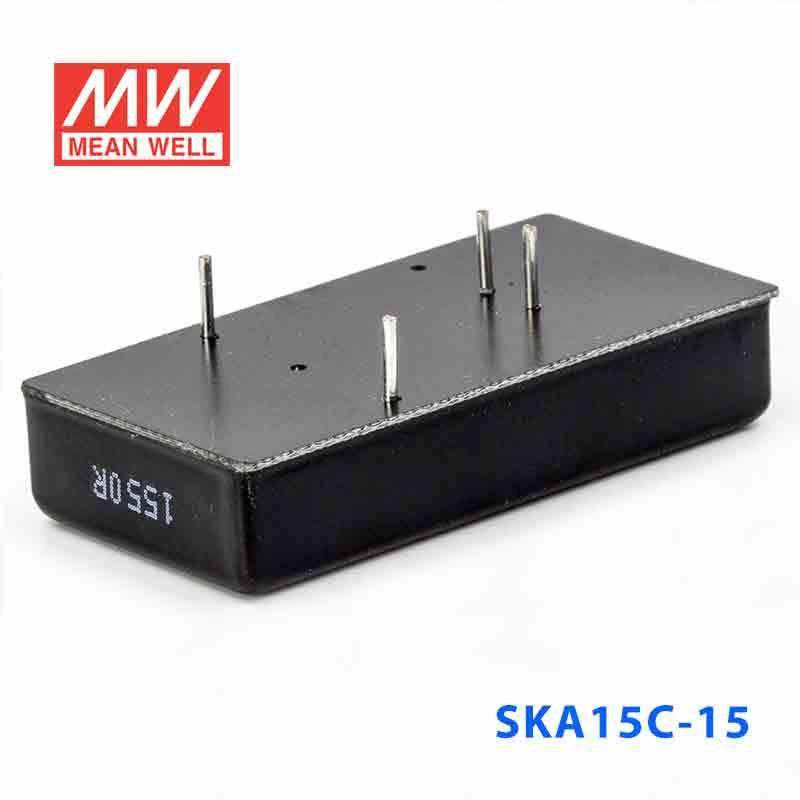

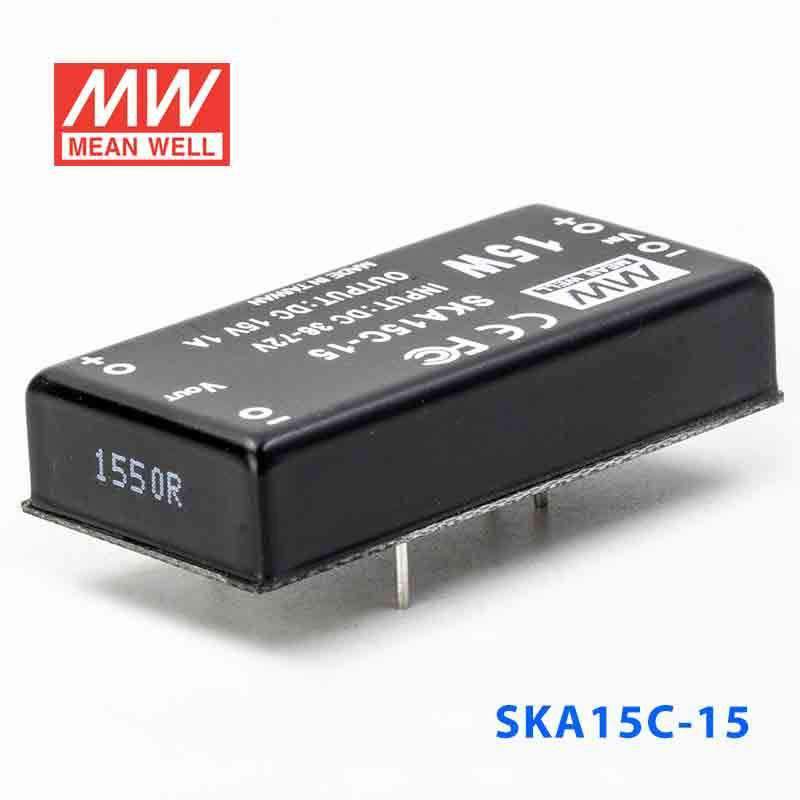

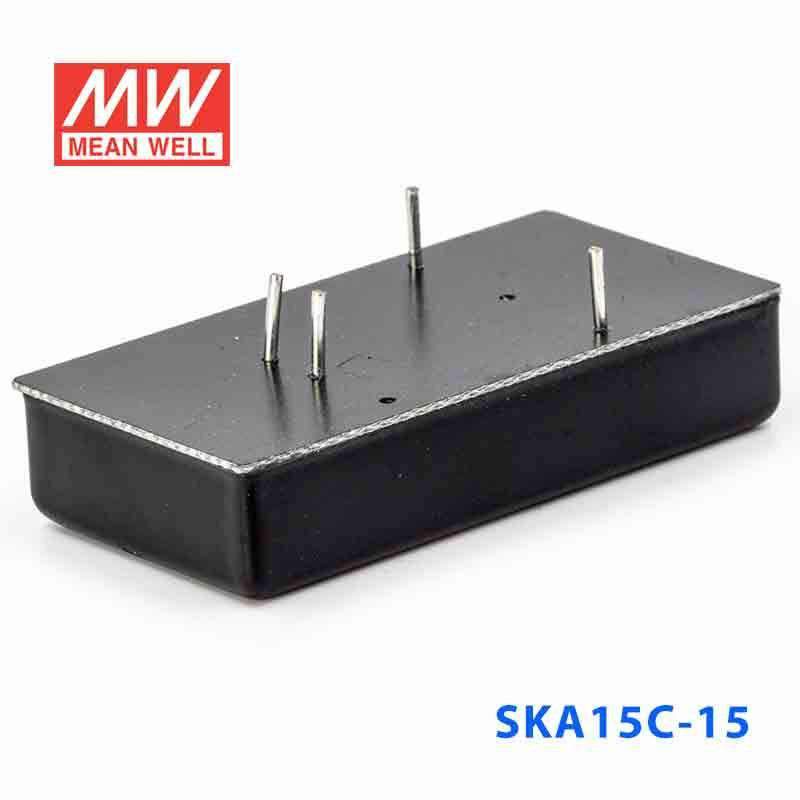

Mean Well SKA15C-15 DC-DC Converter - 15W - 36~72V in 15V out
Description
Description
The SKA15C is a 15W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKA15C-15 for a 15V industrial control or instrumentation circuit?
Yes, if the source is within 36-72VAC and the load needs constant 15V output. The converter is rated for 15W and up to 1A, so it suits lower-power 15V control and instrumentation circuits within that limit.
Is this a good fit for 15V embedded boards or analog modules in automation equipment?
It can be used where the electronics require a regulated 15V constant-voltage supply and the total load stays at or below 1A. Its compact size of 50.8 × 25.4 × 11.27 mm also helps in dense embedded or panel designs.
Can the SKA15C-15 power 15V signal-conditioning or interface hardware?
It is suitable for 15V constant-voltage hardware as long as the total draw does not exceed 15W. For signal-conditioning or interface hardware, the key check is that the combined load stays within the 1A output rating.
Would this converter work for a small 15V control subsystem inside a machine or cabinet?
Yes, for smaller 15V subsystems that need constant voltage and fit inside the 15W, 1A output envelope. The unit is also lightweight at 0.032 kg, which can help where low mass and compact dimensions matter.
What is the difference between the SKA15C-15 and the other SKA15C models?
All SKA15C versions listed here are 15W converters with the same 36-72VAC input range. The difference is output: SKA15C-033 is 3.3V at 3A, SKA15C-05 is 5V at 3A, SKA15C-12 is 12V at 1.25A, and SKA15C-15 is 15V at 1A.
