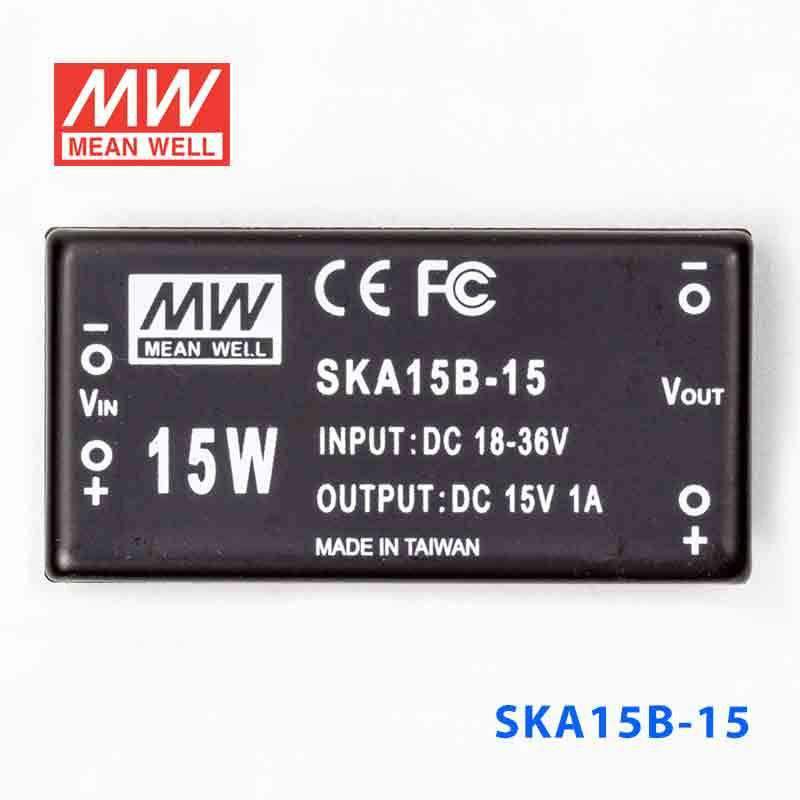

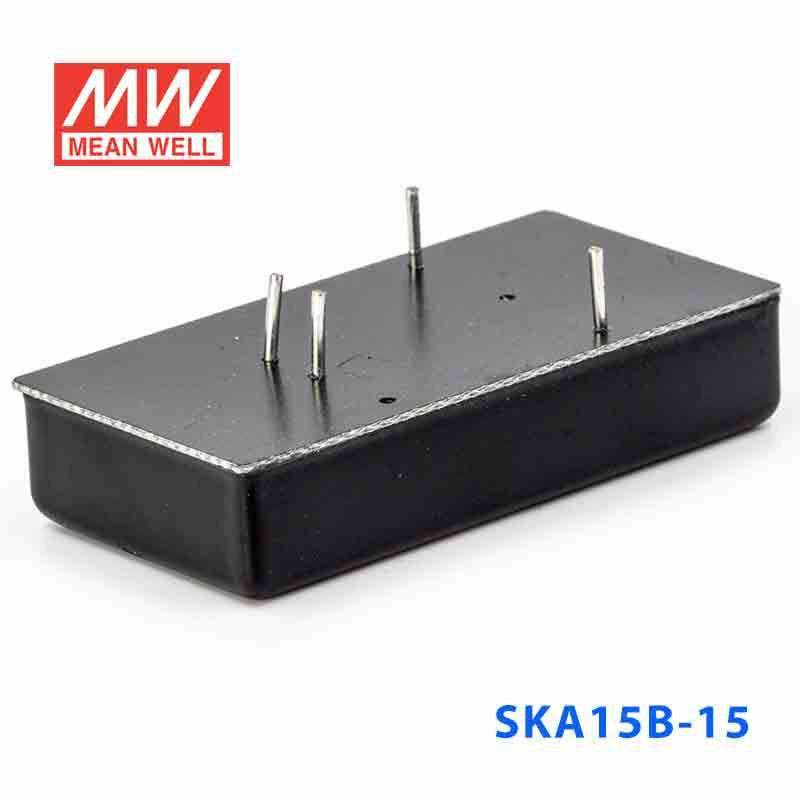

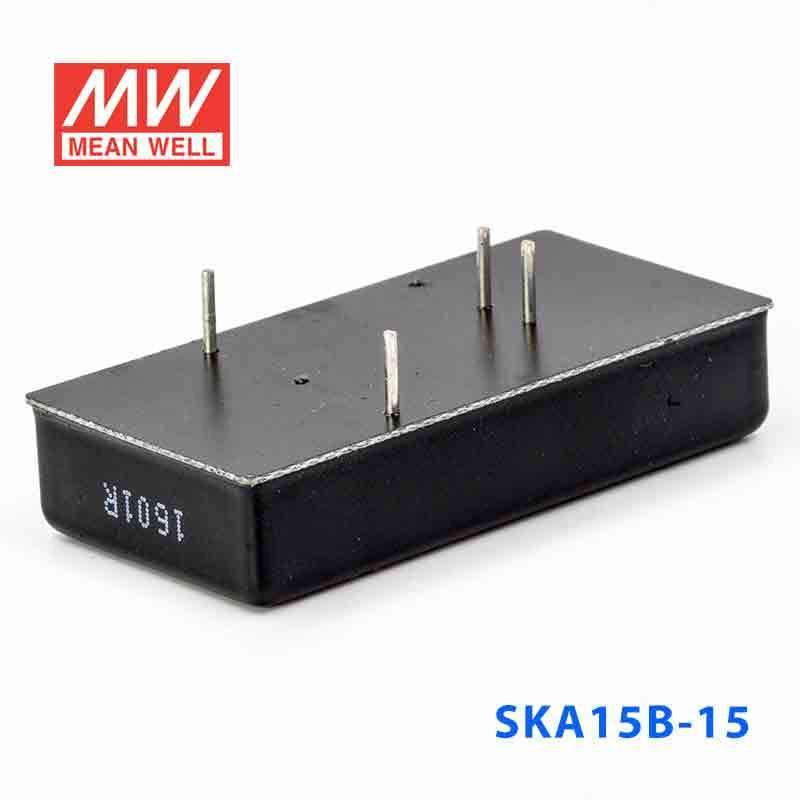

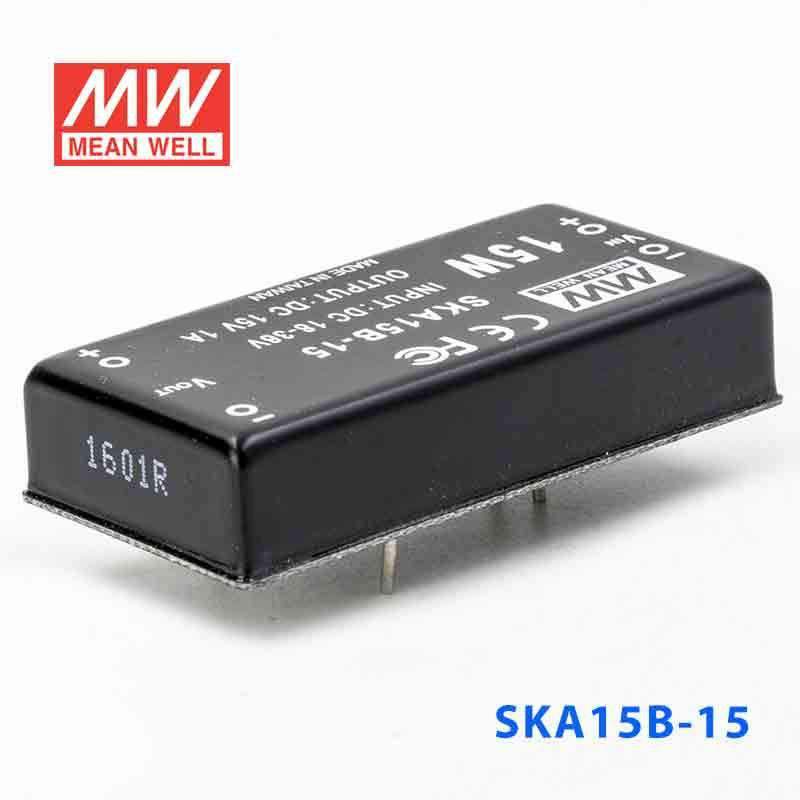

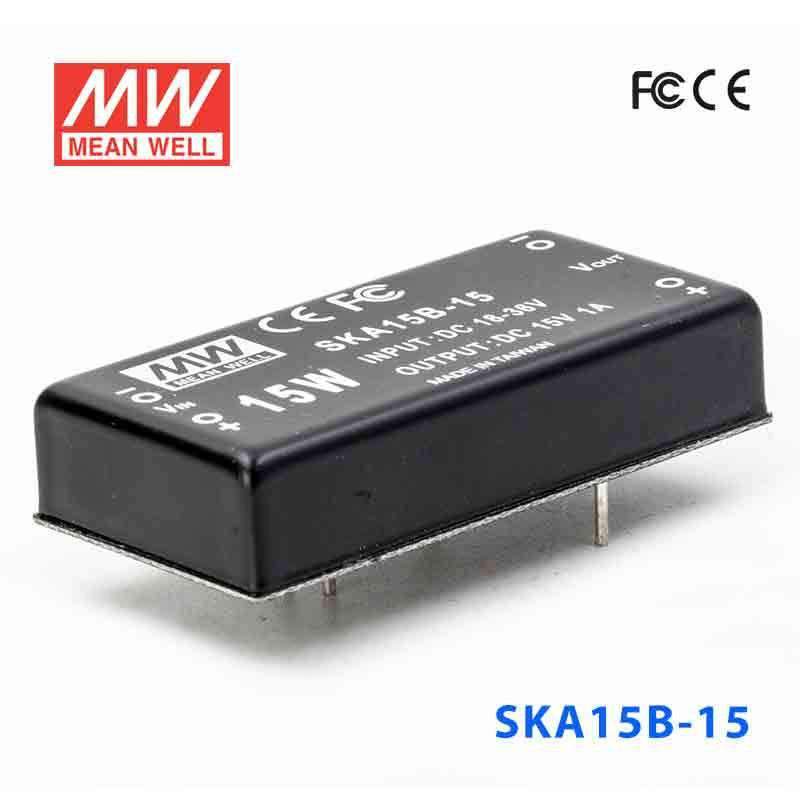

Mean Well SKA15B-15 DC-DC Converter - 15W - 18~36V in 15V out
Description
Description
The SKA15B is a 15W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKA15B-15 for a 15V industrial instrument or controller?
This converter provides a constant 15V output at up to 1A, with 15W total power. It is appropriate for 15V electronics that stay within that 1A / 15W limit and use the listed 18-36VAC input range.
Is the SKA15B-15 suitable for 15V analog or signal-processing circuits in automation equipment?
It can be used where the load requires regulated 15V and does not exceed 1A. The constant-voltage output makes it relevant for 15V electronics rather than variable-output applications.
Can this model support compact 15V subsystems inside embedded or test equipment?
It is suited to compact 15V loads because it combines a 15W output rating with a 50.8 × 25.4 × 11.27 mm package. Buyers should confirm the subsystem remains within 1A output current and the listed 18-36VAC input window.
How well does the SKA15B-15 handle temperature exposure in industrial environments?
The specified operating range is -40°C to +71°C, which supports use across a broad span of indoor industrial temperatures. Since no IP rating is provided, the specs do not state protection for outdoor exposure, washdown, or wet locations.
What changes across the SKA15B series besides the part number?
The main difference is the output rating while the family keeps the same 15W power class and 18-36VAC input range. SKA15B-033 is 3.3V at 3A, SKA15B-05 is 5V at 3A, SKA15B-12 is 12V at 1.25A, and SKA15B-15 is 15V at 1A.
