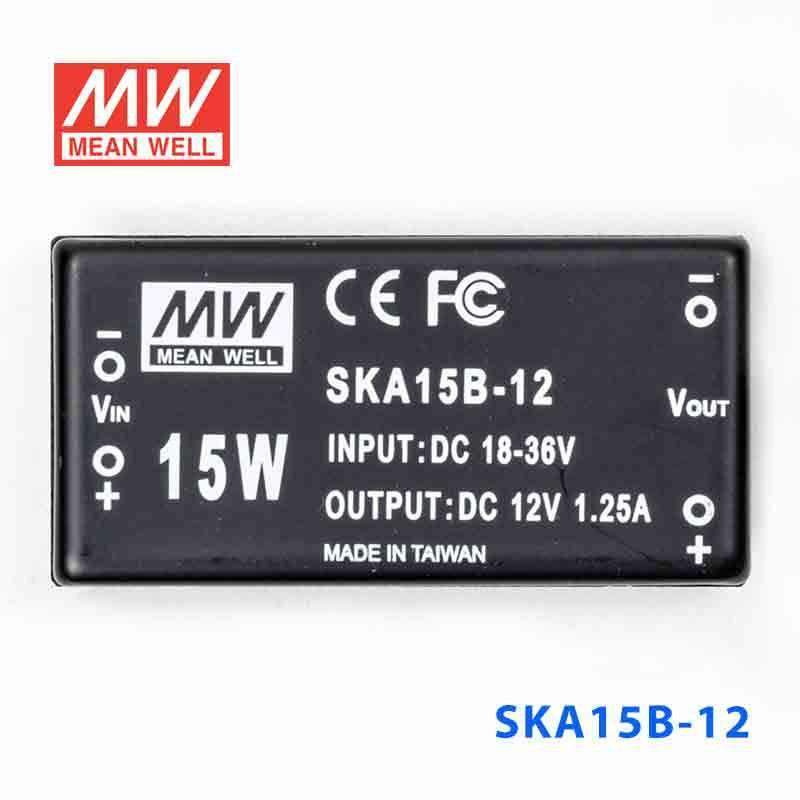

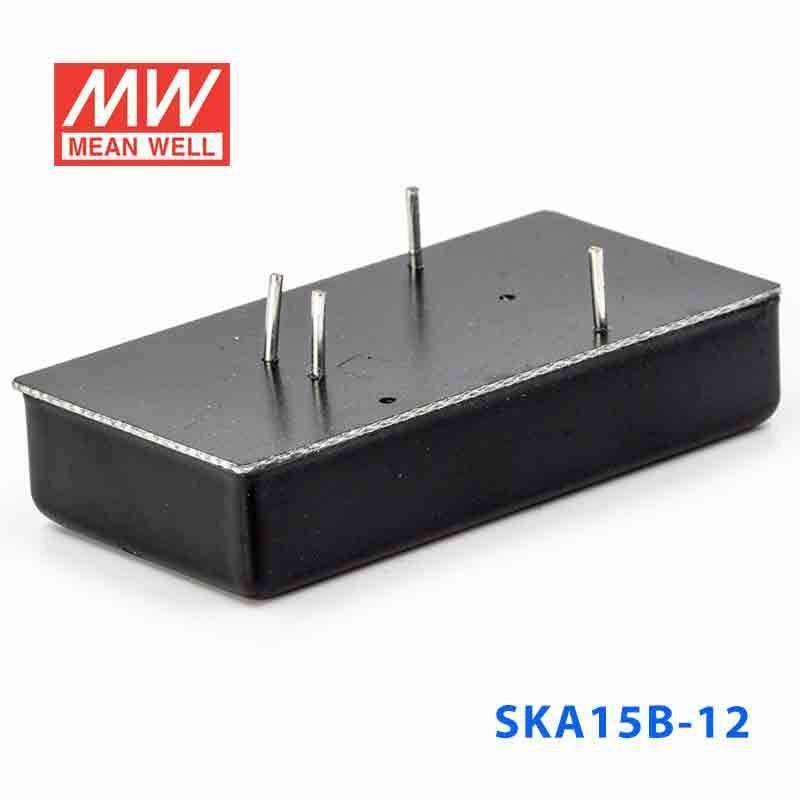

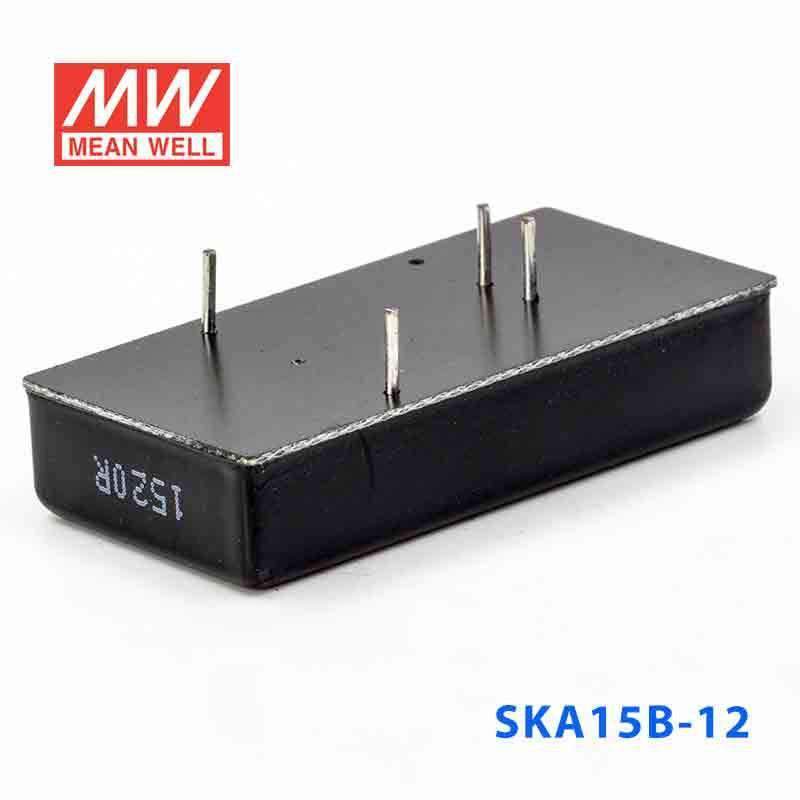

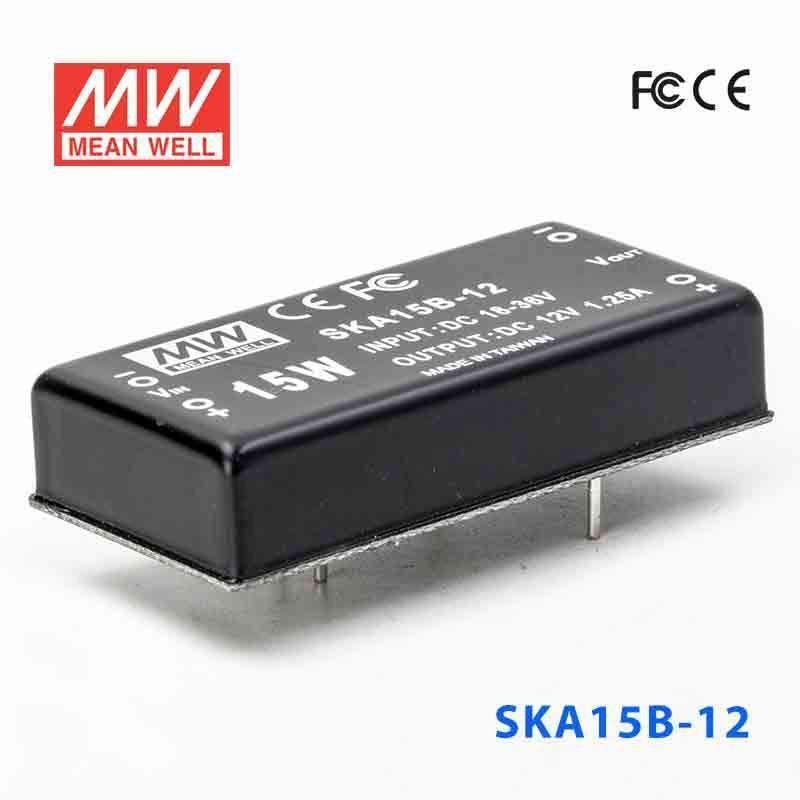

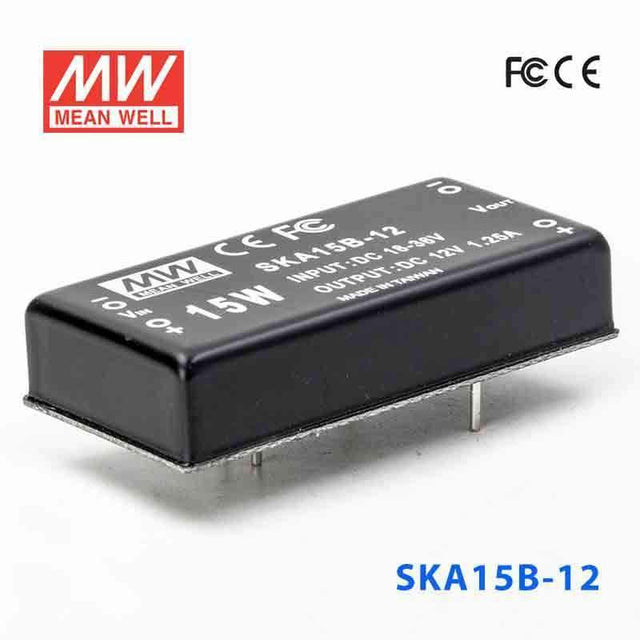

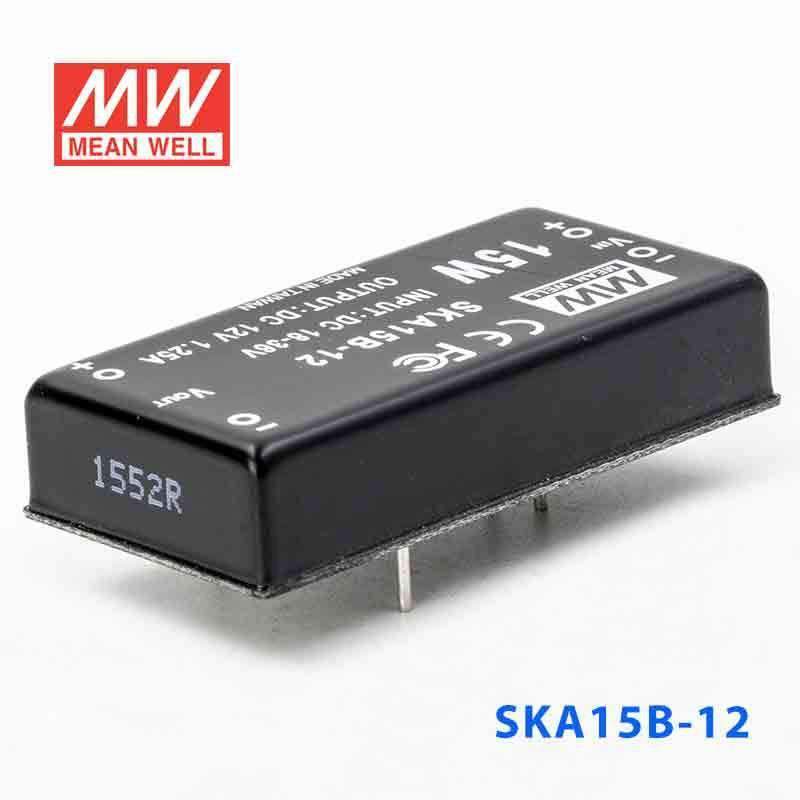

Mean Well SKA15B-12 DC-DC Converter - 15W - 18~36V in 12V out

$20.61 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

2:1 wide input range
4:1 wide input range(option)
1000VDC I/O isolation
3000VDC I/O isolation (option)
Built-in EMI filter
Protection: Short circuit / Overload
Cooling by free air convection
Six-sided shield metal case
100% full load burn-in test
Low cost, high reliability
2 years warranty

General Specification

Voltage set point accuracy ±2% (max.)
Line regulation ±0.2% (max.)
Load regulation ±0.5% (max.)@10~100% load
Overload protection 110%~250%, auto-recovery
Efficiency 82% (typical)
Short circuit protection Continuous, auto-recovery
I/O isolation voltage 1000VDC (min.)
I/O isolation resistance 100MQ(min.)@500VDC
Working temperature -40~+71°C (refer to output derating curve)
Storage temperature -40°C to +105°C
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient ±0.03% / °C (max.)
Dimension (LxWxH) (mm) 2" x 1" x 0.44"
Case material Six-sided shield metal case

Specifications

  • Brand
    Mean Well
  • Series
    SKA Series
  • Power Rating
    15 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    1.25 Ampere
  • Input Voltage
    18V~36V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~71°C
  • Warranty
    2 Year
  • Length
    2 in
  • Width
    1 in
  • Height
    0.44 in
  • Weight
    0.07 lb

File Downloads

::specification::
