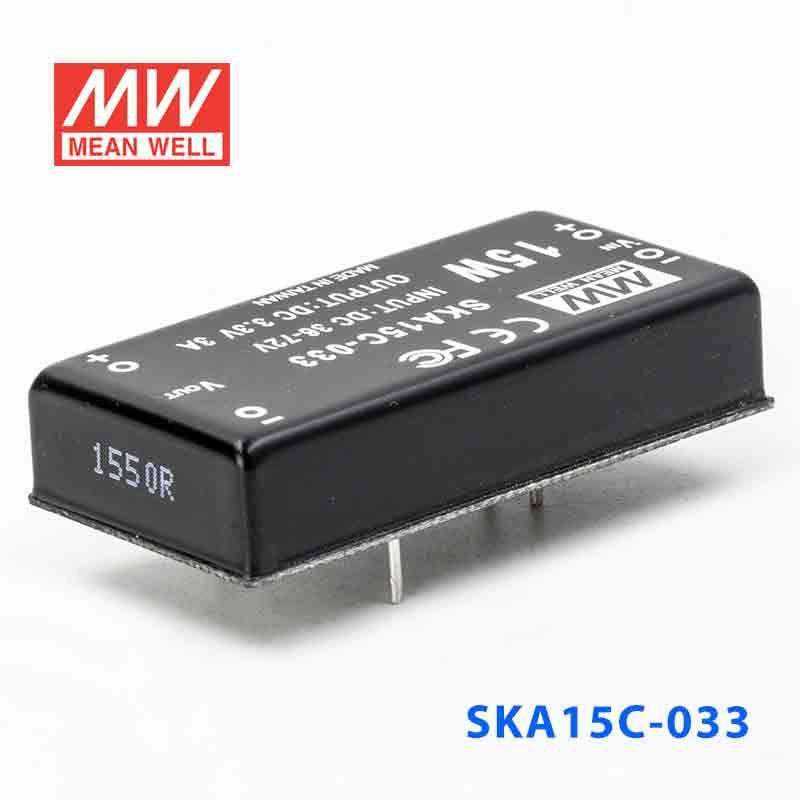

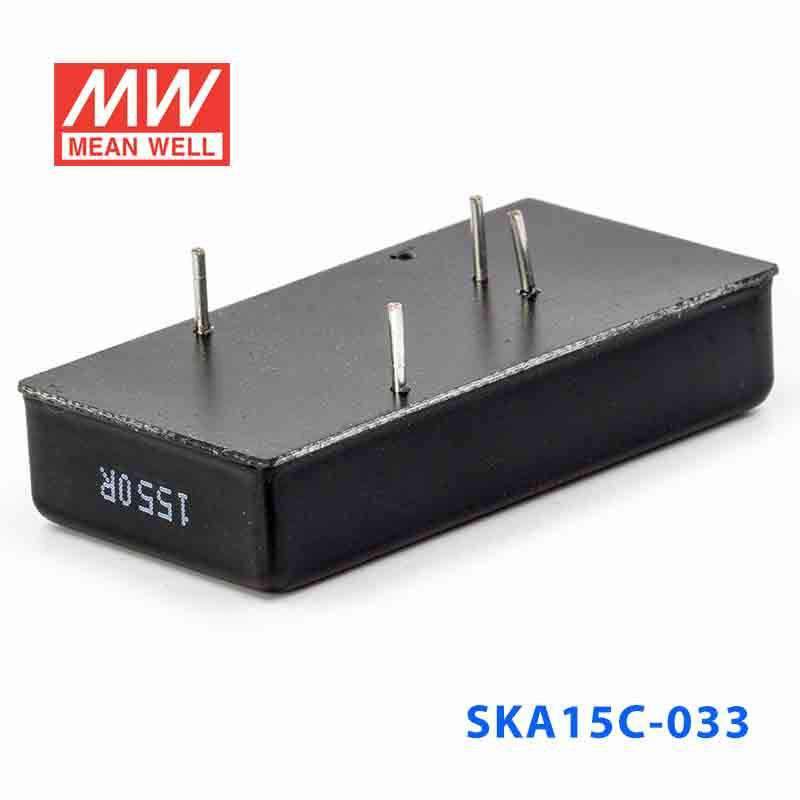

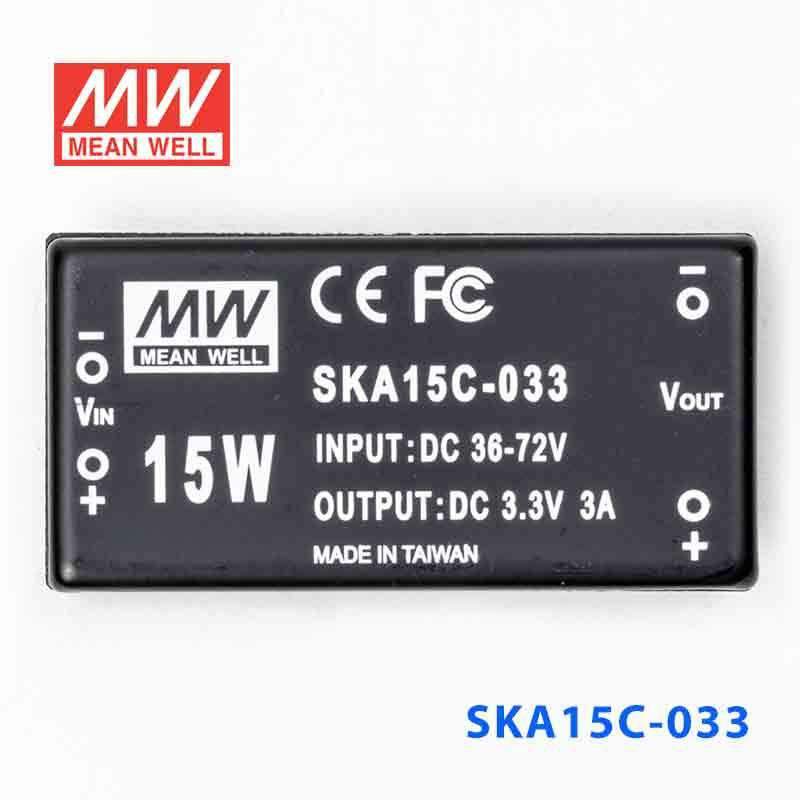

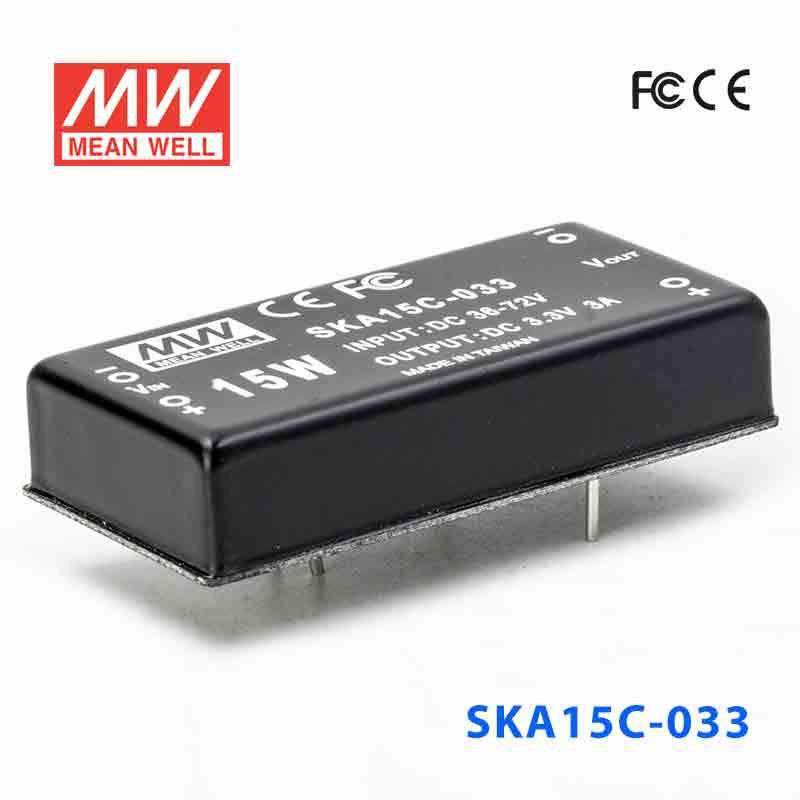

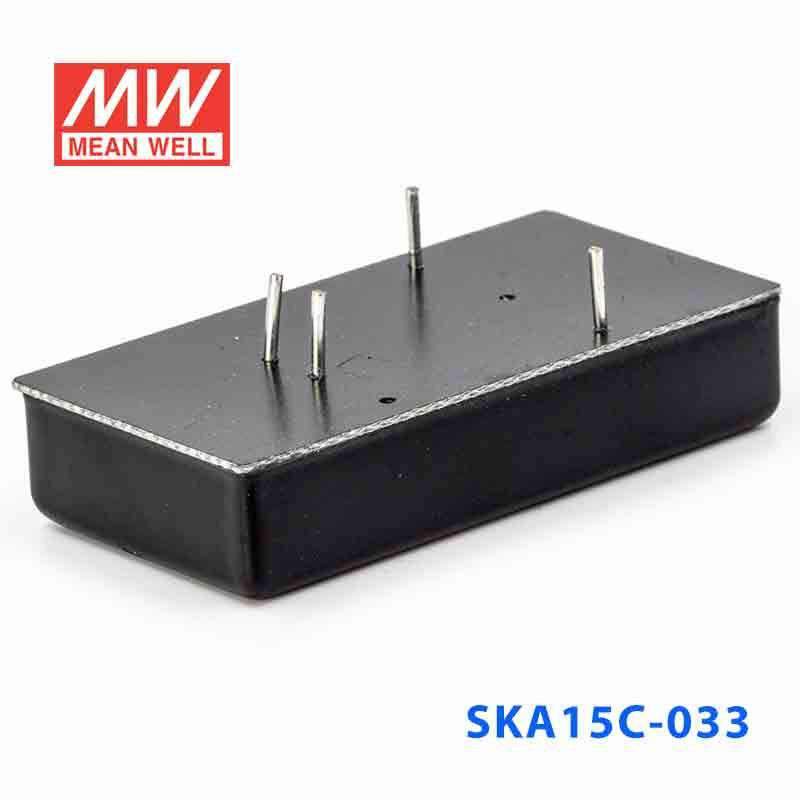

Mean Well SKA15C-033 DC-DC Converter - 15W - 36~72V in 3.3V out
Description
Description
The SKA15C is a 15W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating15 Watt
-
Output Voltage3.3 Volt
-
Rated Current3 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKA15C-033 to power 3.3V logic in industrial or embedded equipment?
This model outputs constant 3.3V at up to 3A, with 15W total power. It is suitable for 3.3V logic, controllers, or interface electronics that stay within that limit and use the listed 36-72VAC input range.
Is the SKA15C-033 a fit for 3.3V communication boards or processor modules in automation systems?
It can fit 3.3V electronics that need regulated constant-voltage output and draw no more than 3A. The match depends on the required 3.3V rail, the 15W power ceiling, and the listed 36-72VAC source range.
Can this converter be used for compact 3.3V control electronics in higher-input systems?
Yes, for applications that need 3.3V output from the listed 36-72VAC input range and stay within 3A output current. Its 50.8 × 25.4 × 11.27 mm dimensions are useful where board space or enclosure space is constrained.
Is the SKA15C-033 suitable for outdoor cabinets or only protected enclosures?
The operating temperature range is specified as -40°C to +71°C, which supports a wide temperature span. No IP rating appears in the provided specs, so the product data does not state outdoor, rain, or dust-exposed suitability.
How does SKA15C-033 differ from the other SKA15C models?
The SKA15C series shares the same 15W rating and 36-72VAC input range, with output differences between models. SKA15C-033 is 3.3V at 3A, SKA15C-05 is 5V at 3A, SKA15C-12 is 12V at 1.25A, and SKA15C-15 is 15V at 1A.
