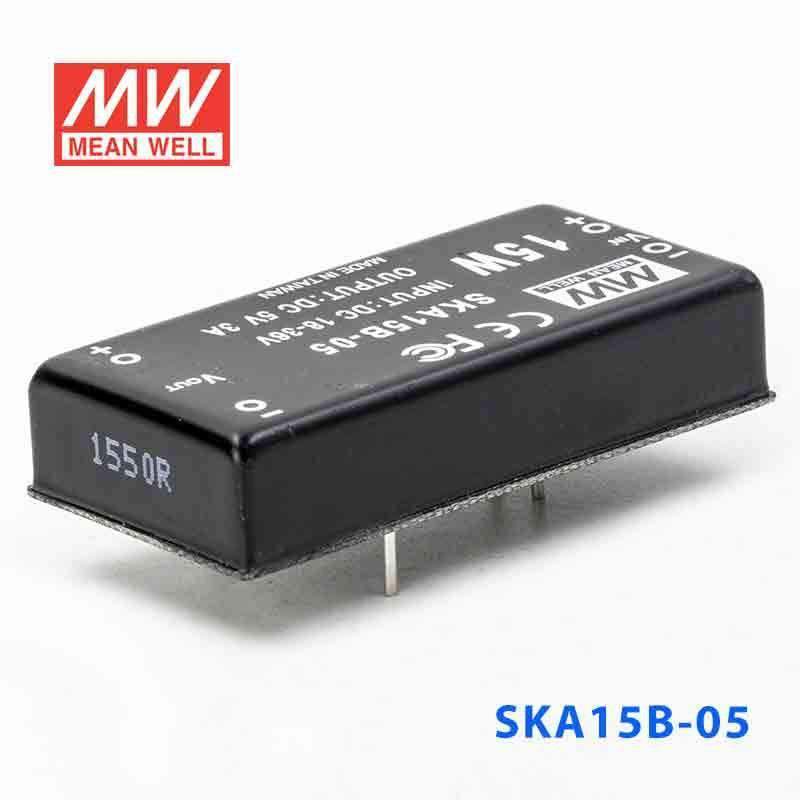

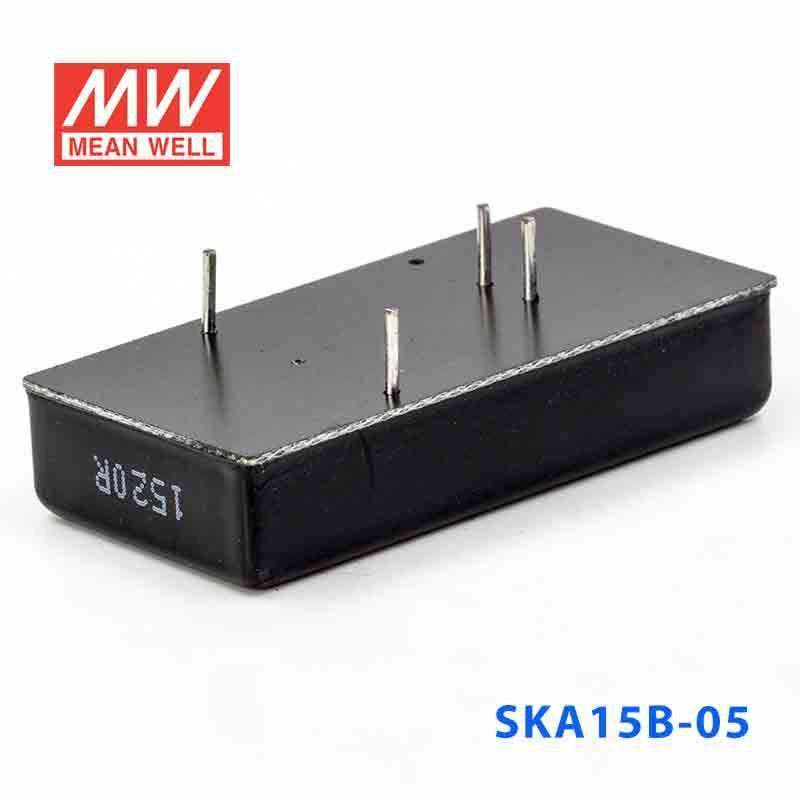

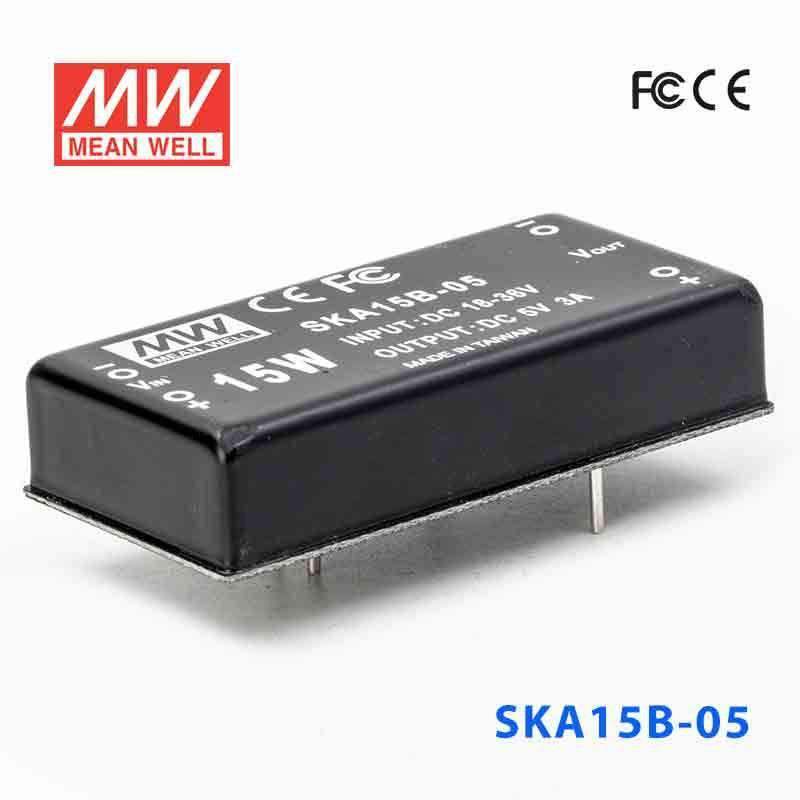

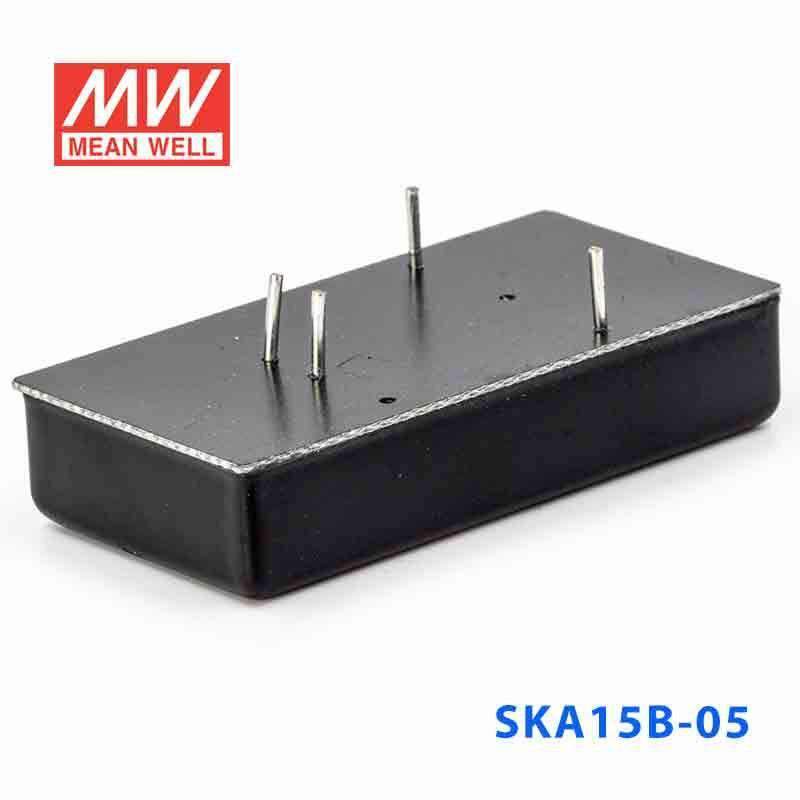

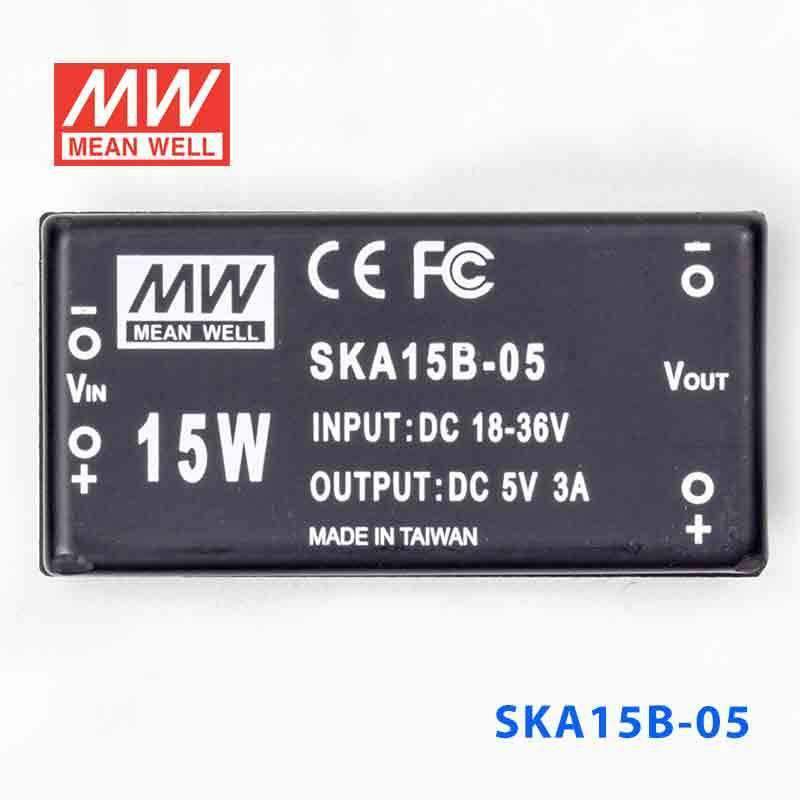

Mean Well SKA15B-05 DC-DC Converter - 15W - 18~36V in 5V out
Description
Description
The SKA15B is a 15W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKA15B-05 to power a 5V PLC accessory or control module?
This model provides a constant 5V output at up to 3A with 15W total power. It is a fit for control electronics that require regulated 5V and stay within that 3A / 15W output limit, using the listed 18-36VAC input range.
Is the SKA15B-05 suitable for embedded controllers or single-board computers that need 5V power?
It can be used for embedded hardware that requires constant 5V and draws no more than 3A. Buyers should match both the 5V output and the 15W maximum power to the load, and confirm the source falls within the listed 18-36VAC input range.
Can this converter support 5V industrial sensors or small HMI logic circuits?
It is intended for constant-voltage 5V loads up to 3A, so it can suit low-voltage industrial electronics that stay inside that output limit. The compact 50.8 × 25.4 × 11.27 mm size also helps where control hardware space is limited.
Is the SKA15B-05 appropriate for indoor control cabinets or demanding temperature environments?
The specified operating temperature range is -40°C to +71°C, which supports use in a wide range of indoor industrial conditions. No IP rating is listed in the provided specs, so the product data does not state outdoor or wet-location suitability.
What is the difference between SKA15B-05 and the other SKA15B models?
All SKA15B versions are 15W converters with the same 18-36VAC input range, but their outputs differ. SKA15B-033 is 3.3V at 3A, SKA15B-05 is 5V at 3A, SKA15B-12 is 12V at 1.25A, and SKA15B-15 is 15V at 1A.
