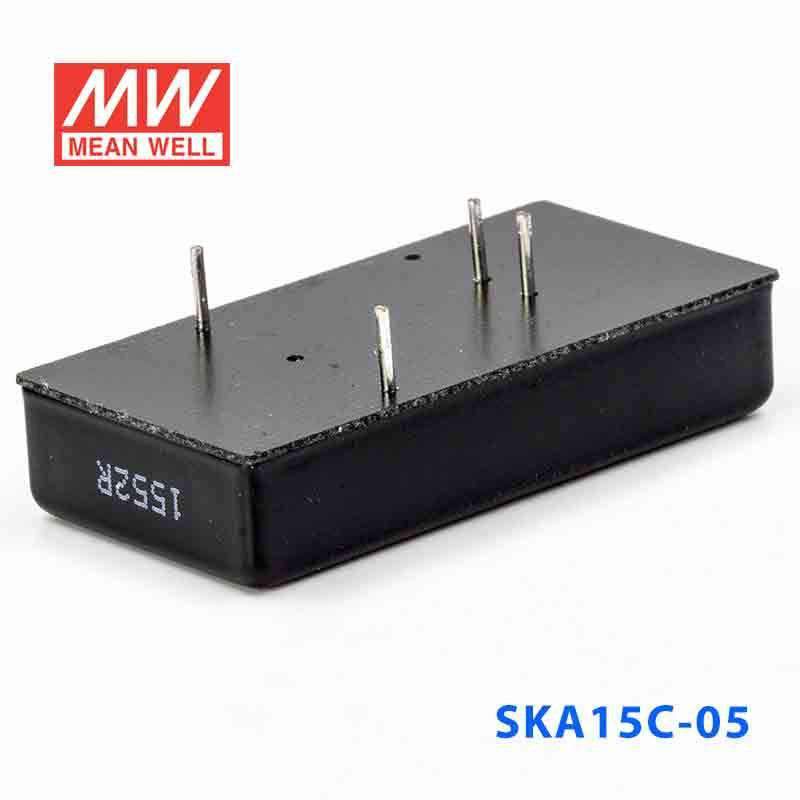

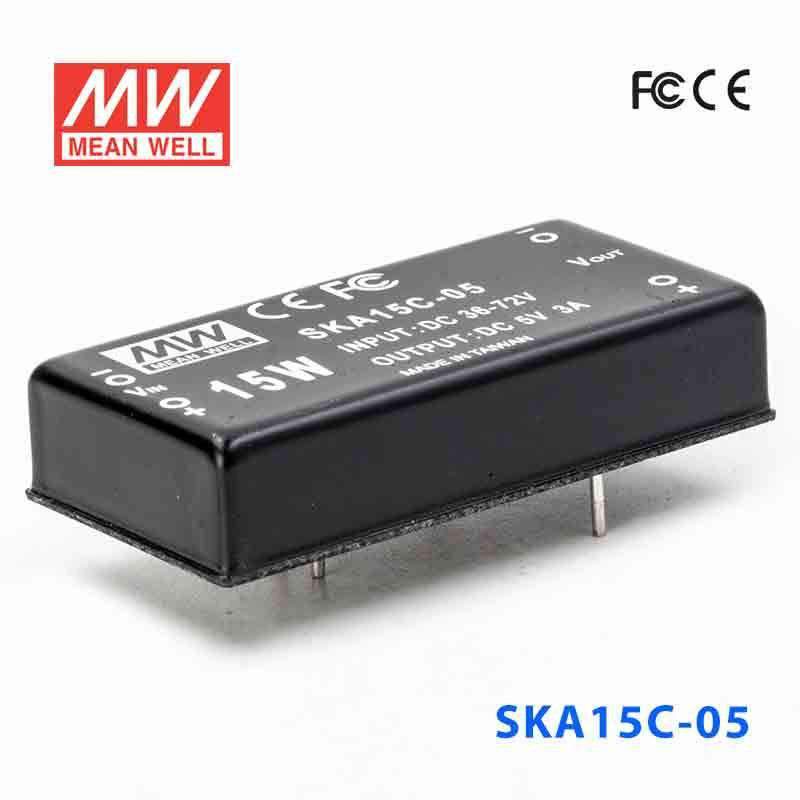

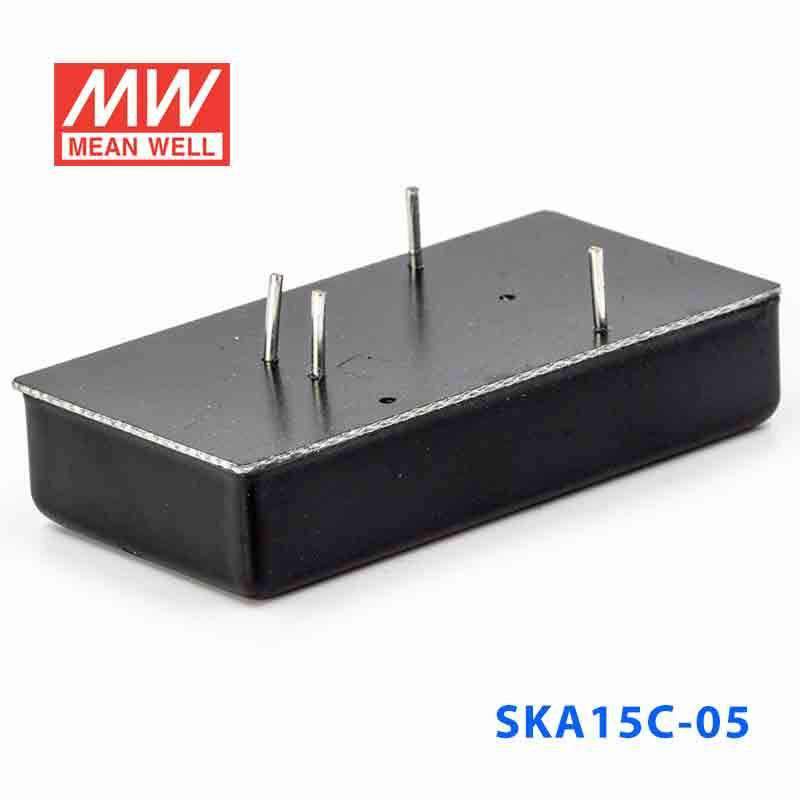

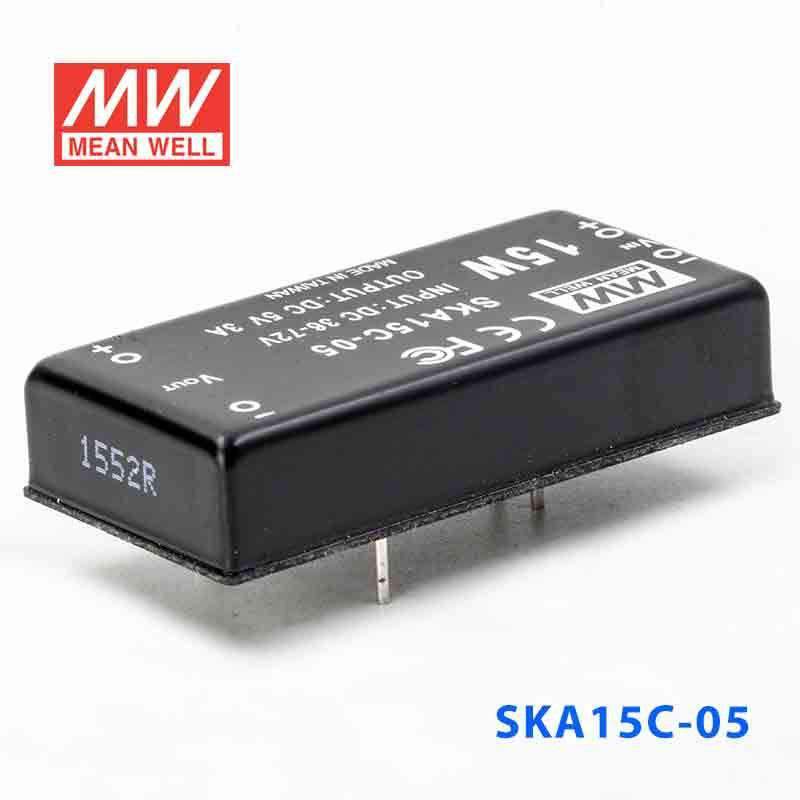

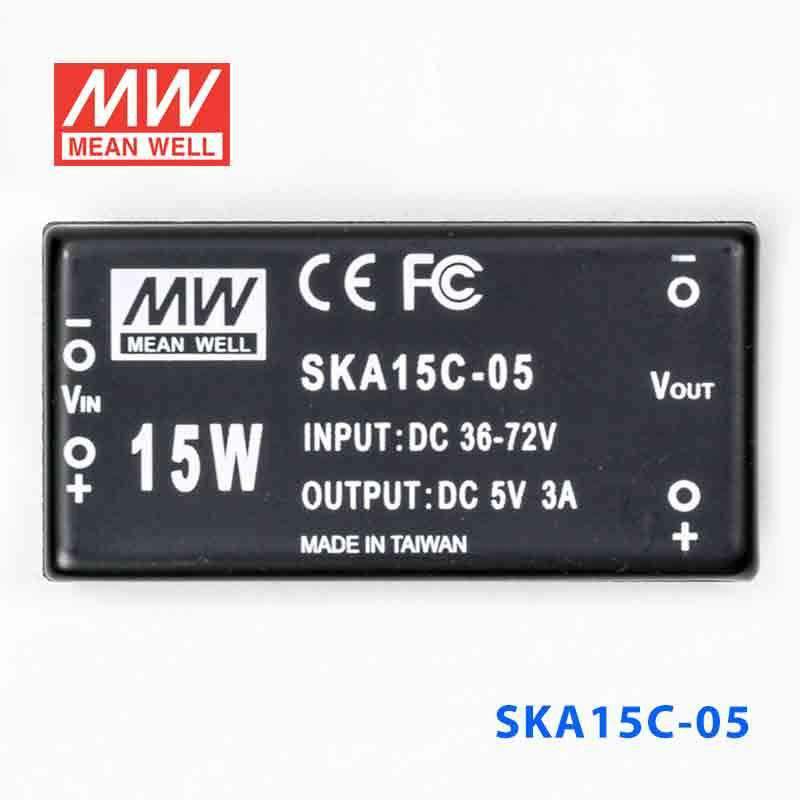

Mean Well SKA15C-05 DC-DC Converter - 15W - 36~72V in 5V out
The SKA15C is a 15W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
Can I use the SKA15C-05 for 5V industrial controllers or interface electronics?
This converter supplies constant 5V output at up to 3A with 15W total power. It is appropriate for 5V control or interface loads that stay within that output limit and use the listed 36-72VAC input range.
Is the SKA15C-05 suitable for powering 5V embedded boards in equipment with a higher input range?
It can be used where the embedded board needs regulated 5V and the load is no more than 3A. The main selection checks are the 5V constant-voltage output, the 15W maximum power, and the listed 36-72VAC input specification.
Can this model support 5V sensors, gateways, or small automation electronics?
Yes, if those 5V loads do not exceed 3A output current or 15W total power. Its compact 50.8 × 25.4 × 11.27 mm size can also be useful in dense equipment layouts.
Is the SKA15C-05 intended for harsh indoor environments or exposed outdoor use?
The product is rated for operation from -40°C to +71°C, so the temperature range supports demanding indoor industrial conditions. Because no IP rating is listed, the provided specs do not identify it as sealed or outdoor-rated.
What are the output differences within the SKA15C family?
These models share the same 36-72VAC input range and 15W power rating, but their outputs are different. SKA15C-033 is 3.3V at 3A, SKA15C-05 is 5V at 3A, SKA15C-12 is 12V at 1.25A, and SKA15C-15 is 15V at 1A.
