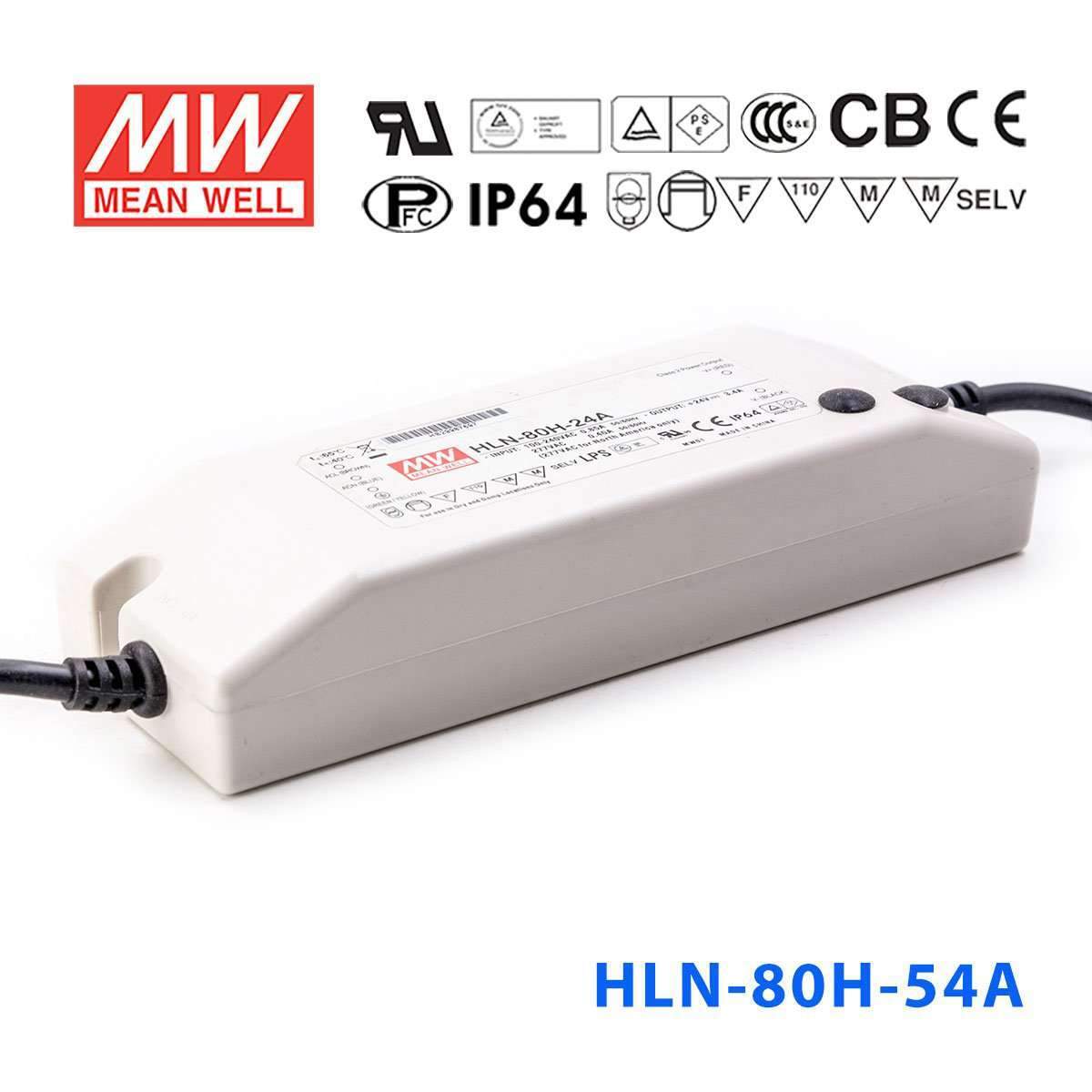

Mean Well HLN-80H-54A Power Supply 80W 54V - IP64, Adjustable 1.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-80H-54A Power Supply 80W 54V - IP64, Adjustable 1.5A
The HLN-80H is a 80W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent ; IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating81 Watt
-
Output Voltage54 Volt
-
Rated Current1.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
Can I use the HLN-80H-54A for high-voltage constant-current LED signage?
Yes, it is suitable for signage applications when the LED load requires constant current at 1.5A. The connected load must operate within the 32-54V constant-current range and stay within the 81W output rating.
Is the HLN-80H-54A suitable for long constant-current lighting strings?
It can be a fit for longer constant-current LED strings because the driver supports up to 54V in its 32-54V range. The full lighting string still needs to match 1.5A operation and remain at or below 81W total load.
Can this 54V model be used with constant-current LED strip or linear lighting systems?
Yes, if the strip or linear light engine is built for constant-current use at 1.5A and falls within 32-54V. This model is not for constant-voltage LED strips, so the product’s operating mode needs to match the driver’s constant-current output.
How many meters of LED strip can the HLN-80H-54A run?
Use the power rating for the estimate: 81 ÷ strip rated watts per meter = estimated maximum meters. Check your strip rated power per meter, and confirm the strip is a constant-current product compatible with the 32-54V operating range.
Can the HLN-80H-54A handle outdoor weather exposure?
The IP64 rating supports use where dust protection and resistance to splashing water are required, which fits many outdoor lighting and sign cabinets. It is rated for operation from -40°C to +50°C, so those ambient limits should be observed.
