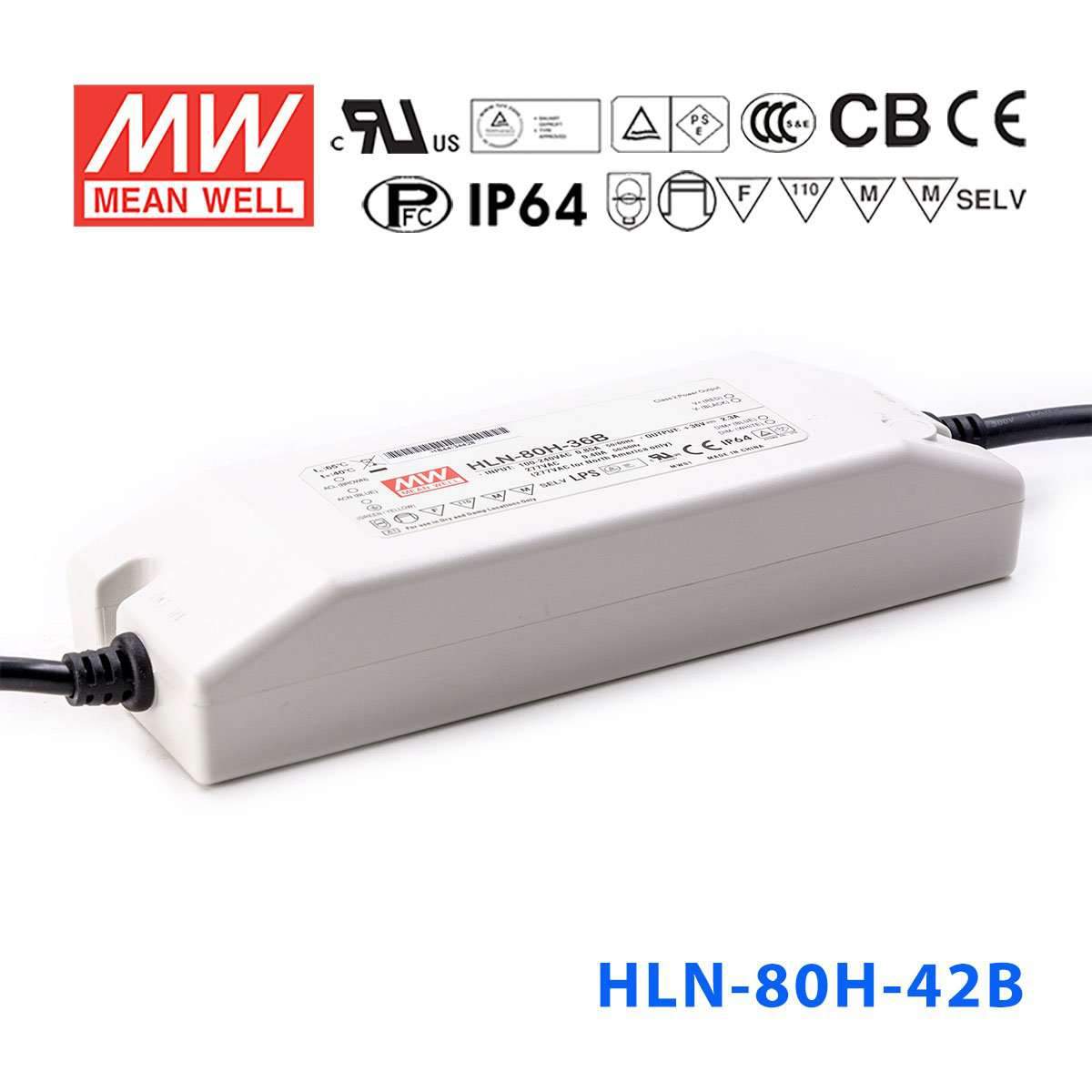

Mean Well HLN-80H-42B Power Supply 80W 42V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-80H-42B Power Supply 80W 42V - IP64, Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 181x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating81.9 Watt
-
Output Voltage42 Volt
-
Rated Current1.95 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-42B for constant-current LED signage modules?
Yes, this driver is intended for constant-current LED loads and is listed as suitable for signage applications. It provides 1.95A in a 25-42V constant-current range, so the sign module or module string needs to operate within that range.
Is the HLN-80H-42B suitable for architectural or accent lighting fixtures that need constant current?
It can be a fit for constant-current architectural or accent lighting fixtures that run between 25V and 42V at 1.95A. The driver is rated at 81.9W, so the total fixture load needs to stay within that output range and power limit.
Can this 42V driver be used with a constant-current LED strip system?
It may work with a constant-current LED strip system if the strip is designed for 1.95A operation within the 25-42V constant-current range. This is not a constant-voltage driver, so the strip or linear module must match the driver’s constant-current operating mode.
How much LED strip can the HLN-80H-42B support?
The maximum output power is 81.9W, so the estimate is 81.9 ÷ strip rated watts per meter = maximum meters. For example, the math always starts from 81.9W, but you should check your strip rated power per meter and confirm the strip is designed for constant-current operation within 25-42V.
Can the HLN-80H-42B be used outdoors or in damp locations?
Its IP64 rating means protection against dust ingress and splashing water, so it is suited to wet or outdoor-adjacent environments where direct immersion is not expected. The operating temperature range is -40°C to +50°C, which also supports use in a wide range of ambient conditions.
