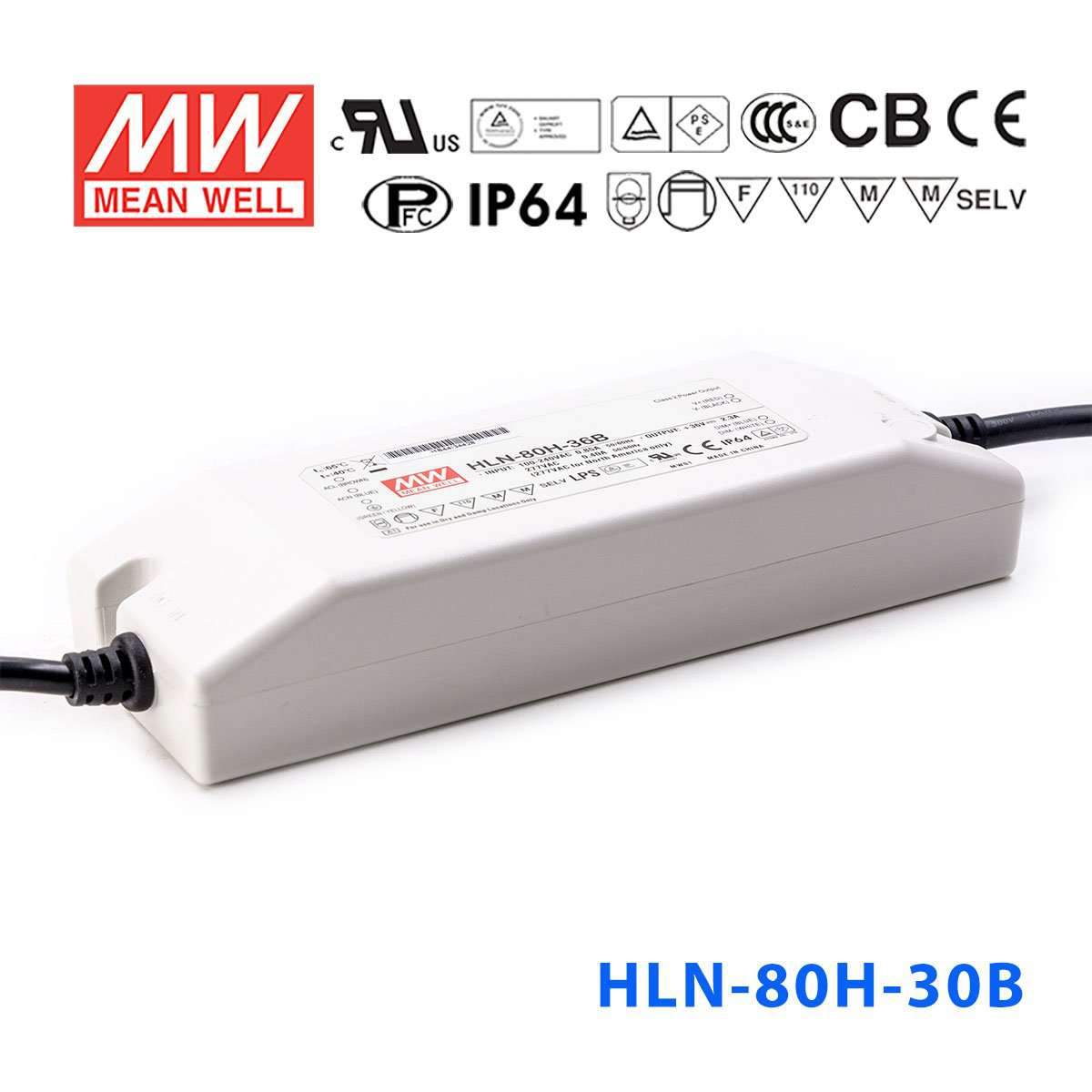

Mean Well HLN-80H-30B Power Supply 80W 30V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-80H-30B Power Supply 80W 30V - IP64, Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 181x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating81 Watt
-
Output Voltage30 Volt
-
Rated Current2.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HLN-80H-30B be used for illuminated sign cabinets or channel letter power?
Yes, this model is described as suitable for signage applications and provides a 30V, 2.7A constant-current output. The LED load needs to operate within the 18-30V CC range and remain within the 81W rating.
Is this a good choice for 30V display or retail lighting modules?
It can be used with 30V constant-current lighting modules that require up to 2.7A. The driver delivers up to 81W, so the fixture's electrical requirement must stay within that output limit.
Can I use this driver for damp or semi-exposed lighting locations?
The IP64 enclosure makes it appropriate for areas where the driver may be exposed to dust and splashing water rather than fully submerged conditions. Its operating range of -40°C to +50°C also supports use in cold and warm environments within that temperature window.
Will the HLN-80H-30B work with my 30V LED load?
It is intended for constant-current loads that operate from 18V to 30V and draw 2.7A. If your LED load is outside that 18-30V CC range or needs more than 81W, this is not the right match.
Is the HLN-80H-30B suitable for outdoor use?
It is suitable for outdoor placements where the driver needs IP64 protection against dust and splashing water. It should be used within the specified -40°C to +50°C operating temperature range.
