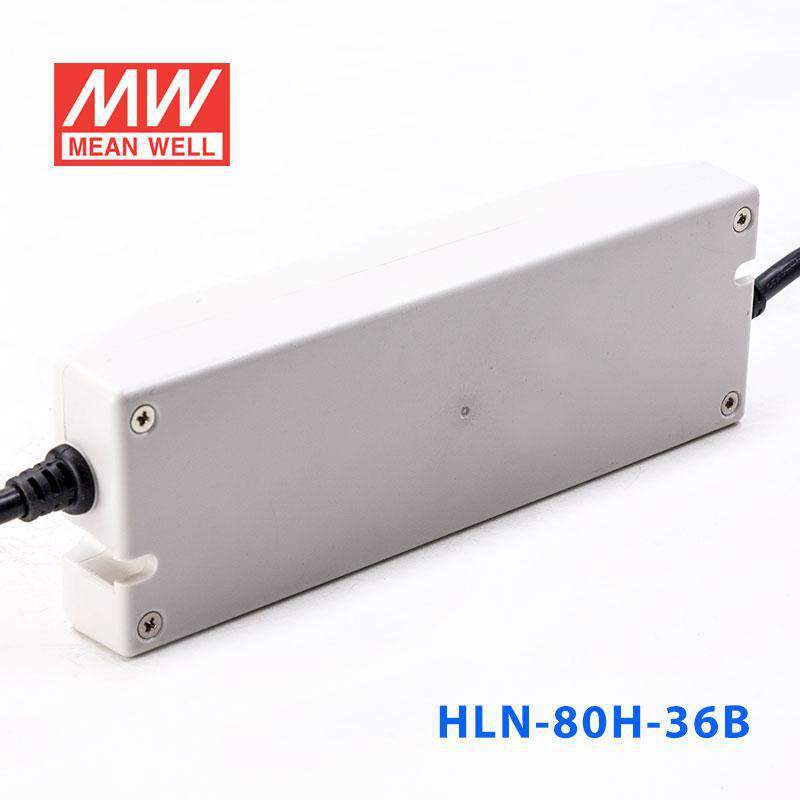

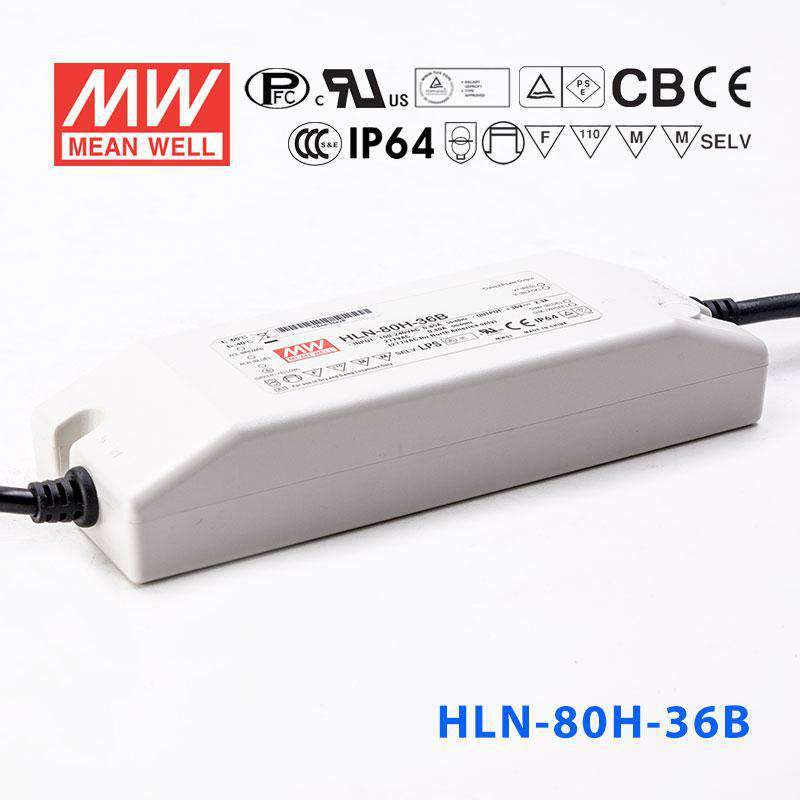

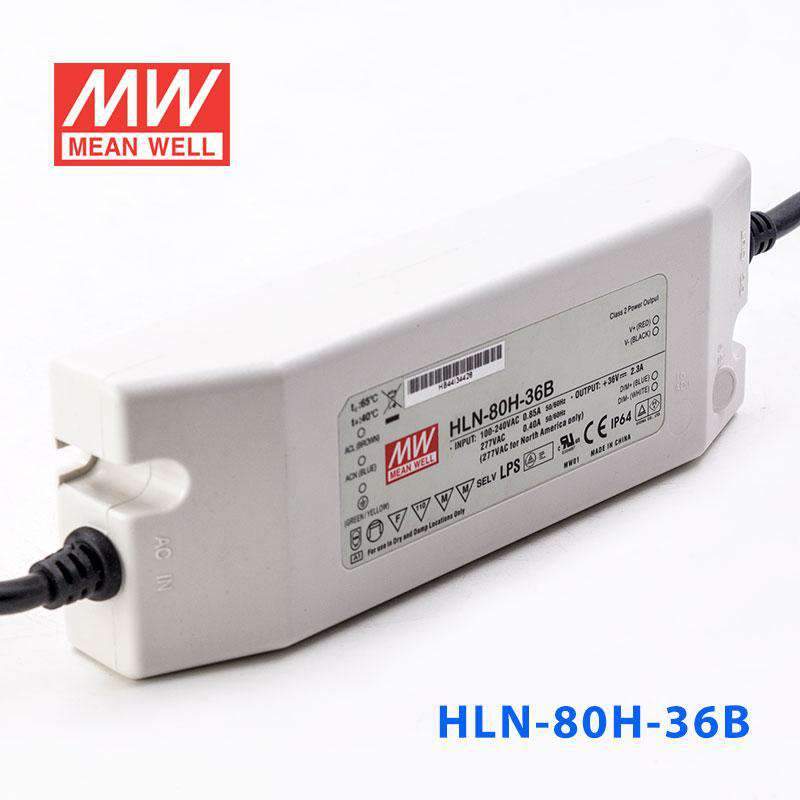

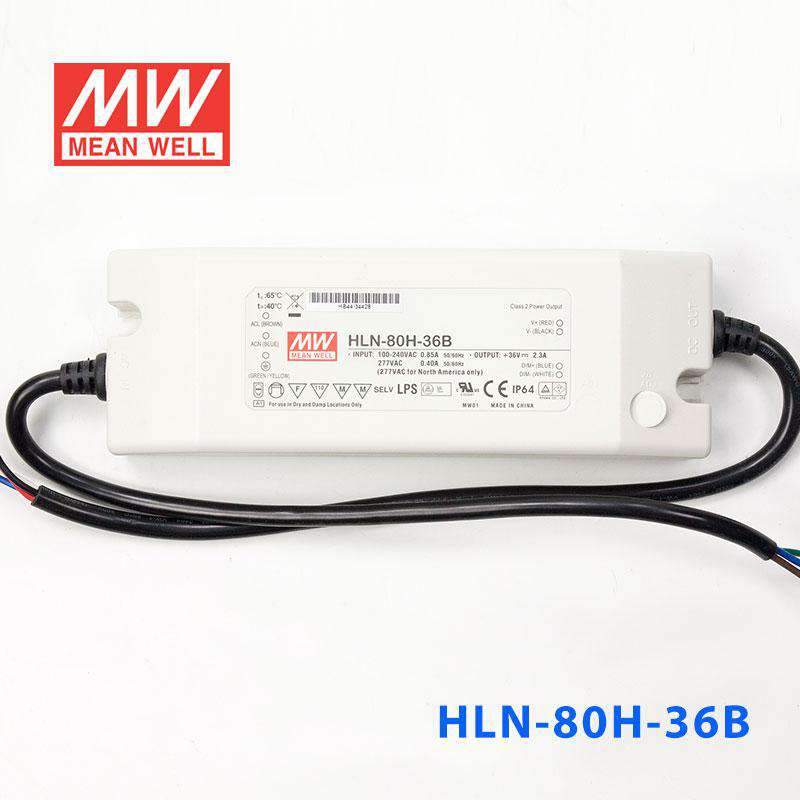

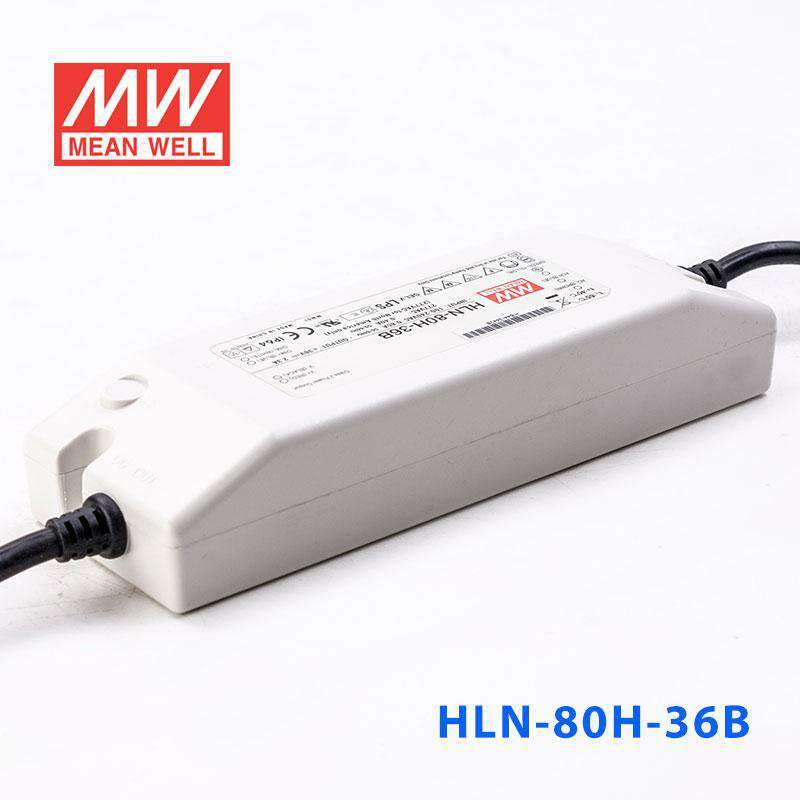

Mean Well HLN-80H-36B Power Supply 80W 36V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-80H-36B Power Supply 80W 36V - IP64, Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 181x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating82.8 Watt
-
Output Voltage36 Volt
-
Rated Current2.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HLN-80H-36B power 36V sign lighting modules?
Yes, it is listed as suitable for signage applications and supplies constant current at 2.3A with a 36V output. The LED load should fall within the 21-36V CC range and remain at or below 82.8W.
Is this model suitable for 36V retail, display, or perimeter lighting?
It can be, if the lighting system uses a 36V constant-current LED engine that requires 2.3A. The available power is 82.8W, so the full fixture load needs to stay within that rating.
Can I use this with a 36V constant-current LED strip system?
It can work with a 36V constant-current strip or module system that operates from 21V to 36V and draws 2.3A. It is not intended for loads outside that current and voltage window.
How much LED strip can the HLN-80H-36B run?
The driver is rated for 82.8W, so divide 82.8W by your strip's watts per meter to estimate the maximum theoretical length. The math is 82.8 ÷ strip W/m = max meters; check your strip rated power per meter and make sure it is a 36V load.
What are the main output differences across the HLN-80H family?
The sibling list includes 12V 60W 5A, 15V 75W 5A, 20V 80W 4A, 24V 81.6W 3.4A, 30V 81W 2.7A, 36V 82.8W 2.3A, 42V 81.9W 1.95A, 48V 81.6W 1.7A, and 54V 81W 1.5A versions. Each output is shown in both A and B variants.
