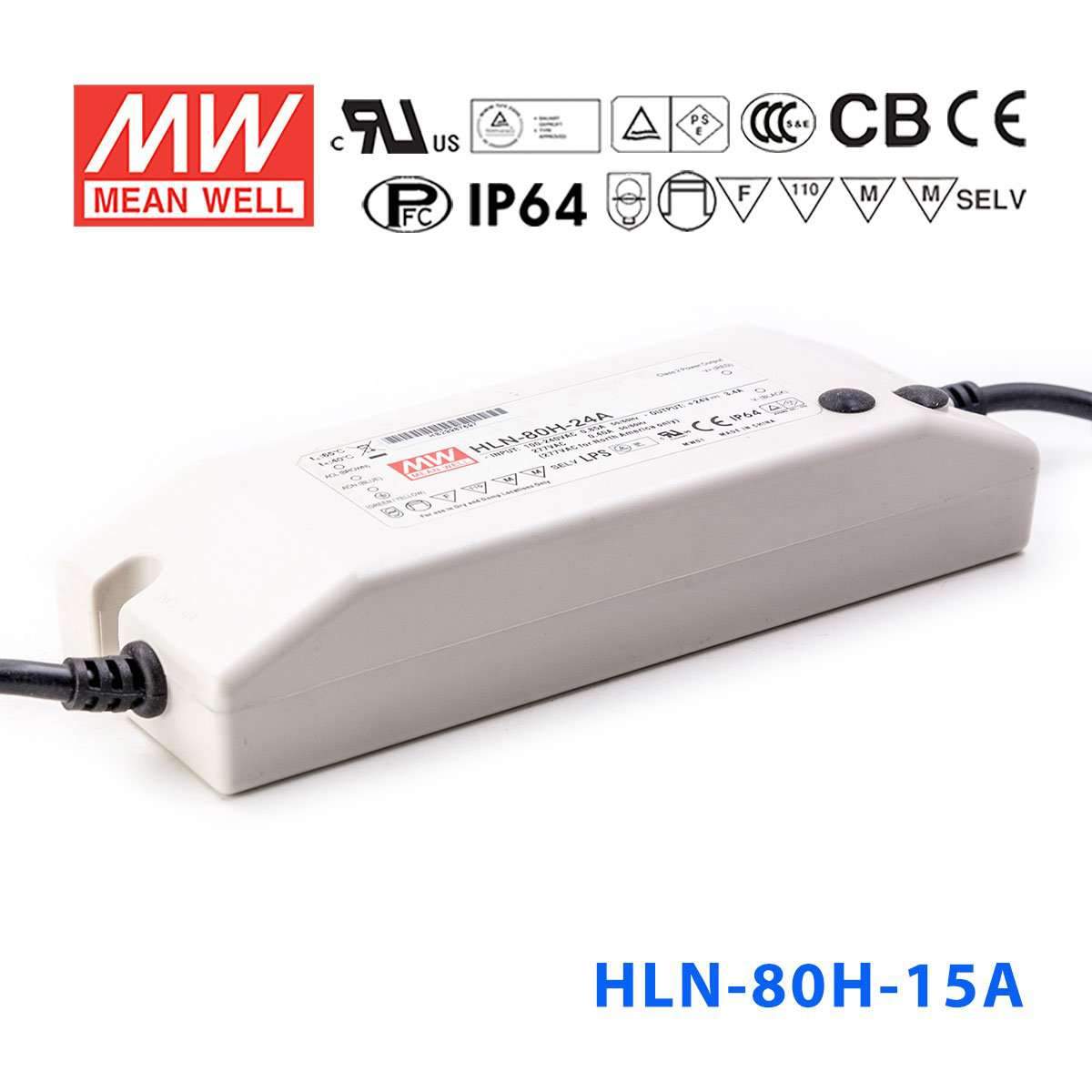

Mean Well HLN-80H-15A Power Supply 75W 15V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-80H-15A Power Supply 75W 15V - IP64, Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 181x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-15A for 15V LED signage modules?
Yes, this model is suitable for signage applications when the load matches its 15V output and stays within 75W and 5A. Its constant current range is 9-15V, so the connected signage load needs to operate inside that range.
Is this driver suitable for 15V LED strip lighting in display or accent projects?
It can work for 15V LED strip lighting if the strip system is compatible with a 15V, 5A, 75W driver and operates within the 9-15V constant current range. This makes it a fit for low-voltage lighting runs where the total strip load does not exceed the driver rating.
Can the HLN-80H-15A power small outdoor sign lighting?
It is a practical option for outdoor sign lighting because the housing is rated IP64 and the unit is specifically noted as suitable for signage applications. The load still needs to stay within 15V output, 5A, and 75W.
How much 15V LED strip can this driver support?
Use the driver's maximum power for the estimate: 75W divided by your strip's rated watts per meter equals the maximum theoretical length. Also confirm the strip is a 15V load and check your strip rated power per meter so the total stays within 75W and 5A.
Is the HLN-80H-15A OK for wet or outdoor locations?
Its IP64 rating means it is intended for dusty or splash-prone environments rather than full water exposure. The operating temperature range is -40°C to +50°C, so it is built for demanding indoor or outdoor conditions within that temperature window.
