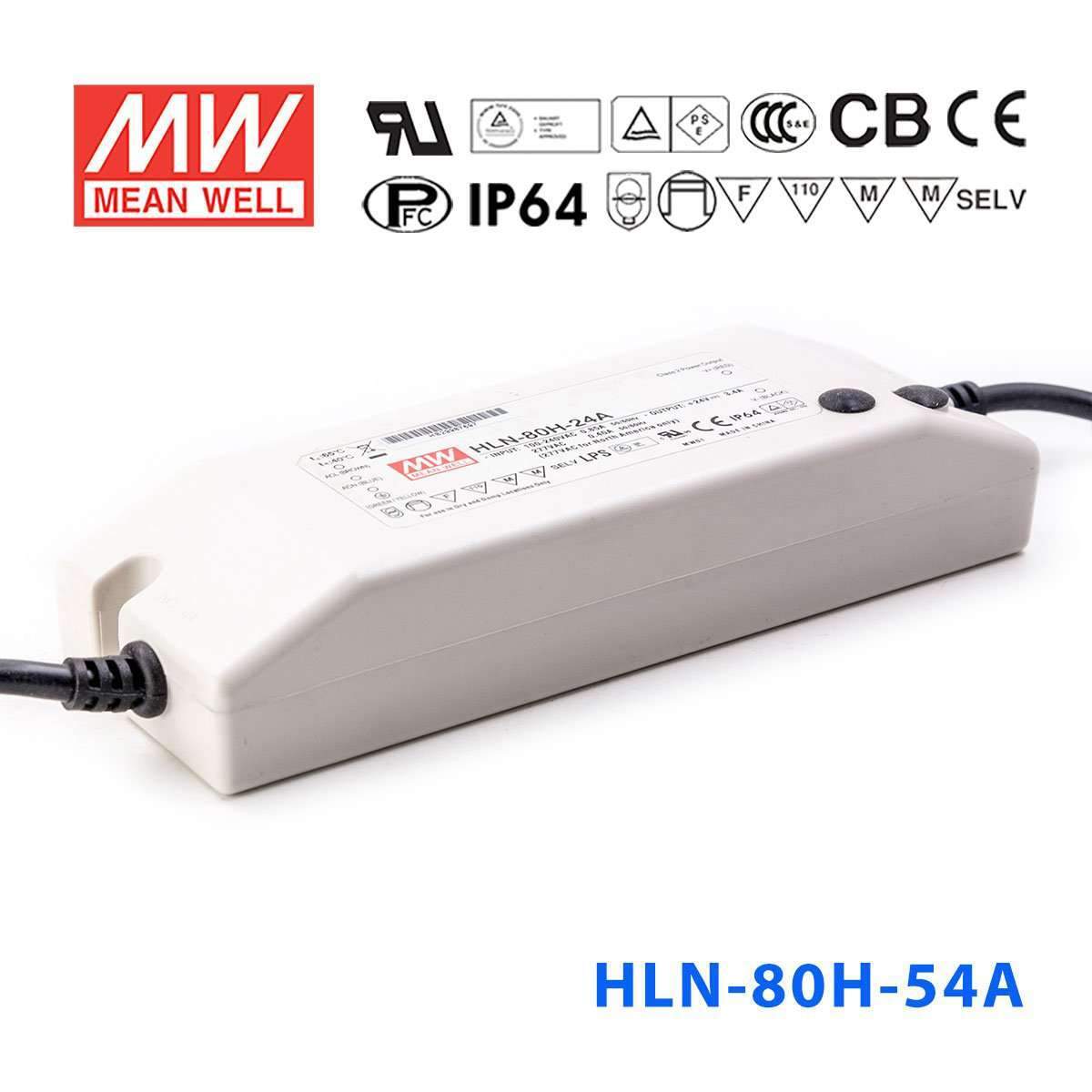

Mean Well HLN-80H-54A Power Supply 80W 54V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-80H-54A Power Supply 80W 54V - IP64, Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 181x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating81 Watt
-
Output Voltage54 Volt
-
Rated Current1.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-54A for high-voltage constant-current LED signage?
Yes, it is suitable for signage applications when the LED load requires constant current at 1.5A. The connected load must operate within the 32-54V constant-current range and stay within the 81W output rating.
Is the HLN-80H-54A suitable for long constant-current lighting strings?
It can be a fit for longer constant-current LED strings because the driver supports up to 54V in its 32-54V range. The full lighting string still needs to match 1.5A operation and remain at or below 81W total load.
Can this 54V model be used with constant-current LED strip or linear lighting systems?
Yes, if the strip or linear light engine is built for constant-current use at 1.5A and falls within 32-54V. This model is not for constant-voltage LED strips, so the product’s operating mode needs to match the driver’s constant-current output.
How many meters of LED strip can the HLN-80H-54A run?
Use the power rating for the estimate: 81 ÷ strip rated watts per meter = estimated maximum meters. Check your strip rated power per meter, and confirm the strip is a constant-current product compatible with the 32-54V operating range.
Can the HLN-80H-54A handle outdoor weather exposure?
The IP64 rating supports use where dust protection and resistance to splashing water are required, which fits many outdoor lighting and sign cabinets. It is rated for operation from -40°C to +50°C, so those ambient limits should be observed.
