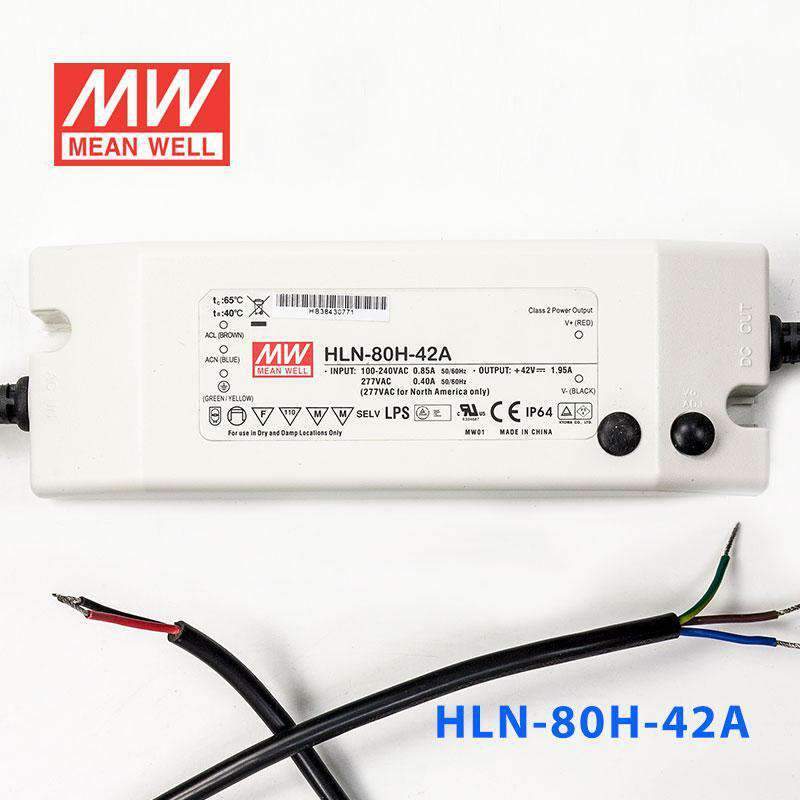

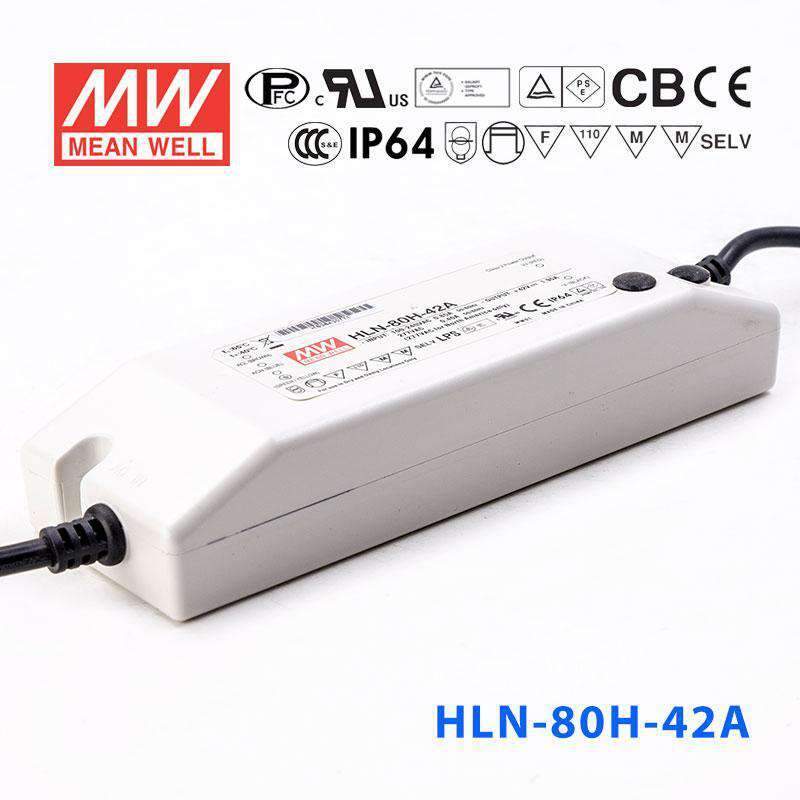

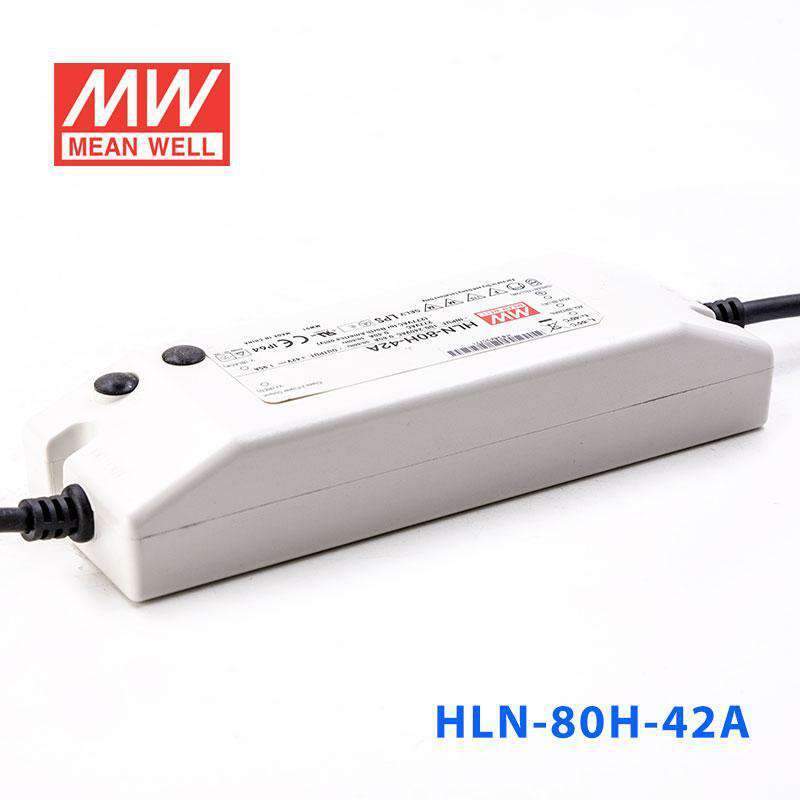

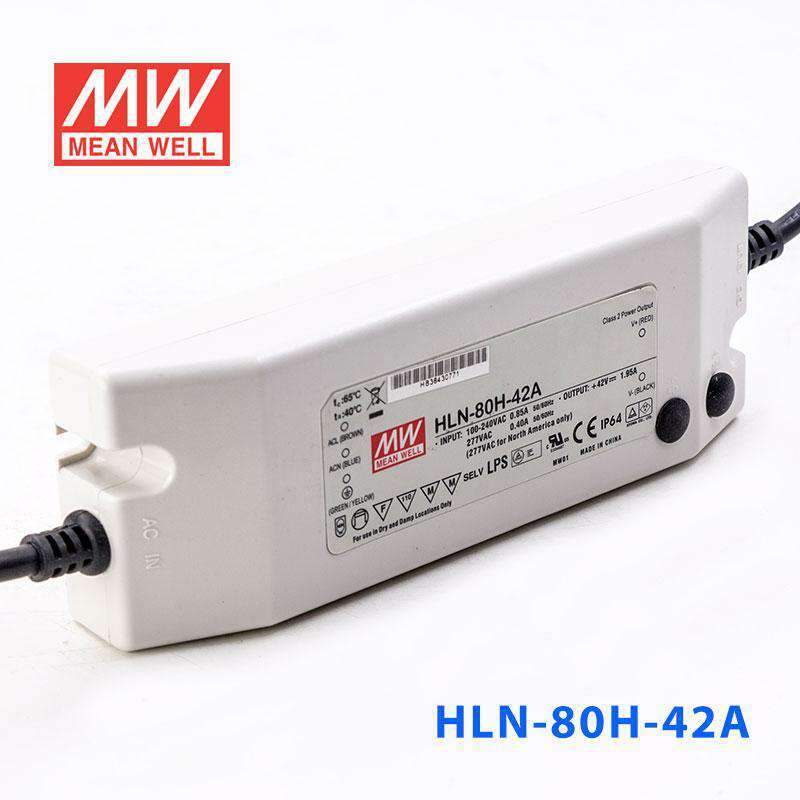

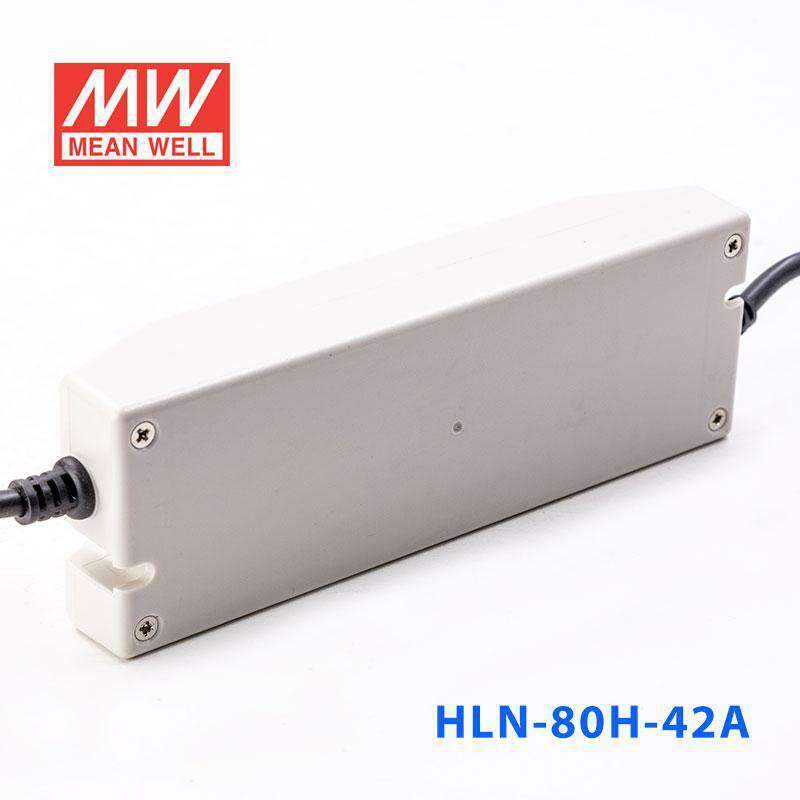

Mean Well HLN-80H-42A Power Supply 80W 42V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-80H-42A Power Supply 80W 42V - IP64, Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 181x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating81.9 Watt
-
Output Voltage42 Volt
-
Rated Current1.95 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-42A for 42V LED signage or illuminated graphics?
Yes, this model is suitable for signage applications and provides 42V at 1.95A in constant-current mode. The connected LED load needs to operate inside the 25-42V CC range and remain within the 81.9W rating.
Is this driver suitable for 42V linear LED fixtures or rigid bars?
It can be used with 42V constant-current LED fixtures that require 1.95A. The total fixture demand must stay at or below 81.9W.
Can this be used for sheltered outdoor accent lighting?
The IP64 enclosure makes it suitable for applications where the driver may be exposed to dust and splashing water. It is also rated for operation from -40°C to +50°C.
How much LED strip can the HLN-80H-42A support?
Use the power rating of 81.9W and divide it by your strip's watts per meter to estimate maximum theoretical length. The formula is 81.9 ÷ strip W/m = max meters; check your strip rated power per meter and confirm it is a 42V load.
Will this work with my 42V LED load?
It is intended for constant-current LED loads that operate from 25V to 42V at 1.95A. If the load sits outside that 25-42V range or needs more than 81.9W, it is not the correct driver.
