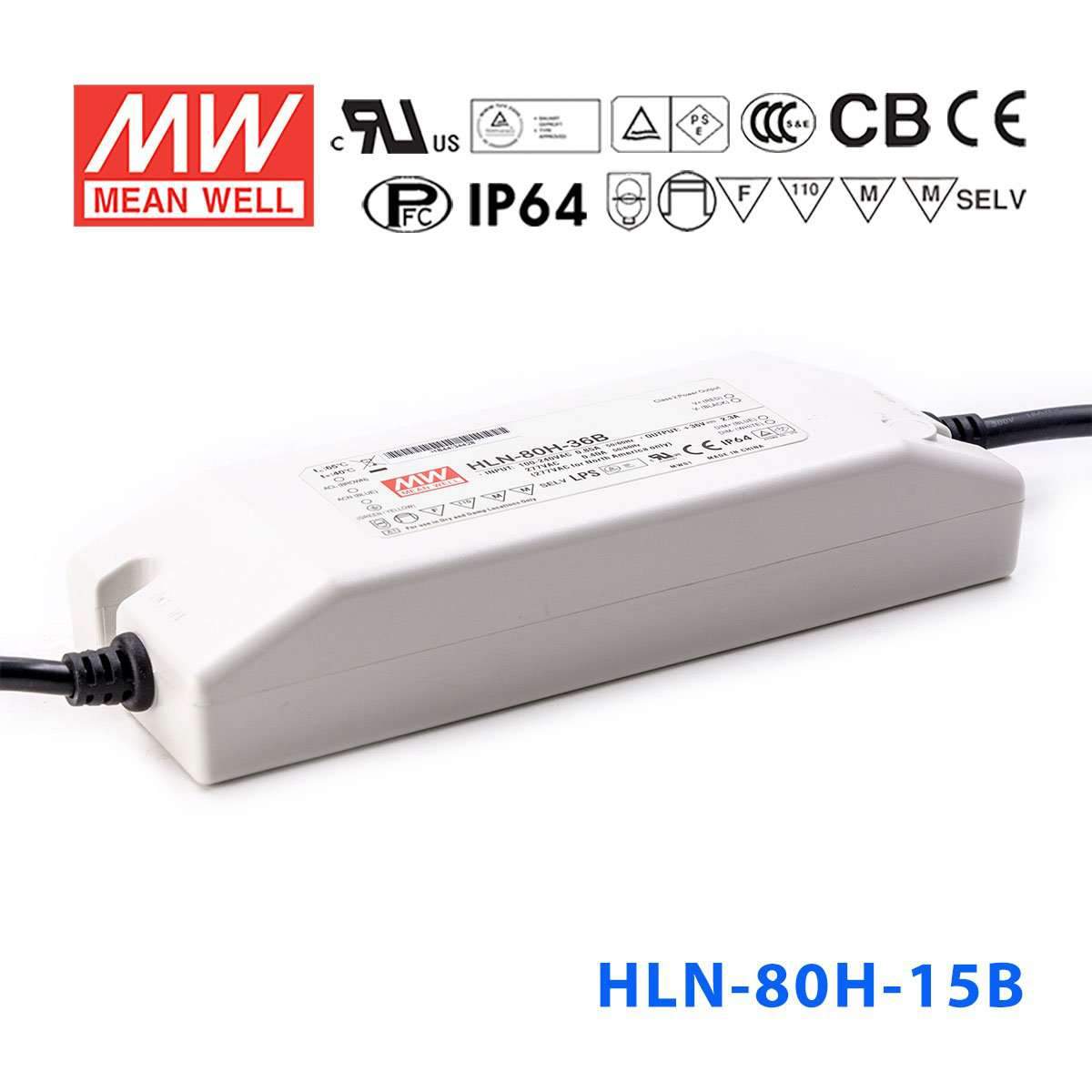

Mean Well HLN-80H-15B Power Supply 75W 15V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-80H-15B Power Supply 75W 15V - IP64, Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Fully isolated plastic case with IP64 level |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Class 2 power unit / Pass LPS |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp location |
| Suitable for LED lighting and moving sign applications |
| Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~150% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+50ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SVT 18AWGx3C (30cm) |
| Connection Output | A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm) |
| Dimension (LxWxH) (mm) | 181x 61.5x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-15B for dimmable 15V signage lighting?
Yes, this is the 15V, 5A, 75W B version and it is suitable for signage applications when the load matches those ratings. The connected lighting load also needs to operate within the 9-15V constant current range.
Is this model a good fit for 15V LED border or cabinet lighting?
It can be used for 15V border or cabinet lighting when the total connected load stays within 75W and 5A. Because the output range is 9-15V, the lighting product needs to be designed to run in that range.
Can the HLN-80H-15B handle 15V illuminated sign boxes?
It is appropriate for illuminated sign box lighting if the sign load is a 15V load and the total demand does not exceed 75W. The IP64 enclosure also makes it better suited to exposed sign environments than an indoor-only driver.
What LED strip length can I estimate from this 15V 75W driver?
The sizing math is 75W divided by the strip's watts per meter. Check your strip rated power per meter, then make sure the full run stays within 75W total, 5A output current, and the 15V operating requirement.
Can this driver be used outside or in damp areas?
The IP64 rating supports use in outdoor or damp locations where dust and splashing water are expected, but it is not a submersible unit. It is also rated to operate from -40°C to +50°C, which helps in cold or hot installations within that range.
