Mean Well

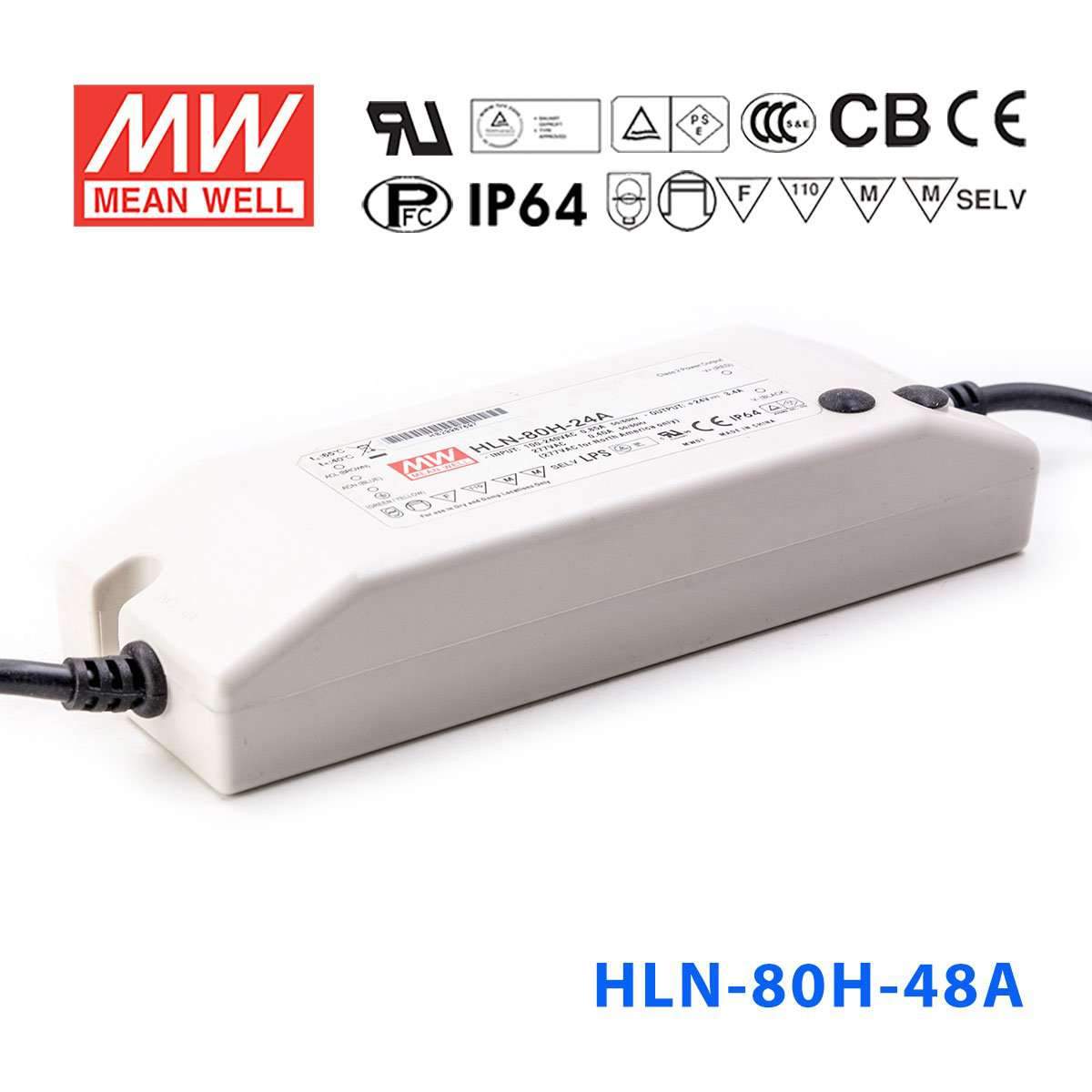

Mean Well HLN-80H-48A Power Supply 80W 48V - IP64, Adjustable

Name: Mean Well HLN-80H-48A Power Supply 80W 48V - IP64, Adjustable
Brand: Mean Well
SKU: HLN-80H-48A
Price: 53.15 USD
Availability: InStock

Mean Well HLN-80H-48A Power Supply 80W 48V - IP64, Adjustable

2 units in stock

$53.15 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	90~305VAC; 127~431VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	±10% rated output voltage (A-Type only)
Current adjustment range	60%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	109%~150% rated output voltage
Setup, rise, hold up time	1000ms, 80ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature	-40~+50ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx3C (30cm)
Connection Output	A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm)
Dimension (LxWxH) (mm)	181x 61.5x 35
