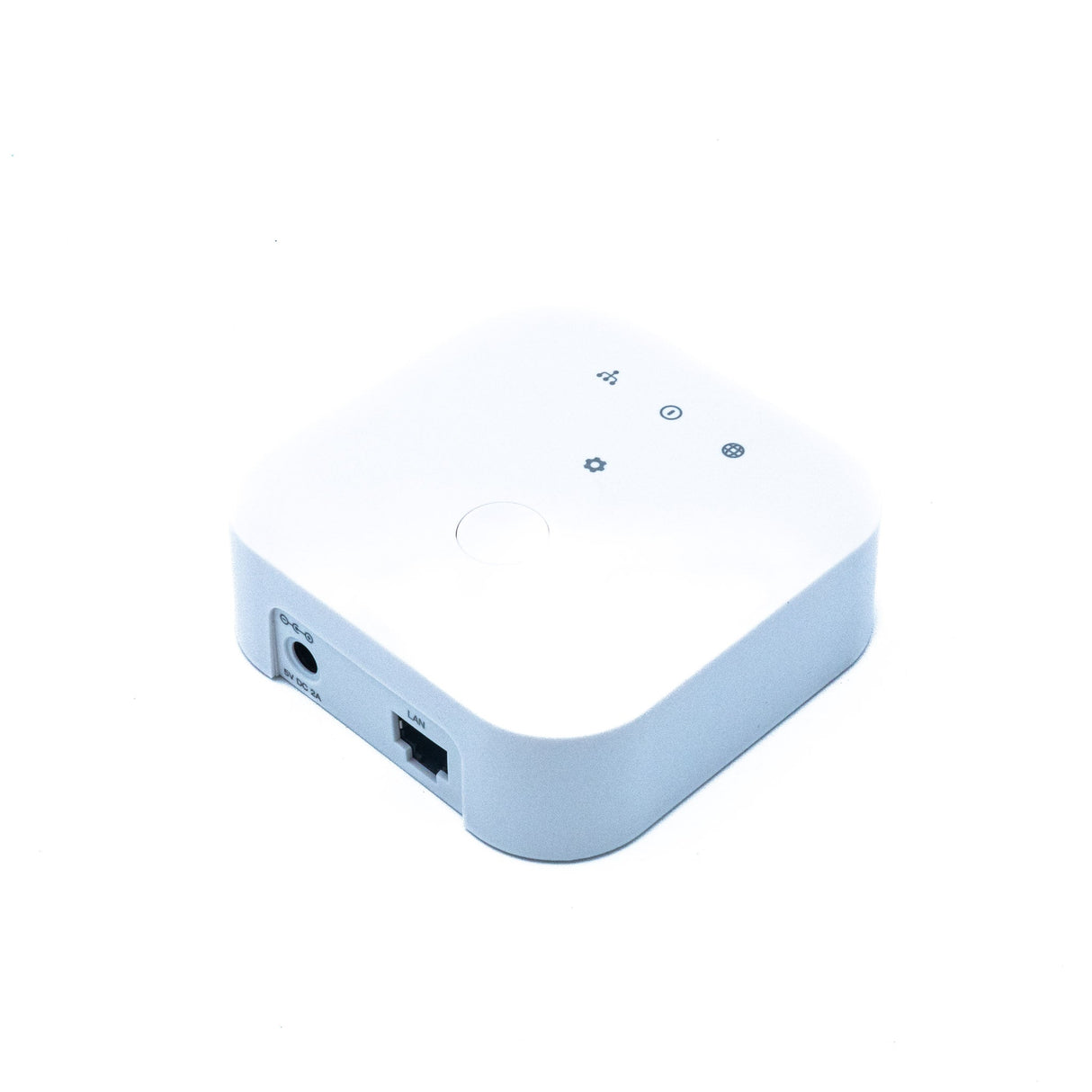

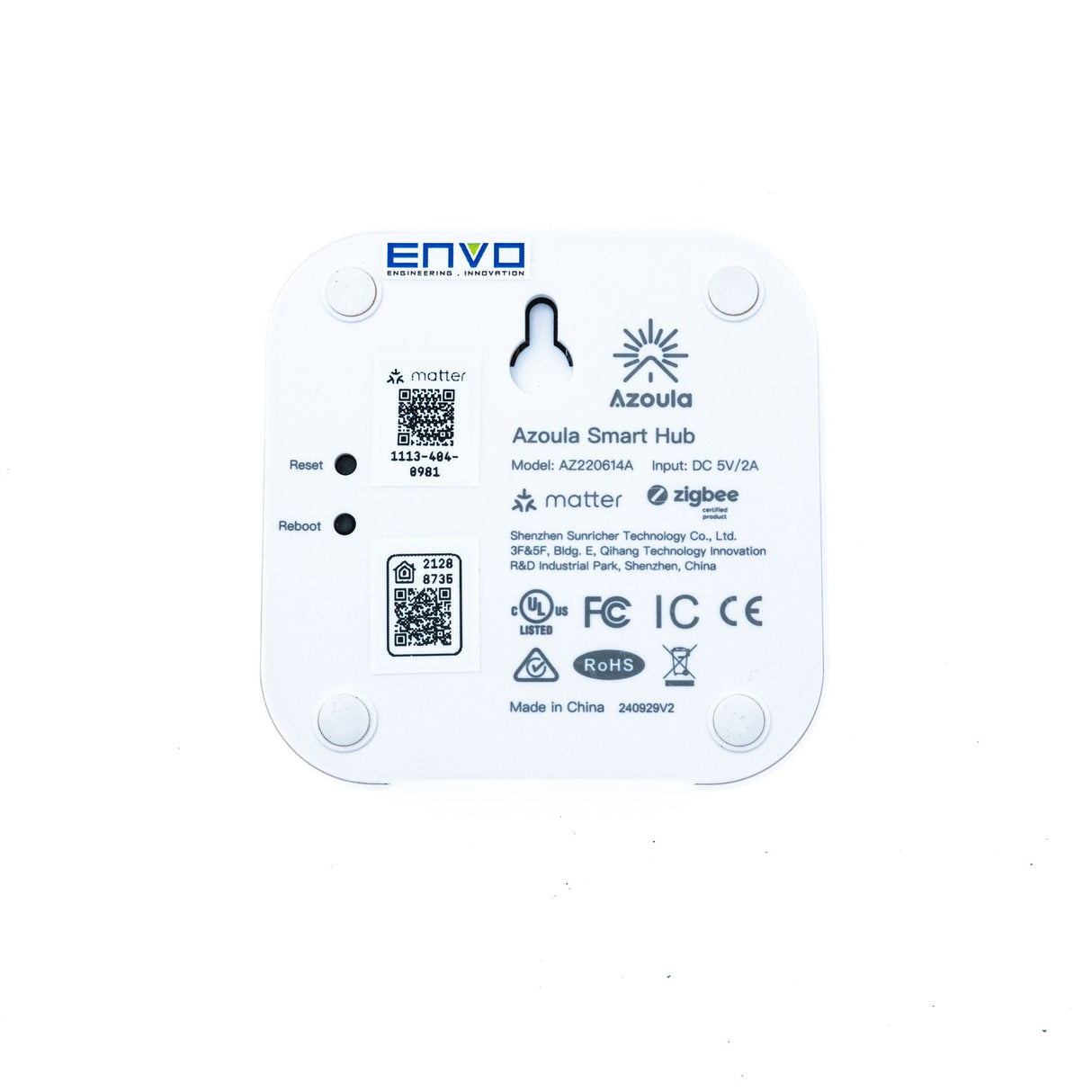

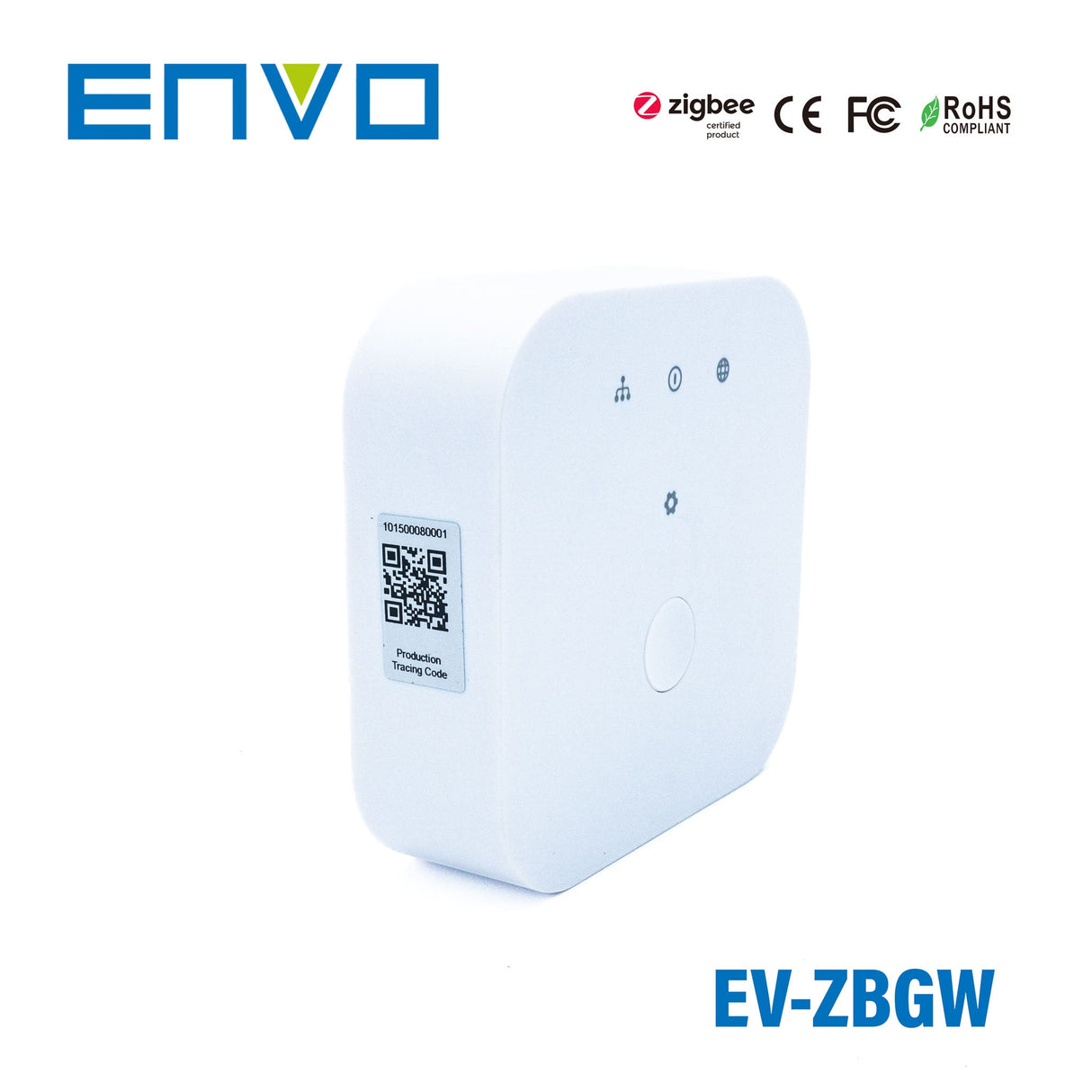

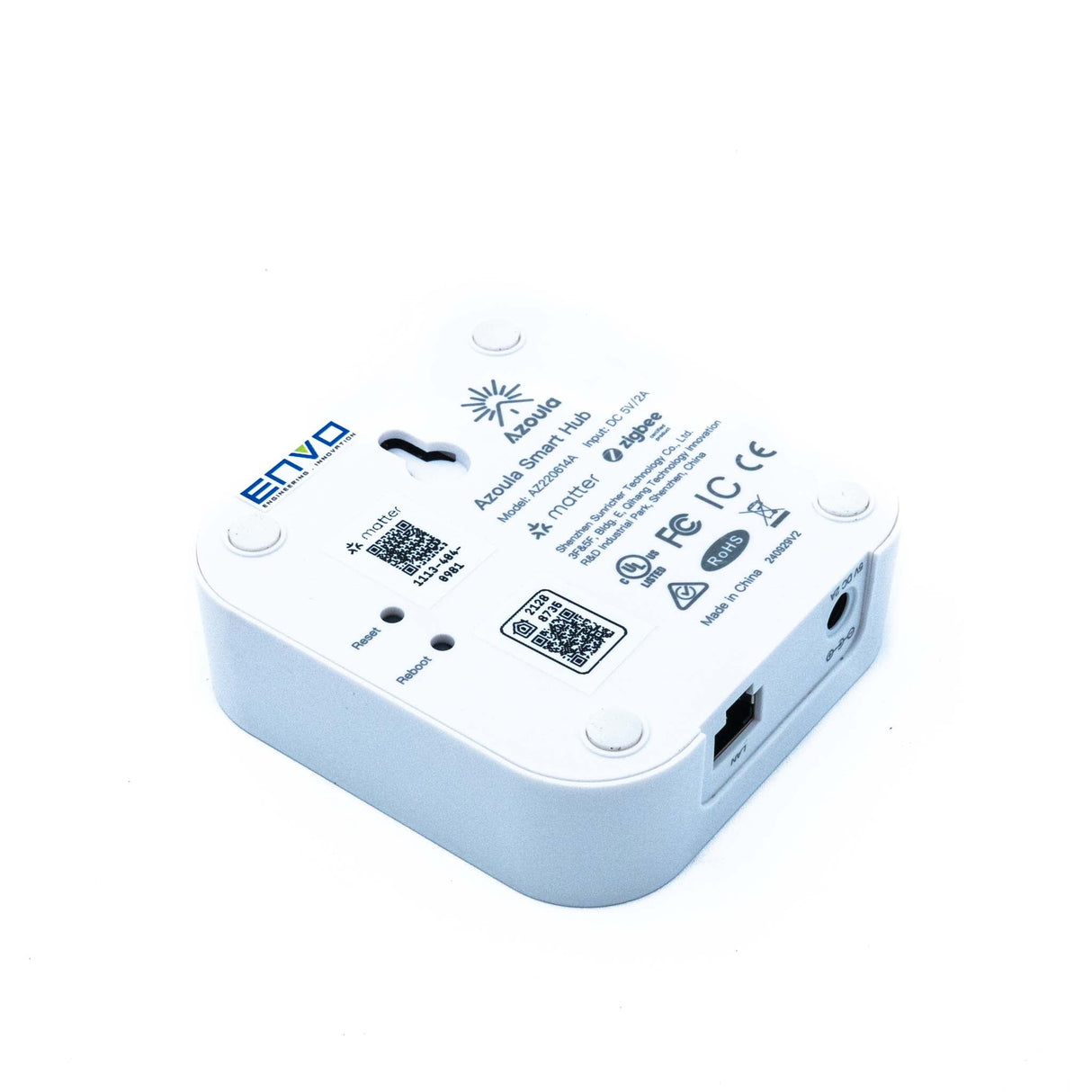

ENVO ZigBee Gateway Smart Hub
Features:
- This ZigBee smart hub works with: Zigbee light devices, sensors, heaters, plugs, remotes, GP switches etc.
- Free APP is available for IOS or Android smart phones or tablets.
- Supports group, scene, and automation.
- Supports up to 150 zigbee devices.
- Cloud control enabled, supports voice control through Amazon Alexa and Google Assistant.
- Supports firmware OTA update for the smart hub and Zigbee devices
- Waterproof grade: IP20.
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
General Specification
Zigbee Protocol
Zigbee 3.0
Operation Frequency
2.4GHz
Power Supply
5VDC/2A
Operating Temperature
-20°C-+50°C
Relative Humidity
8% to 80%
Dimension (LxWxH)
94x94x29.5mm
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
No of Output1
-
Dimming ControlZigbee
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length3.7 in
-
Width3.7 in
-
Height1.16 in
::specification::
Frequently Asked Questions
What does the ENVO ZigBee Gateway Smart Hub do?
The ENVO ZigBee Gateway Smart Hub acts as a central hub for Zigbee 3.0 devices in a smart control system. It is designed to work with compatible lights, sensors, heaters, plugs, remotes, and GP switches, while also supporting grouping, scenes, and automation.
How many devices can this ZigBee hub support?
This model supports up to 150 Zigbee devices. That makes it suitable for larger residential or light commercial smart control setups that need one hub to manage multiple compatible devices.
Is the ENVO ZigBee Gateway Smart Hub compatible with voice assistants?
Yes, this smart hub supports cloud control and voice control through Amazon Alexa and Google Assistant. Voice assistant support depends on using compatible Zigbee devices with the hub.
Which mobile devices can be used with this smart hub?
A free app is available for iOS and Android smartphones or tablets. That allows users to manage supported Zigbee devices, scenes, groups, and automation from common mobile platforms.
What Zigbee standard does this gateway use?
The ENVO ZigBee Gateway Smart Hub uses the Zigbee 3.0 protocol and operates on 2.4GHz. This is the current unified Zigbee standard used by many compatible smart lighting and control products.
Can this hub be used in demanding indoor environments?
It is rated for operating temperatures from -20°C to +50°C and relative humidity from 8% to 80%. Its IP20 rating means it is intended for dry indoor environments and should not be exposed to moisture.
Does the ENVO ZigBee Gateway Smart Hub support updates over time?
Yes, it supports OTA firmware updates for both the smart hub and supported Zigbee devices. This can help maintain compatibility and add improvements without replacing the hub.
