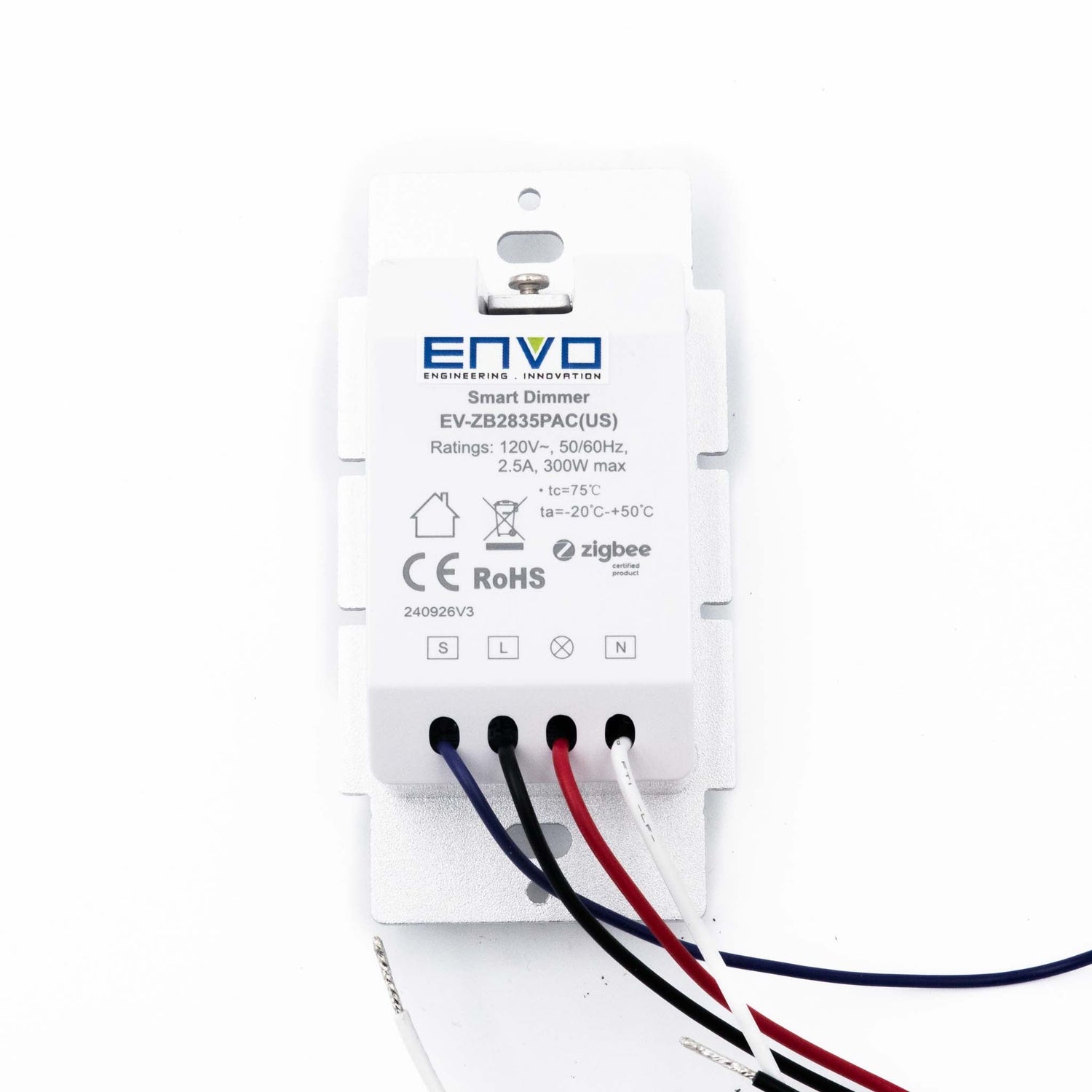

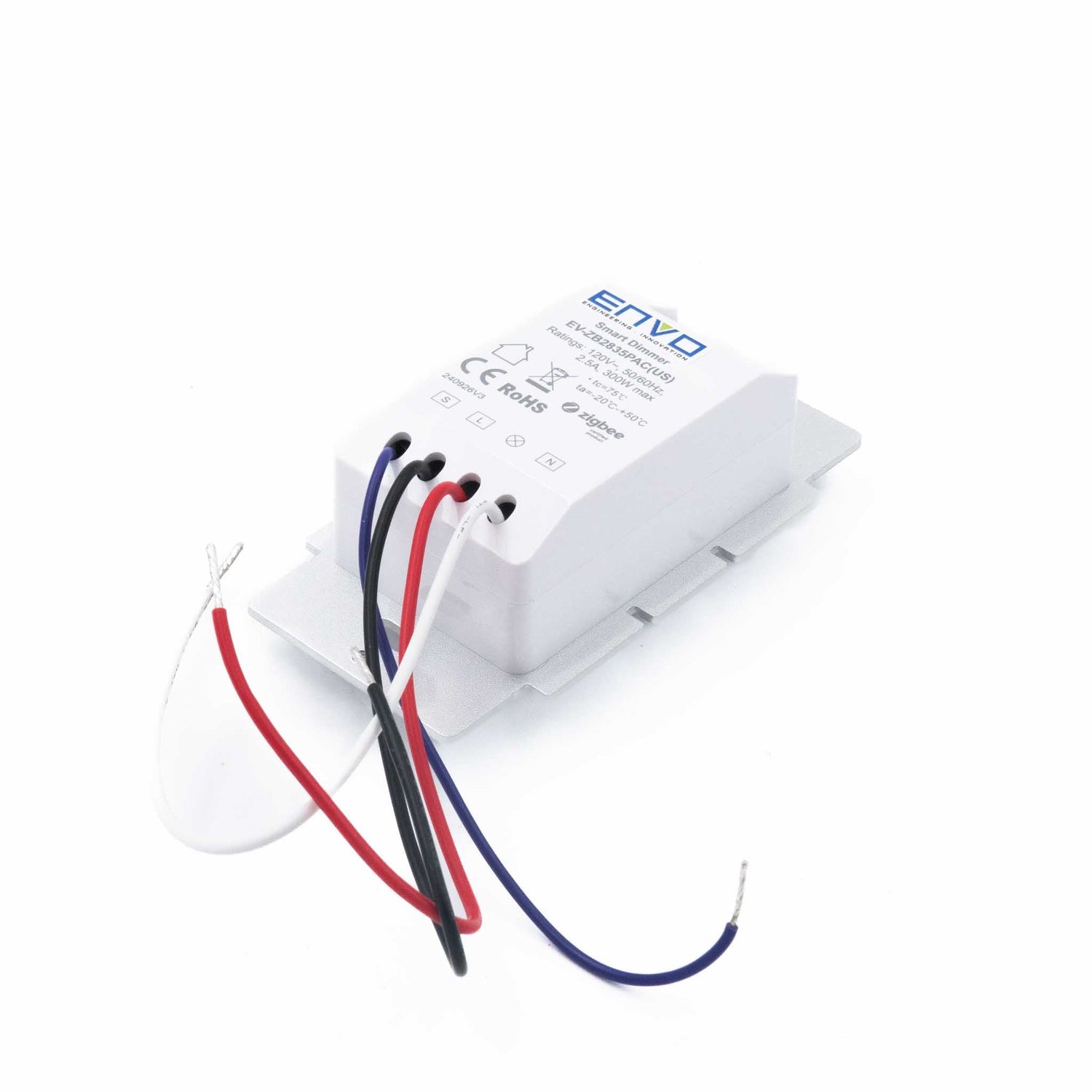

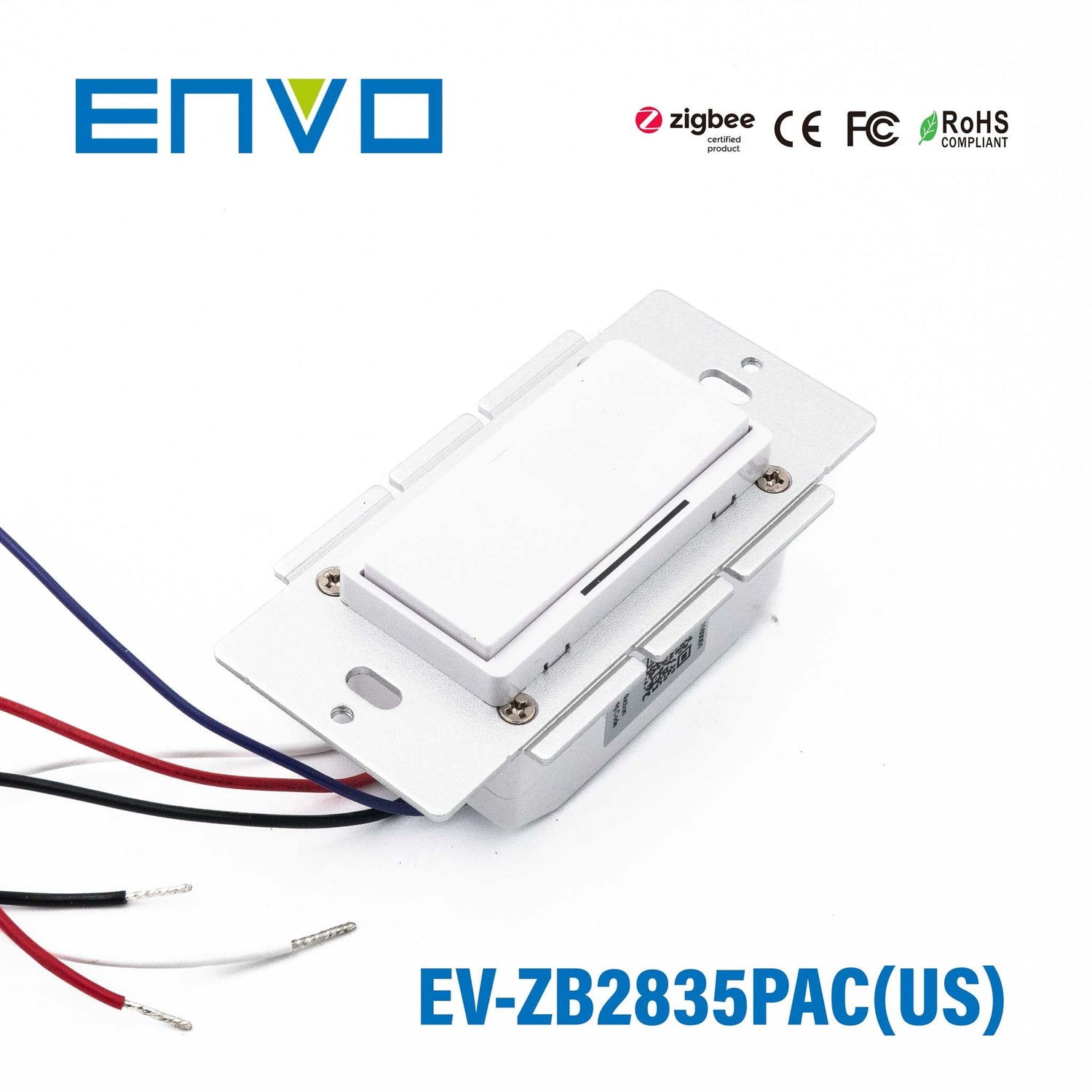

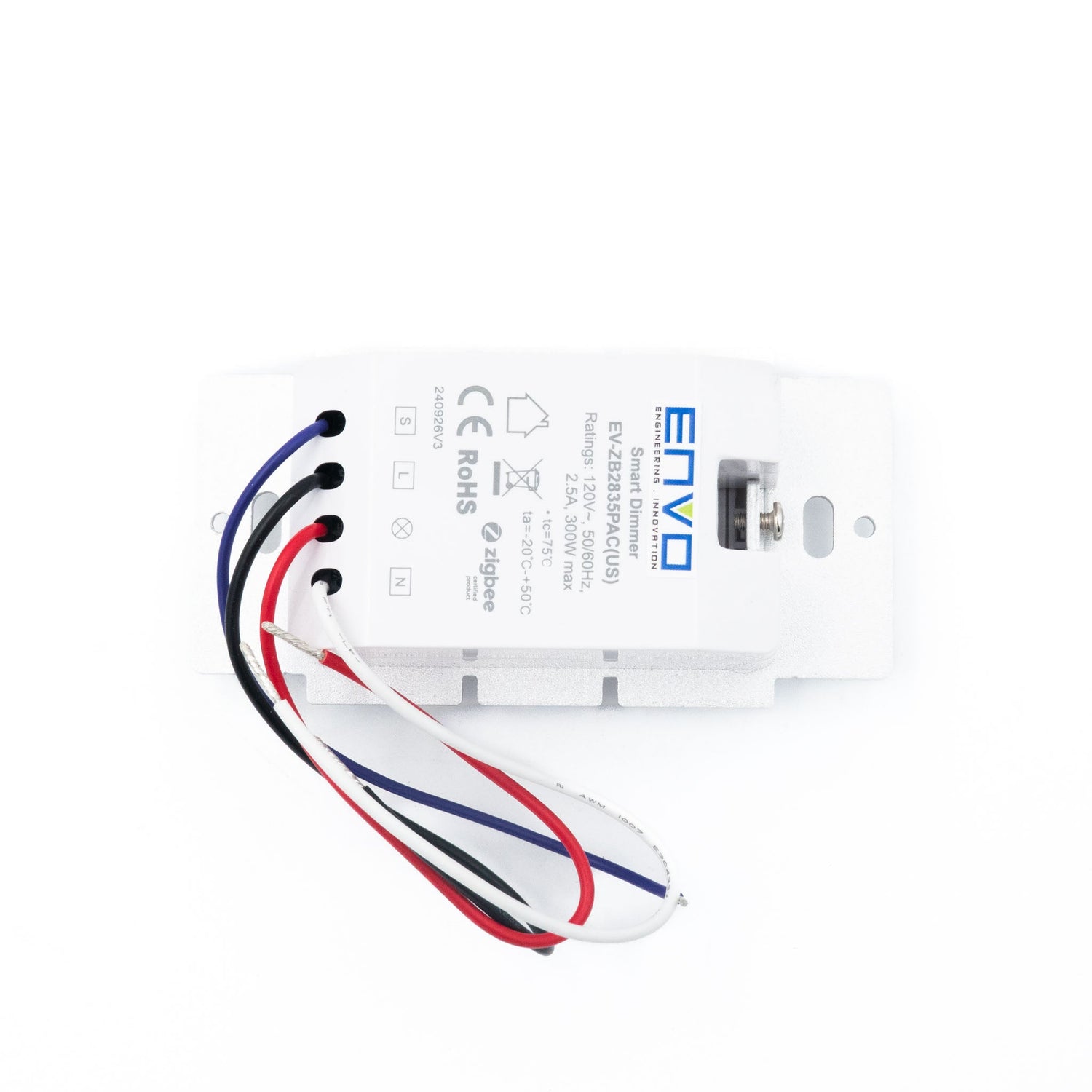

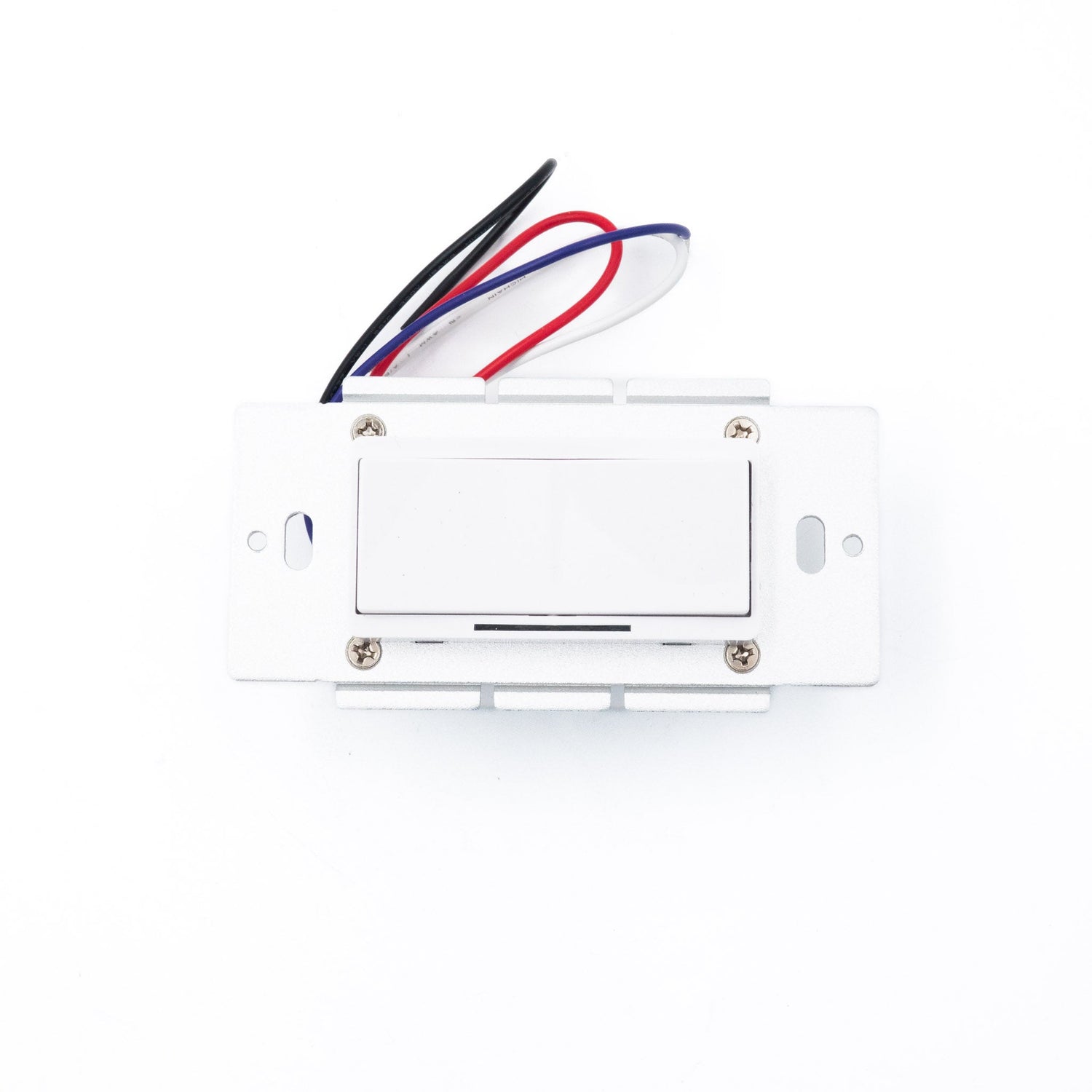

ENVO ZigBee US Standard Push Button Smart Dimmer
$61.55 USD
Unit price /
Unavailable
Overview
EV-ZB2835PAC(US) is the 120VAC output model of this series.
Features
- ZigBee keypad smart dimmer based on latest ZigBee 3.0 protocol
- Can work under no neutral wiring and with neutral wiring, self-adaptive
- Supports resistive loads, capacitive loads or inductive loads
- Enables to set minimum brightness and startup brightness
- 1 channel output, up to 300W
- Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
- Enables to control ON/OFF and light intensity of connected light source
- ZigBee end device that supports Touchlink commissioning
- Can be controlled by zigbee gateway, zigbee remote and local rotary knob
- Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
- Supports self-forming zigbee network without coordinator and add other devices to the network
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power and can bind max. 20 zigbee green power switches
- Compatible with universal ZigBee gateway products
- With push switch input, can be controlled by universal AC push switches
- Standard size, can be compatible with existing US standard frames, and installed into existing junction box
- Radio Frequency : 2.4GHz
- Waterproof grade: IP20
Specifications
EV-ZB2835PAC(US)Specifications from the official datasheetDownload datasheet PDF
Product Data
- Input Voltage
- 120VAC
- Output Voltage
- 120VAC
- Output Current
- 2.5A max
- Size(LxWxH)
- 105.5x54.7x40.03mm
- Ambient Temperature
- -20°C ~ +50°C
Compatible Load Types
- Dimmable LED lamps
- 150W @ 120V
- Dimmable LED drivers
- 150W @ 120V
- Incandescent lighting, HV Halogen lamps
- 300W @ 120V
- Low voltage halogen lighting with electronic transformers
- 300W @ 120V
Status of Indication LEDs When the Load is Dimmed
- Turned on
- All LEDs turn on
- Turned off
- All LEDs turn off
- Dimmed to the range 81%-99%
- 5 LEDs stay on
- Dimmed to the range 61%-80%
- 4 LEDs stay on
- Dimmed to the range 41%-60%
- 3 LEDs stay on
- Dimmed to the range 21%-40%
- 2 LEDs stay on
- Dimmed to the range 1%-20%
- 1 LED stays on
Certifications & ratings
- Certification marks
- CE, FCC, RoHS
Downloads
Datasheet1
