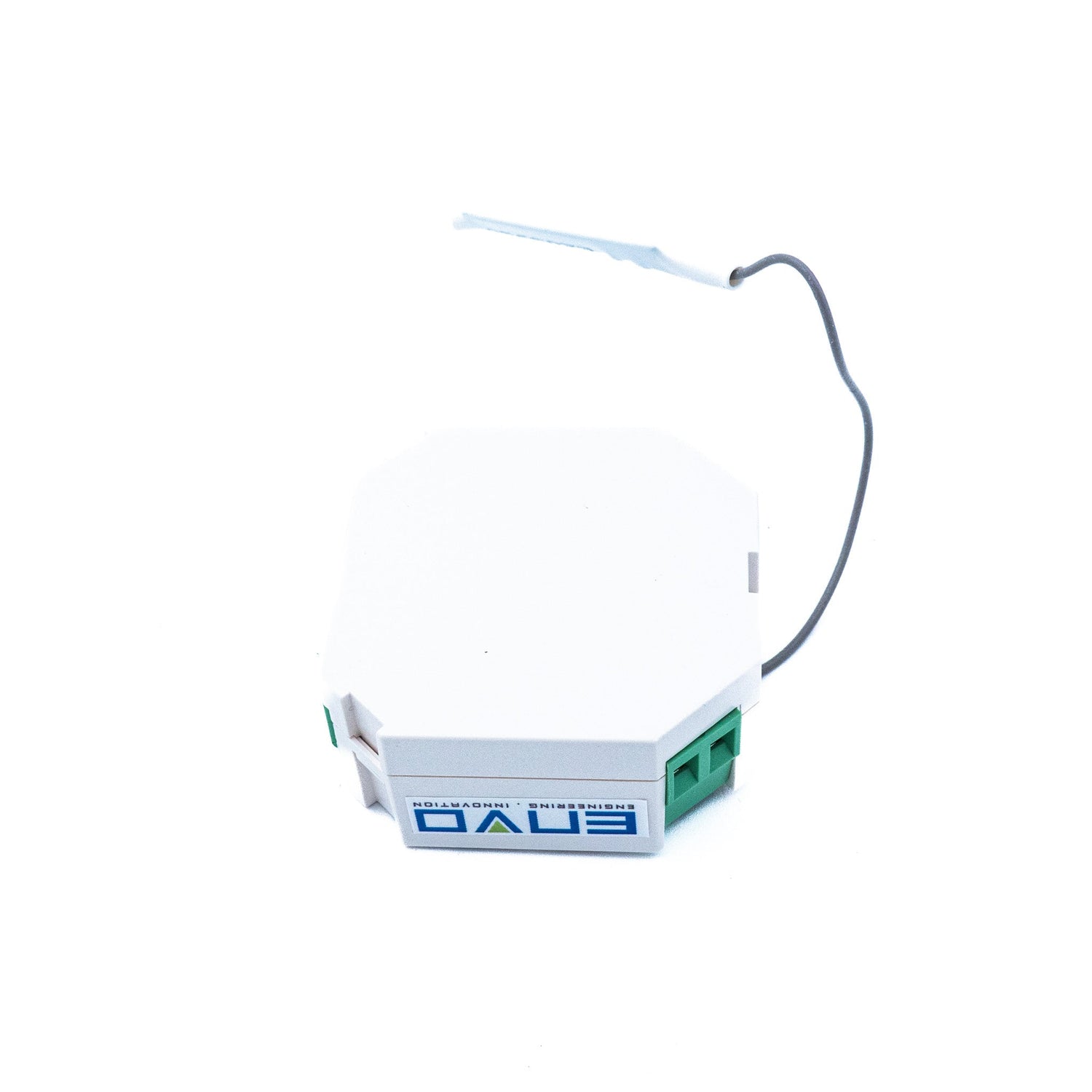

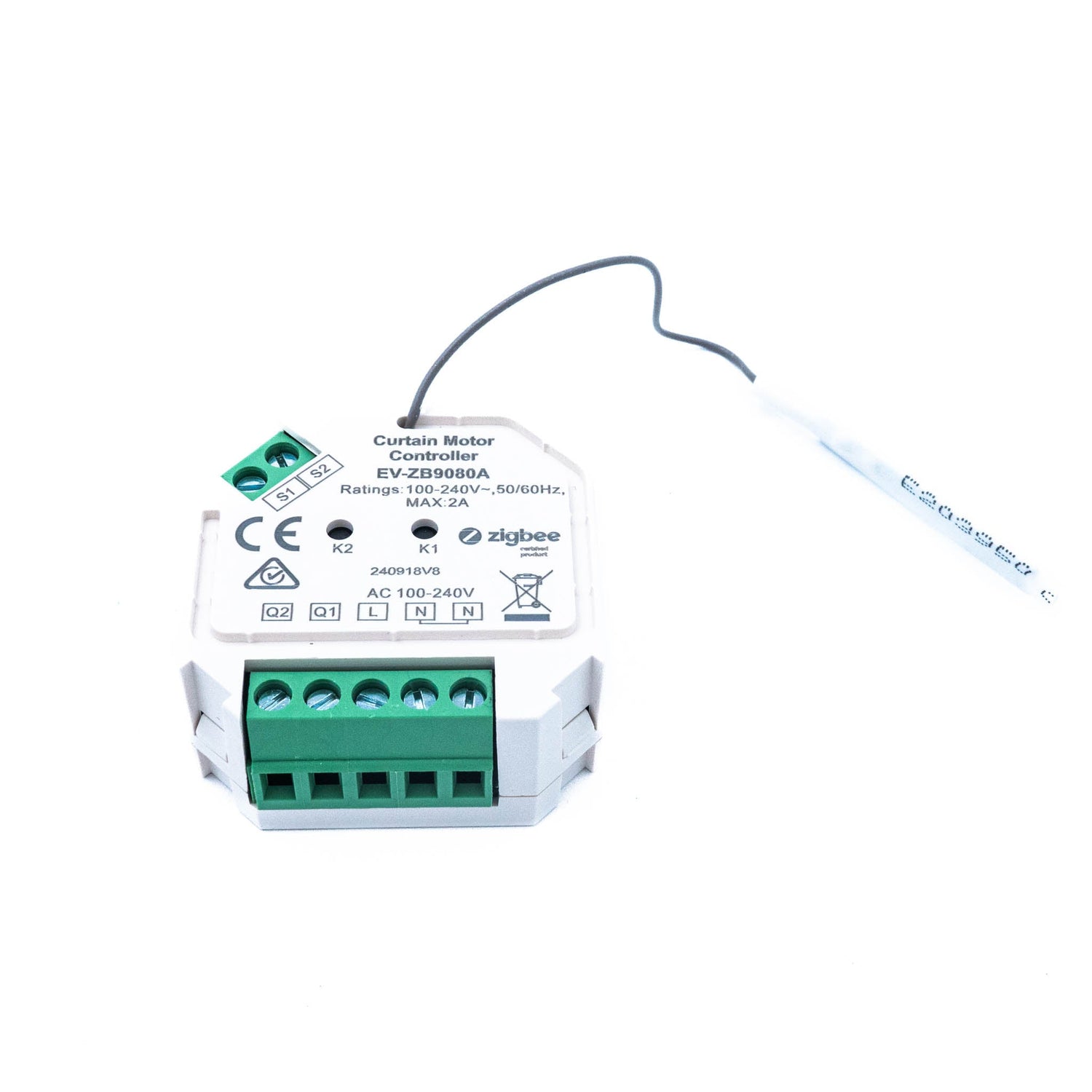

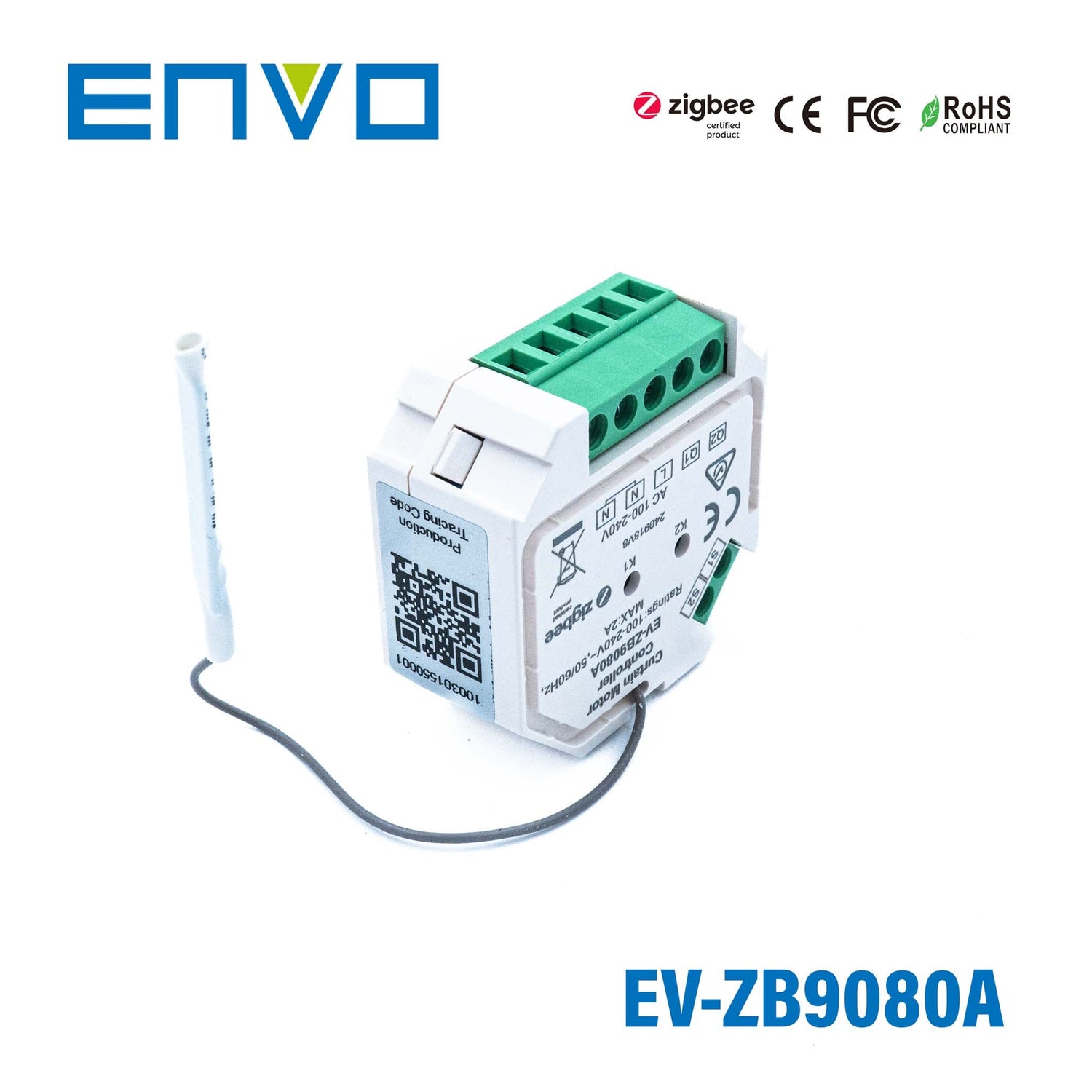

ENVO ZigBee Blinds Controller - On/Off and Level Control
ZigBee 3.0 protocol, can be controlled by remote, support roller blinds, shutter blinds and drapes, etc
SKU:
EV-ZB9080A
$60.05 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO ZigBee Blinds Controller - On/Off and Level Control
$60.05 USD
Unit price /
Unavailable
Description
Description
Features:
- Zigbee curtain motor controller based on latest ZigBee 3.0 protocol
- Full support for various curtain types: roller blinds, shutter blinds, drapes, etc.
- Controlled by smart app or directly by zigbee remote
- Local control with external switches even if not added to a zigbee network
- Accurate control, supports both ON/OFF and level control
- ZigBee end device that supports Touchlink commissioning
- Supports self-forming zigbee network without coordinator
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power feature and can bind max. 20 zigbee green power remotes
- Compatible with universal ZigBee gateway products
- Waterproof grade: IP20
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
General Specification
Zigbee Protocol
Zigbee 3.0
Input Voltage
AC100-240V
Output Voltage
AC100-240V
Max. Load Current
2A
Relative Humidity
8% to 80%
Operating Temperature
0 to 40°C
Dimension (LxWxH)
45.5x45x20.3mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Rated Current2 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlZigbee
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~40°C
-
Warranty5 Year
-
Length1.79 in
-
Width1.77 in
-
Height0.8 in
