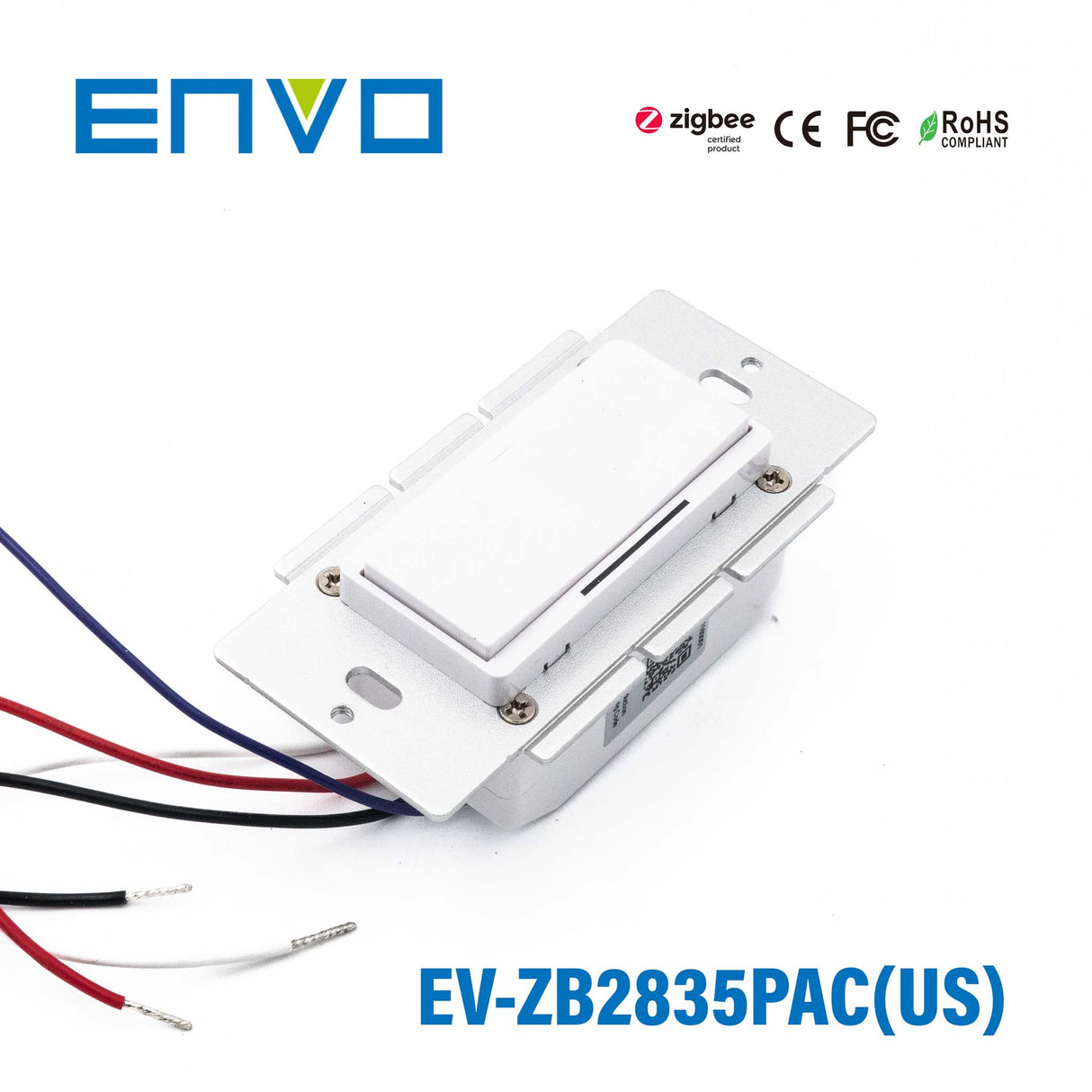

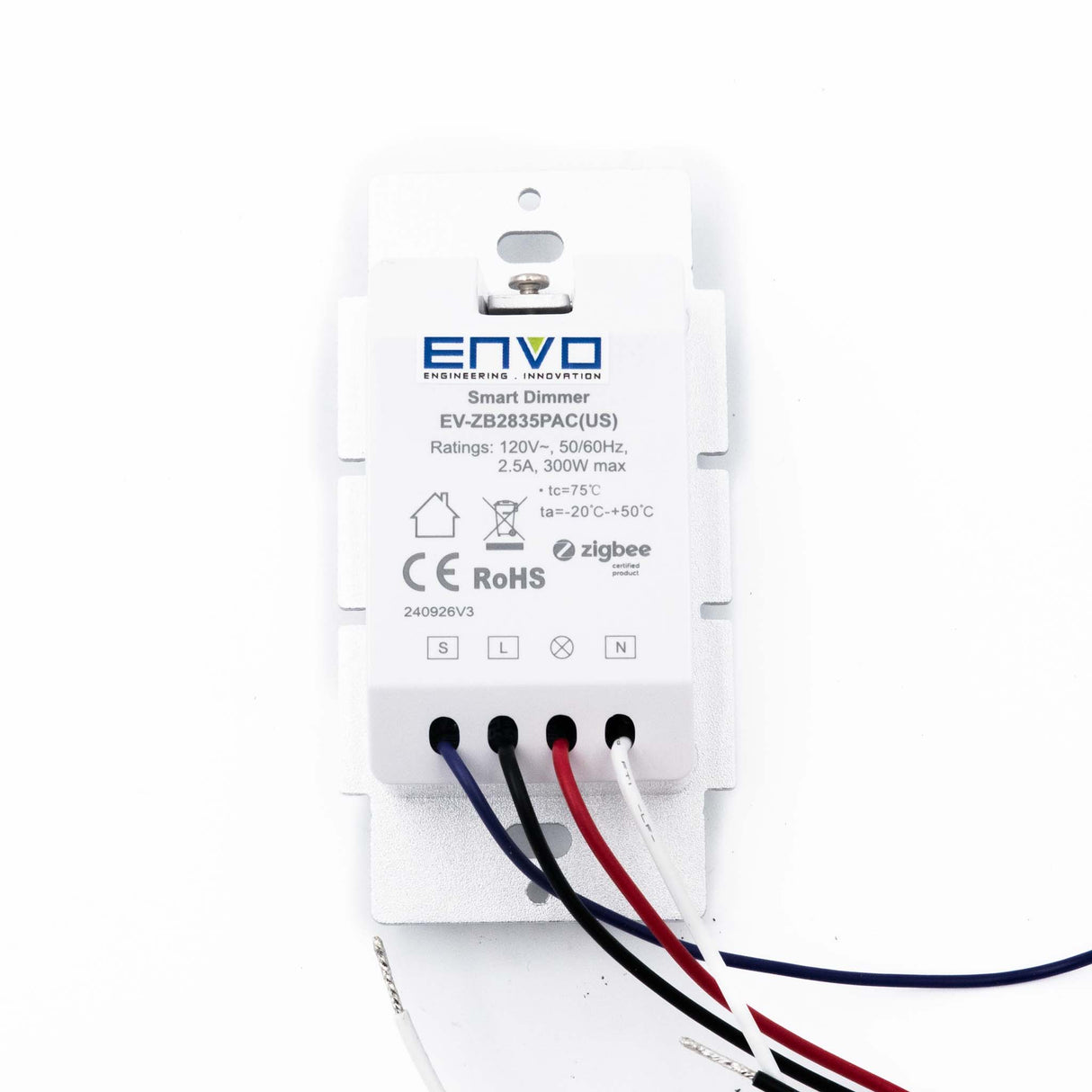

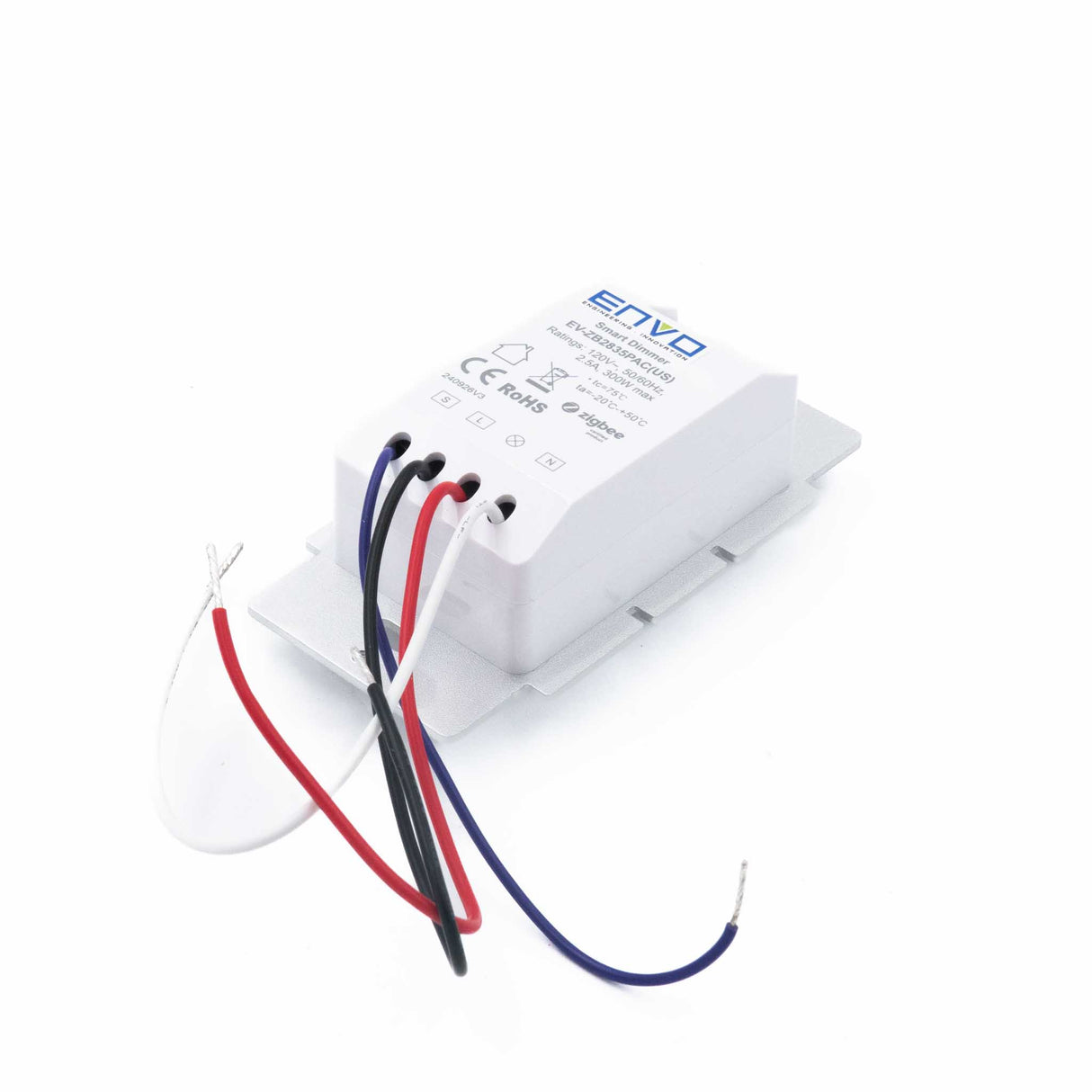

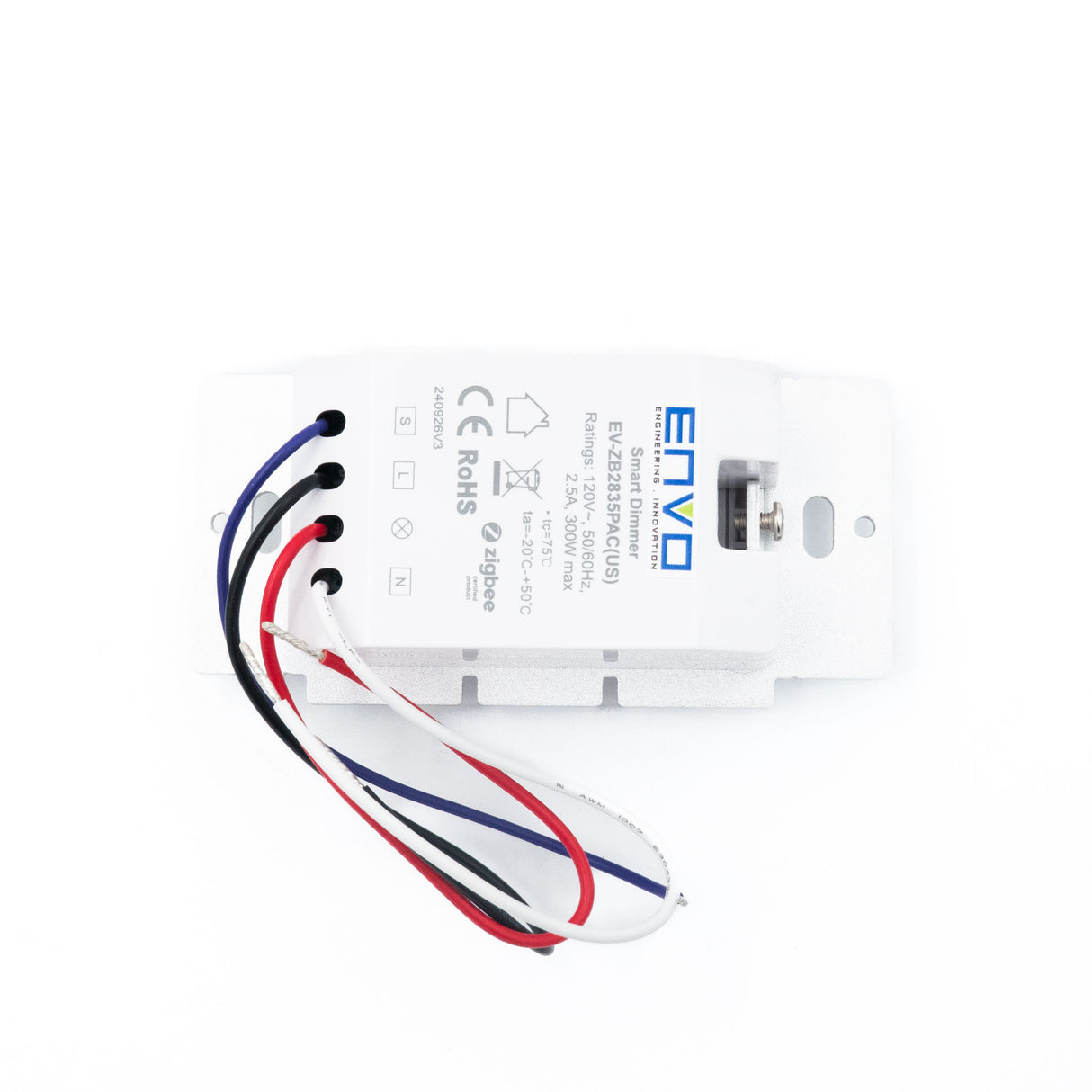

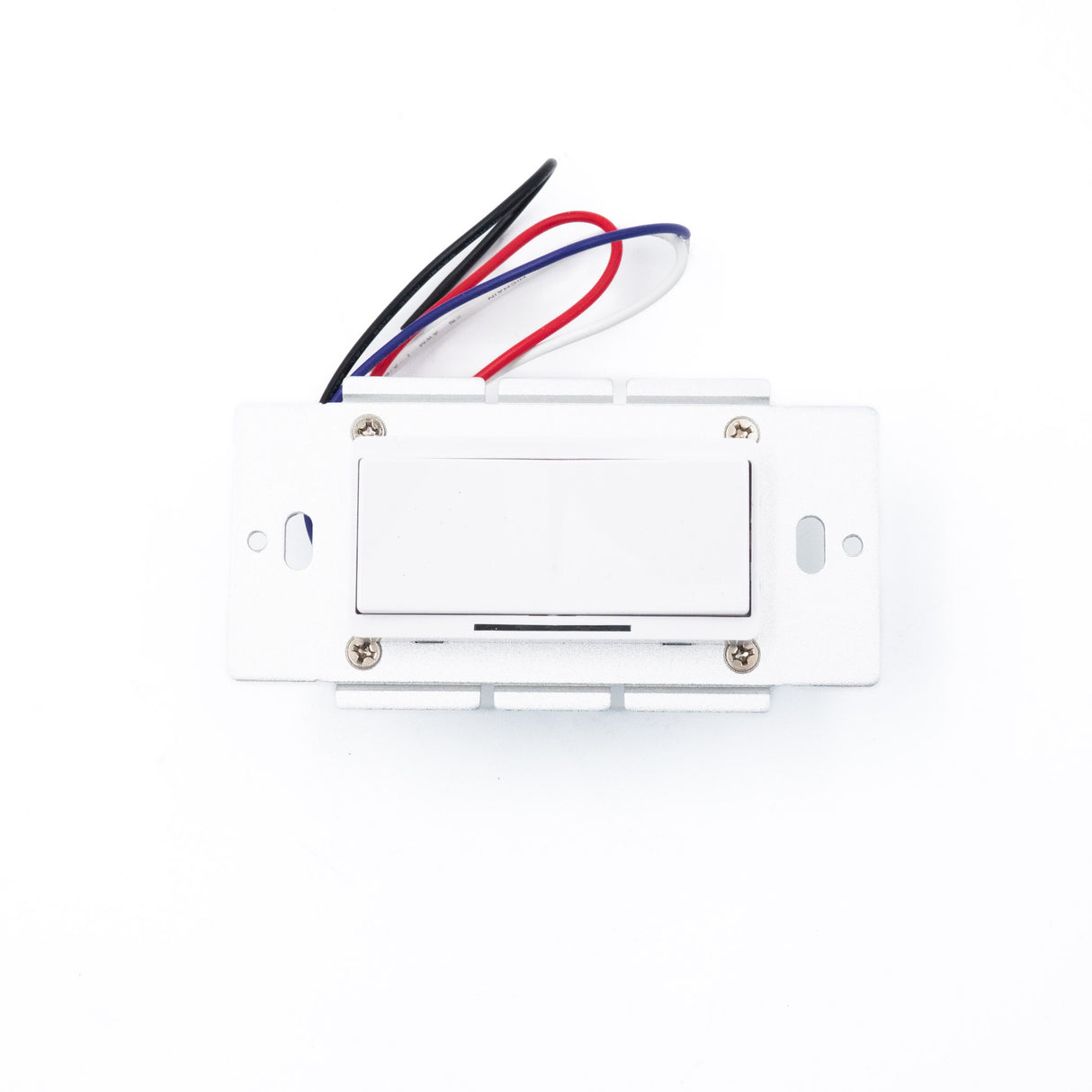

ENVO ZigBee US Standard Push Button Smart Dimmer
$61.55 USD
Unit price /
Unavailable
Features:
- Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
- Advanced microprocessor control
- Implemented algorithm of smart light source detection
- Active power and energy metering functionality
- Soft start function
- Innovative minimum dimming level and startup brightness setting functions
- The Bypass is an extension unit
General Specification
Input Voltage
120VAC
Output Voltage
120VAC
Output Current
2.5A max
Ambient Temperature
-20°C ~ +50°C
Dimension (LxWxH)
105.5x54.7x40.03mm
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating150 Watt
-
Output Voltage120 Volt
-
Rated Current2.5 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlZigbee
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length4.15 in
-
Width2.15 in
-
Height1.58 in
