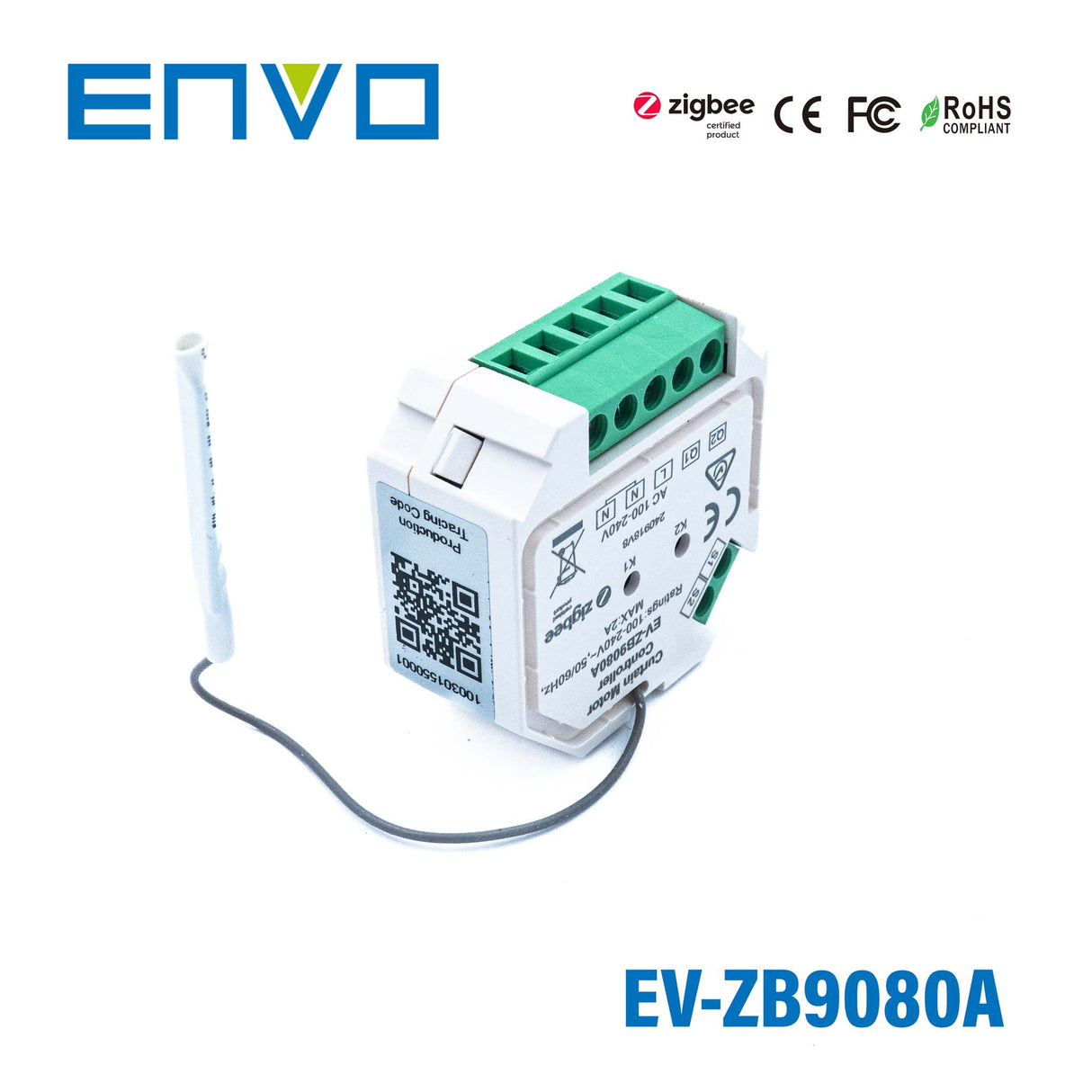

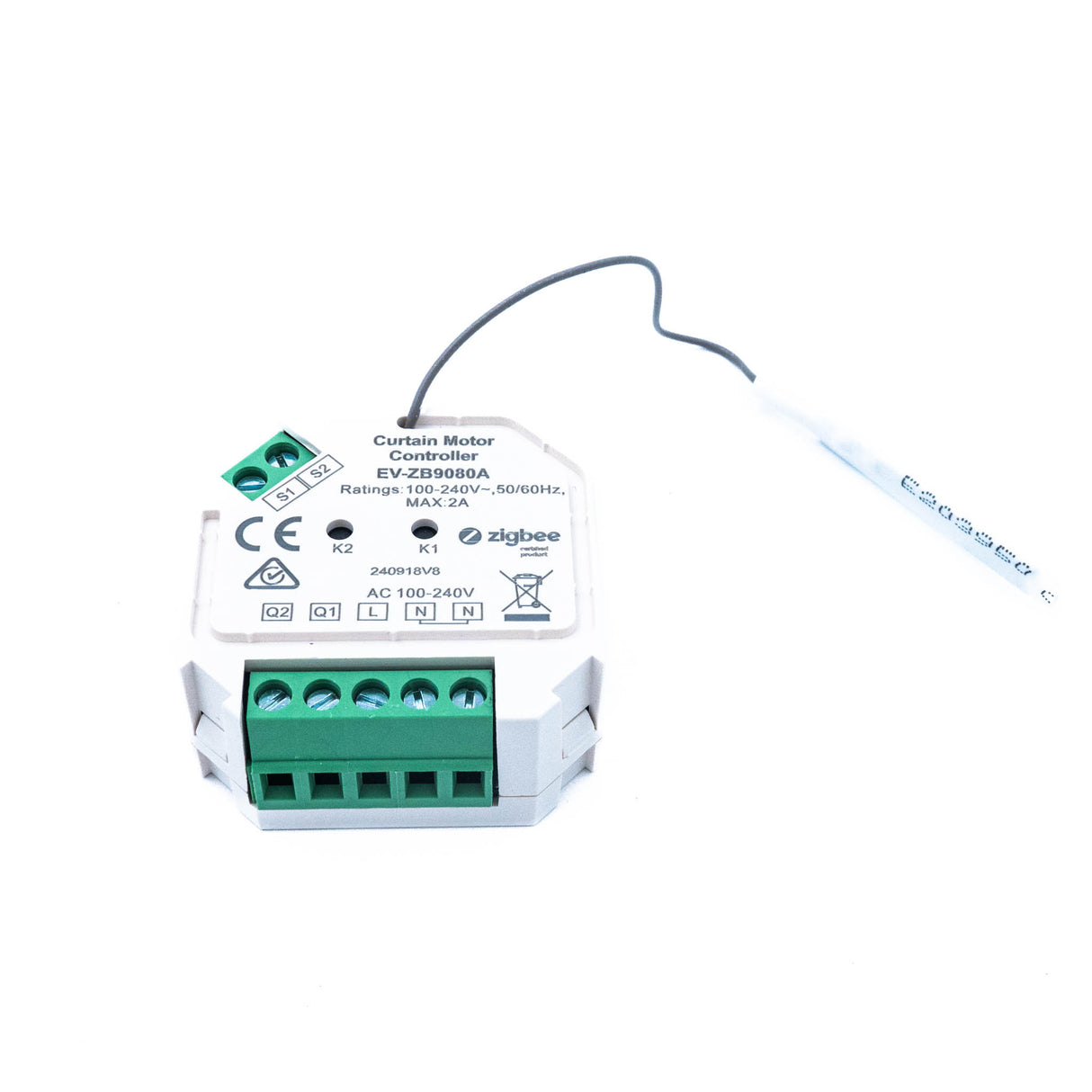

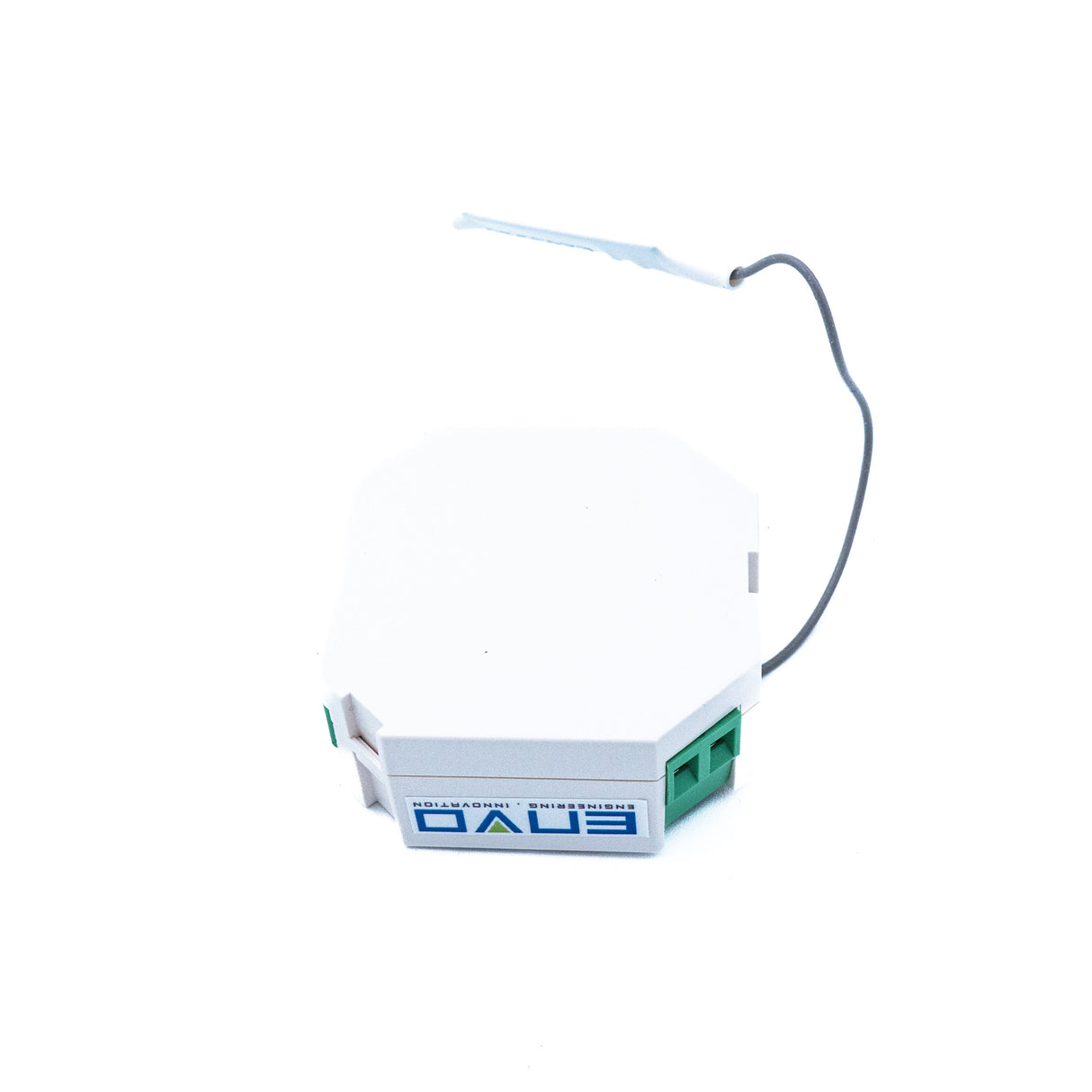

ENVO ZigBee Blinds Controller - On/Off and Level Control
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO ZigBee Blinds Controller - On/Off and Level Control
Features:
- Zigbee curtain motor controller based on latest ZigBee 3.0 protocol
- Full support for various curtain types: roller blinds, shutter blinds, drapes, etc.
- Controlled by smart app or directly by zigbee remote
- Local control with external switches even if not added to a zigbee network
- Accurate control, supports both ON/OFF and level control
- ZigBee end device that supports Touchlink commissioning
- Supports self-forming zigbee network without coordinator
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power feature and can bind max. 20 zigbee green power remotes
- Compatible with universal ZigBee gateway products
- Waterproof grade: IP20
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
General Specification
Zigbee Protocol
Zigbee 3.0
Input Voltage
AC100-240V
Output Voltage
AC100-240V
Max. Load Current
2A
Relative Humidity
8% to 80%
Operating Temperature
0 to 40°C
Dimension (LxWxH)
45.5x45x20.3mm
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Rated Current2 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlZigbee
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~40°C
-
Warranty5 Year
-
Length1.79 in
-
Width1.77 in
-
Height0.8 in
::specification::
Frequently Asked Questions
What is the ENVO ZigBee Blinds Controller used for?
This model is designed for ZigBee-based control of motorized window coverings such as roller blinds, shutter blinds, and drapes. It supports both simple open/close operation and level control for more precise positioning. That makes it suitable for commercial or smart-building blind control applications that use ZigBee.
Does this controller support both on/off and level control?
Yes. The EV-ZB9080A supports both ON/OFF control and level control, so it can handle basic movement commands as well as more accurate adjustment. This is one of the main differentiators called out for this model.
Is the EV-ZB9080A compatible with ZigBee 3.0 systems?
Yes, this controller is based on the ZigBee 3.0 protocol. It is also described as compatible with universal ZigBee gateway products, which helps it fit into a wide range of ZigBee ecosystems. It also supports Touchlink commissioning, find and bind mode, and ZigBee Green Power features.
Can this blinds controller work with ZigBee remotes?
Yes. It can be controlled directly by a ZigBee remote and supports find and bind mode for remote binding. It also supports ZigBee Green Power and can bind up to 20 ZigBee Green Power remotes.
What electrical rating does this controller have?
The ENVO ZigBee Blinds Controller is rated for AC100-240V input and AC100-240V output. Its maximum load current is 2A. These published ratings should be used when evaluating whether the device matches the intended blind motor control application.
Where can this controller be used environmentally?
This model is intended for indoor environments, with an operating temperature range of 0 to 40°C and relative humidity from 8% to 80%. Its IP20 rating means it is not waterproof and should not be exposed to moisture. Those limits make it better suited to dry interior spaces rather than outdoor or wet locations.
