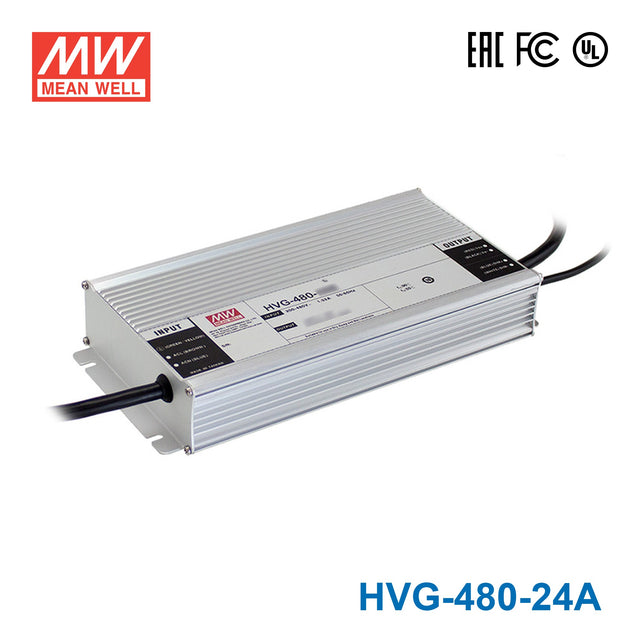

Mean Well HVG-480-24A Power Supply 480W 24V - Adjustable
The HVG-480 is a 480W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IP65 or IP67, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
::specification::
Frequently Asked Questions
Can I use the HVG-480-24A for long 24V LED strip runs in commercial signage?
Yes, it is sized for 24V signage or lighting loads up to 480W total. With a 24V output and 20A output current, it fits higher-power 24V strip lighting as long as the full connected load stays within 480W.
Is this driver suitable for 24V architectural or cove lighting projects?
It can be used for 24V architectural lighting where the total fixture load does not exceed 480W. The 24V output makes it appropriate for 24V lighting products, and the IP65 water-resistant housing helps where the driver may be exposed to dust or moisture.
Can this power supply run multiple 24V LED lighting sections from one driver?
It can support larger 24V lighting loads because it provides up to 480W and 20A. That makes it a fit for multi-section 24V lighting systems when the combined rated load remains at or below 480W.
How much 24V LED strip can the HVG-480-24A power?
Use the strip's rated power per meter and divide 480W by that number to estimate the maximum length. The math is: maximum strip length = 480W / strip watts per meter, and you should also make sure the strip is a 24V product and that the total load does not exceed 20A.
Is the HVG-480-24A okay for outdoor or wet-location lighting?
This model is rated IP65 water-resistant, so it is intended for environments where protection from water exposure and dust is needed. If your project needs a waterproof version in this power and voltage class, the sibling HVG-480-24B is the IP67 model.
