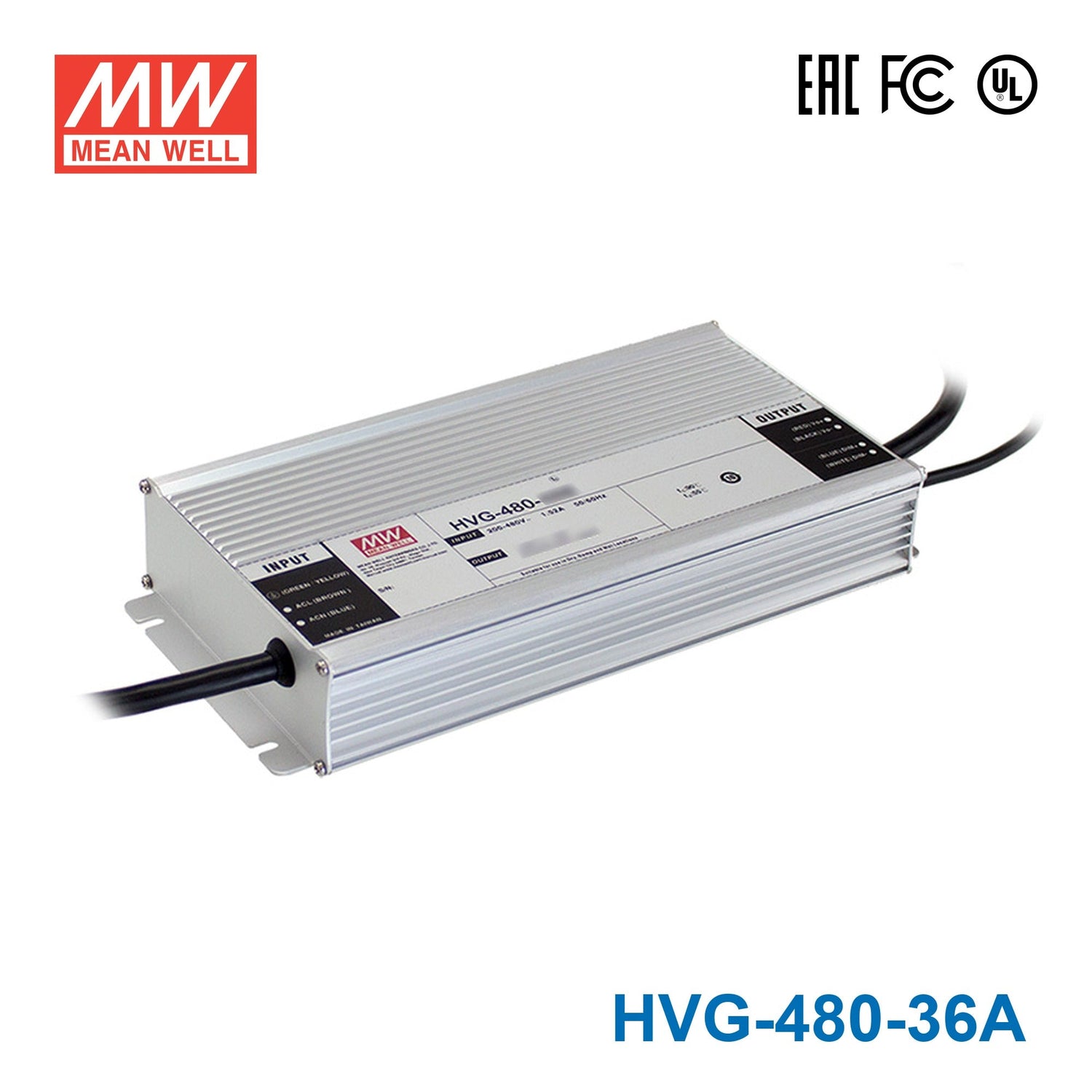

Mean Well HVG-480-36A Power Supply 480W 36V - Adjustable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC (single phase); 254~747VDC |
| AC inrush current (max.) | COLD START 40A(twidth=1100 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IP65 or IP67, EAC TP TC 004 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 262 x 1258x 43.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating478.8 Watt
-
Output Voltage36 Volt
-
Rated Current13.3 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-480-36A for 36V architectural or linear LED lighting?
Yes, if the fixture or LED load is built for 36V operation and fits within 478.8W and 13.3A. Its constant current operation and 18-36V CC range mean the load has to match that range.
Is this driver a fit for 36V sign cabinet or display lighting?
It can be used for 36V sign or display lighting when the total load stays at or below 478.8W. The 36V output and 13.3A current capacity make it a higher-power option for larger lighting assemblies.
Can the HVG-480-36A run 36V lighting from high-voltage commercial AC input?
Yes. The 180-528VAC input range makes it suitable for commercial lighting environments that use higher AC input voltages.
How do I estimate the maximum 36V LED strip length for this driver?
Use the driver's 478.8W maximum output as the limit. Maximum strip length = 478.8W divided by your strip's rated watts per meter, and check your strip rated power per meter before sizing.
Can the HVG-480-36A be used outdoors?
It is rated IP65 Water-Resistant, so it is appropriate for outdoor or damp locations where the driver has weather protection. The -40°C to +85°C operating range also supports demanding ambient conditions.
