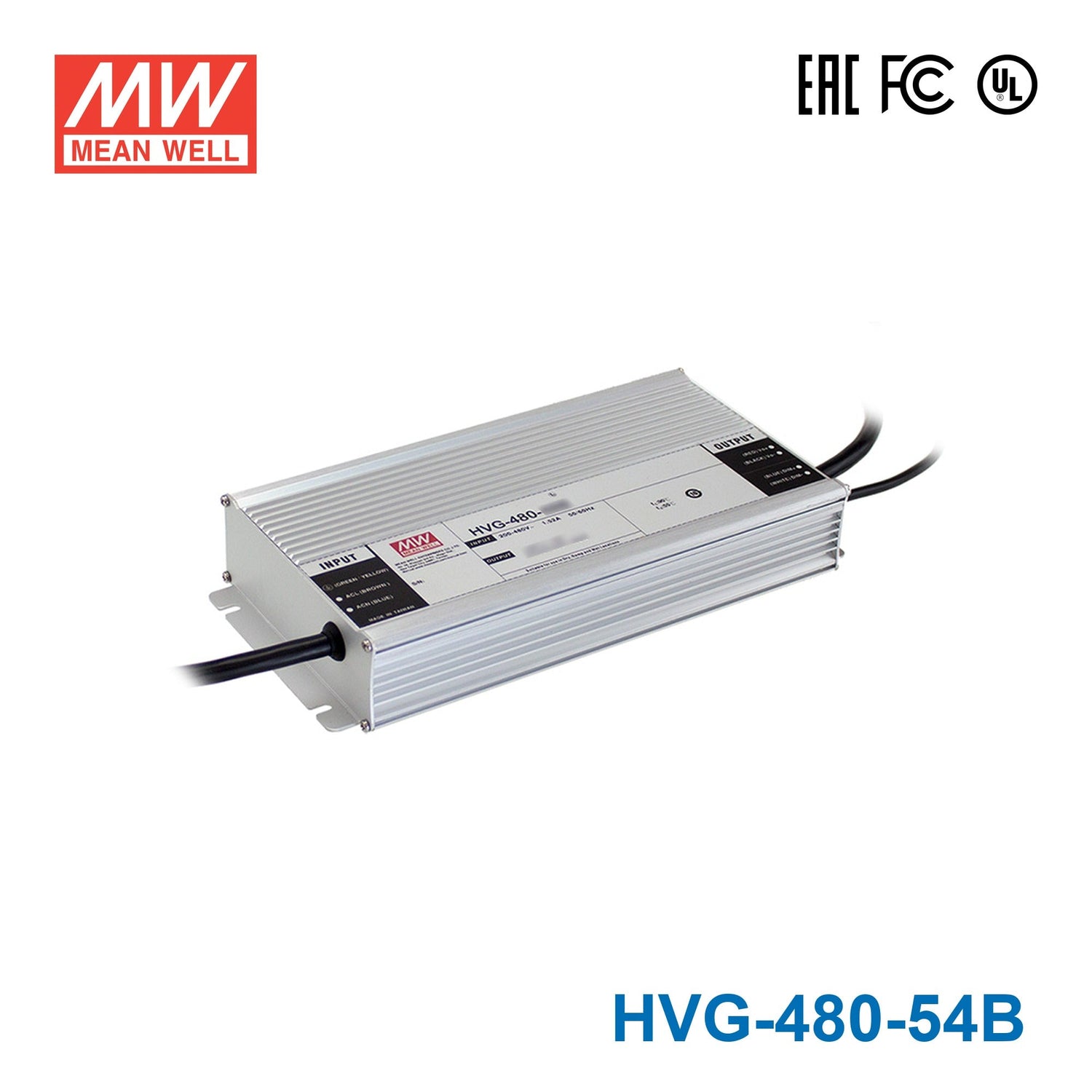

Mean Well HVG-480-54B Power Supply 480W 54V - Dimmable 8.9A
Overview
HVG-480-54B is the 54V output model of this series: rated current 8.9A, rated power 480.6W, typical efficiency 95%.
HVG-480 series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-480 operates from 180~528VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 95%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-480 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Wide input range 180 ~ 528VAC
- Constant Voltage + Constant Current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 54V
- CONSTANT CURRENT REGIONNote.4
- 27 ~ 54V
- RATED CURRENT
- 8.9A
- RATED POWER
- 480.6W
- RIPPLE & NOISE (max.)Note.2
- 350mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 45.9 ~ 56.7V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 4.4 ~ 8.9A
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.6
- 500ms, 100ms / 230VAC, 347VAC, 480VAC
- HOLD UP TIME (Typ.)
- 16ms / 347VAC, 480VAC
INPUT
- VOLTAGE RANGENote.5
- 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.95/480VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧50% at 230VAC/277VAC/347VAC/480VAC input Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
- EFFICIENCY (Typ.)
- 95%
- AC CURRENT (Typ.)
- 1.52A / 347VAC 1.15A / 480VAC
- INRUSH CURRENT(Typ.)
- COLD START 40A(twidth=1100μs measured at 50% Ipeak) at 480VAC ; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC
- LEAKAGE CURRENT
- <0.75mA / 480VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 58 ~ 65V Shut down output voltage, re-power on to recovery
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recovery
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IP65 or IP67, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to FCC Part 15 Subpart B, EAC TP TC 020
- EMC IMMUNITY
- Immunity Line-Earth 4KV, Line-Line 2KV, EAC TP TC 020
OTHERS
- MTBF
- 318.9K hrs min. Telcordia SR-332(Bellcore) ; 84.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 262*125*43.8mm (L*W*H)
- PACKING
- 2.8Kg;4pcs/12.2Kg/0.55CUFT
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Please refer to "DRIVING METHODS OF LED MODULE".
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
- 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using.
Technical drawings
Typical applications
- LED greenhouse lighting
- LED statium lighting
- LED mining lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location
Downloads
Datasheet1
Certificates3
Test reports1
Catalogues1
FAQ
Can I use the HVG-480-54B for exposed outdoor lighting equipment?
Yes, this version is better suited to exposed wet locations because it is rated IP67 waterproof. It also operates from -40°C to +85°C, so it is intended for demanding outdoor conditions as long as the lighting load stays within 480.6W and 8.9A.
Is the HVG-480-54B appropriate for 54V signage lighting in wet areas?
It can be a strong fit for 54V signage loads where the driver may be mounted in harsher outdoor conditions. The output is 480.6W at 54V and 8.9A, and the IP67 enclosure gives it a higher ingress rating than the IP65 A and AB versions.
Can this driver run a large 54V landscape or facade lighting load?
Yes, for 54V lighting systems that need up to 480.6W total output and 8.9A current. The 27-54V constant current range makes it important to match the fixture or strip to the driver's output characteristics.
How much 54V LED strip can the HVG-480-54B handle?
The sizing formula is 480.6W ÷ strip watts per meter = maximum strip length. You should check your strip rated power per meter and confirm the strip is compatible with this 54V driver output before using that estimate.
How does the HVG-480-54B compare with other 54V B-series models?
Within the 54V B versions shown here, the outputs step through 95.58W at 1.77A, 150.12W at 2.78A, 243W at 4.5A, 324W at 6A, and 480.6W at 8.9A. The HVG-480-54B is the largest 54V B-series option in that group.
