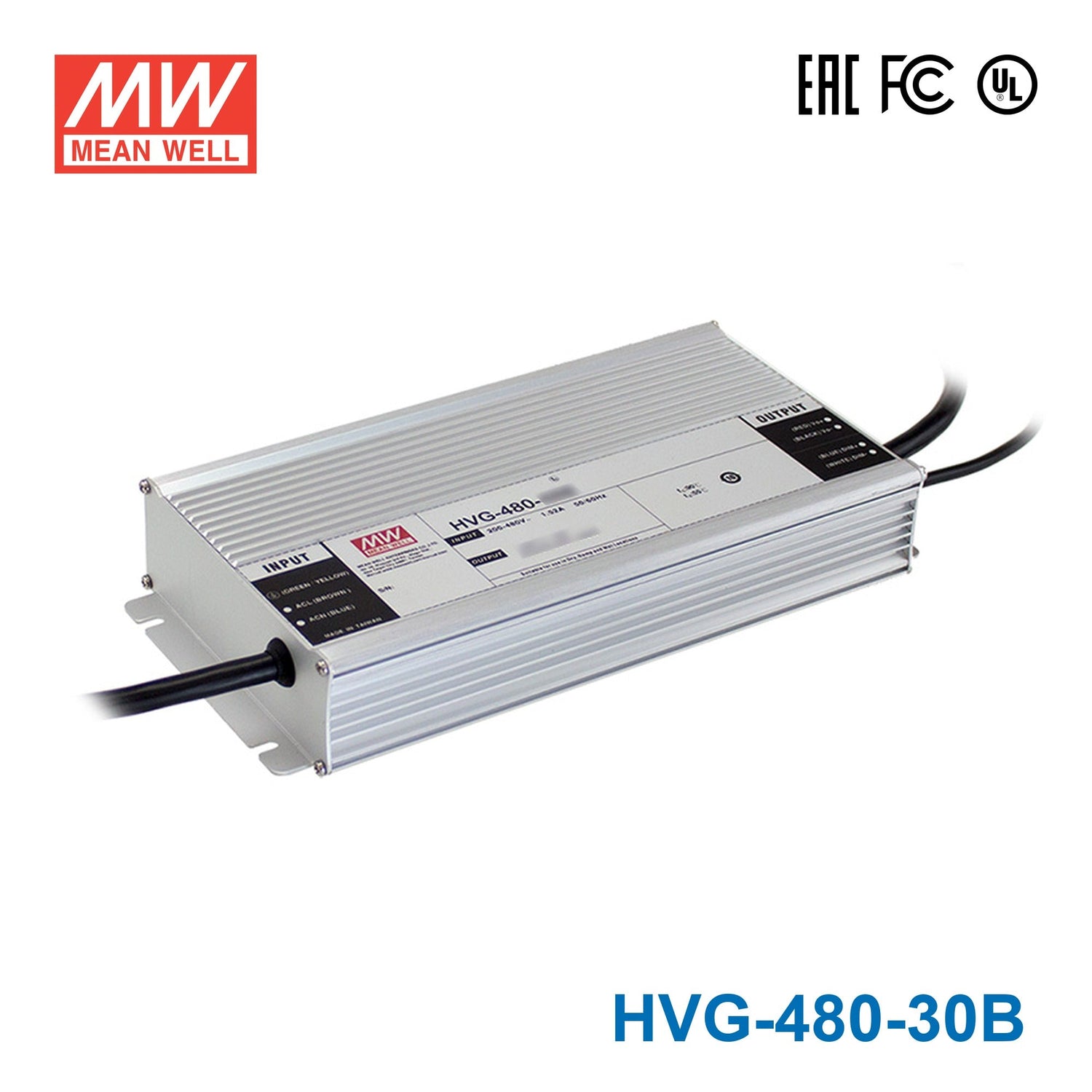

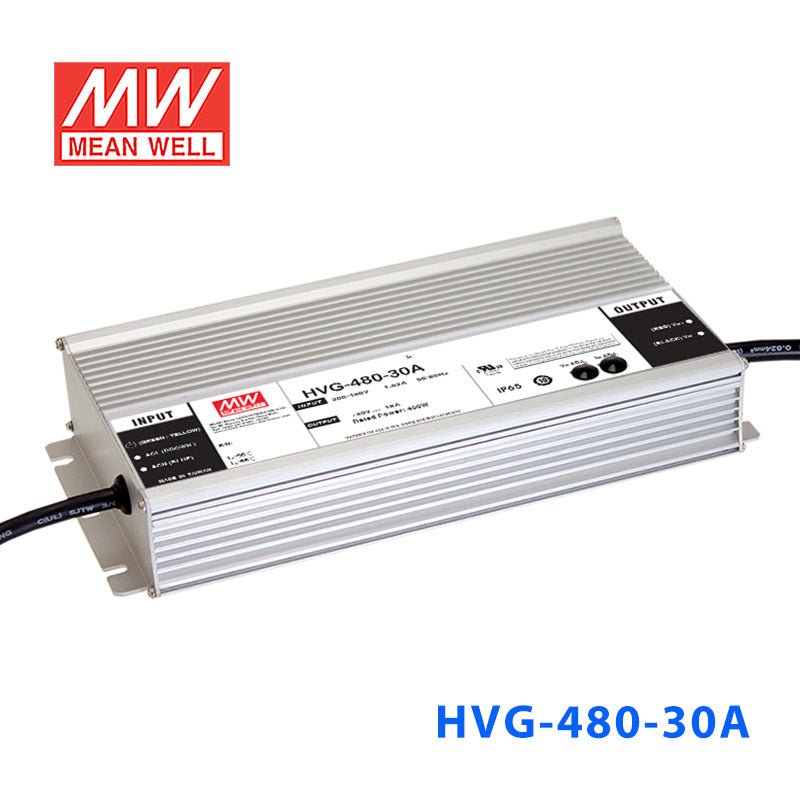

Mean Well HVG-480-30B Power Supply 480W 30V - Dimmable

Name: Mean Well HVG-480-30B Power Supply 480W 30V - Dimmable 16A
Brand: Mean Well
SKU: HVG-480-30B
Price: 169.75 USD
Availability: InStock

Overview

HVG-480-30B is the 30V output model of this series: rated current 16A, rated power 480W, typical efficiency 94%.

HVG-480 series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-480 operates from 180~528VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 95%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-480 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-480-30BSpecifications from the official datasheet (2018-09-30 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 30V
CONSTANT CURRENT REGION^Note.4: 15 ~ 30V
RATED CURRENT: 16A
RATED POWER: 480W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 25.5 ~ 31.5V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 8 ~ 16A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 100ms / 230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 16ms / 347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.95/480VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% at 230VAC/277VAC/347VAC/480VAC input Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 1.52A / 347VAC 1.15A / 480VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=1100μs measured at 50% Ipeak) at 480VAC ; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 32.5 ~ 36.5V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IP65 or IP67, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC Part 15 Subpart B, EAC TP TC 020
EMC IMMUNITY: Immunity Line-Earth 4KV, Line-Line 2KV, EAC TP TC 020

OTHERS

MTBF: 318.9K hrs min. Telcordia SR-332(Bellcore) ; 84.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 262*125*43.8mm (L*W*H)
PACKING: 2.8Kg;4pcs/12.2Kg/0.55CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using.

Technical drawings

HVG-480-30B BLOCK DIAGRAM — BLOCK DIAGRAM

HVG-480-30B DIMMING OPERATION — DIMMING OPERATION

HVG-480-30B H V G - 4 8 0 series — H V G - 4 8 0 series

HVG-480-30B OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

HVG-480-30B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-480-30B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-480-30B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED greenhouse lighting
LED statium lighting
LED mining lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location

Downloads

Datasheet1

HVG-480-30B datasheethvg_480_spec.pdf · 2018-09-30 edition PDF Download

Certificates3

Mean Well HVG-480-FCC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HVG-480-30 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-480-30B for 30V LED signage or channel letter lighting?

Yes, if the lighting load is designed for 30V operation and stays within the driver's 480W and 16A output limits. This model is a constant current LED driver with a 15-30V CC range, so the load needs to match that operating range.

Is the HVG-480-30B suitable for long 30V LED strip lighting runs?

It can support longer 30V lighting runs because it provides up to 480W at 30V. The key check is that the total connected 30V load does not exceed 16A or 480W.

Can this driver be used on commercial building power like 277V or 480V AC for lighting projects?

Yes. Its 180-528VAC input range covers common higher-voltage commercial power, which makes it suitable for signage and lighting projects in commercial facilities.

How much 30V LED strip can the HVG-480-30B support?

The maximum load is 480W. To estimate strip length, use 480W divided by your strip's rated watts per meter, and check your strip rated power per meter before sizing.

Is the HVG-480-30B okay for outdoor or wet locations?

This model is rated IP67 Waterproof, so it is intended for outdoor and wet-location lighting use. Its operating temperature range is -40°C to +85°C, which also supports use in very cold or very hot environments.
