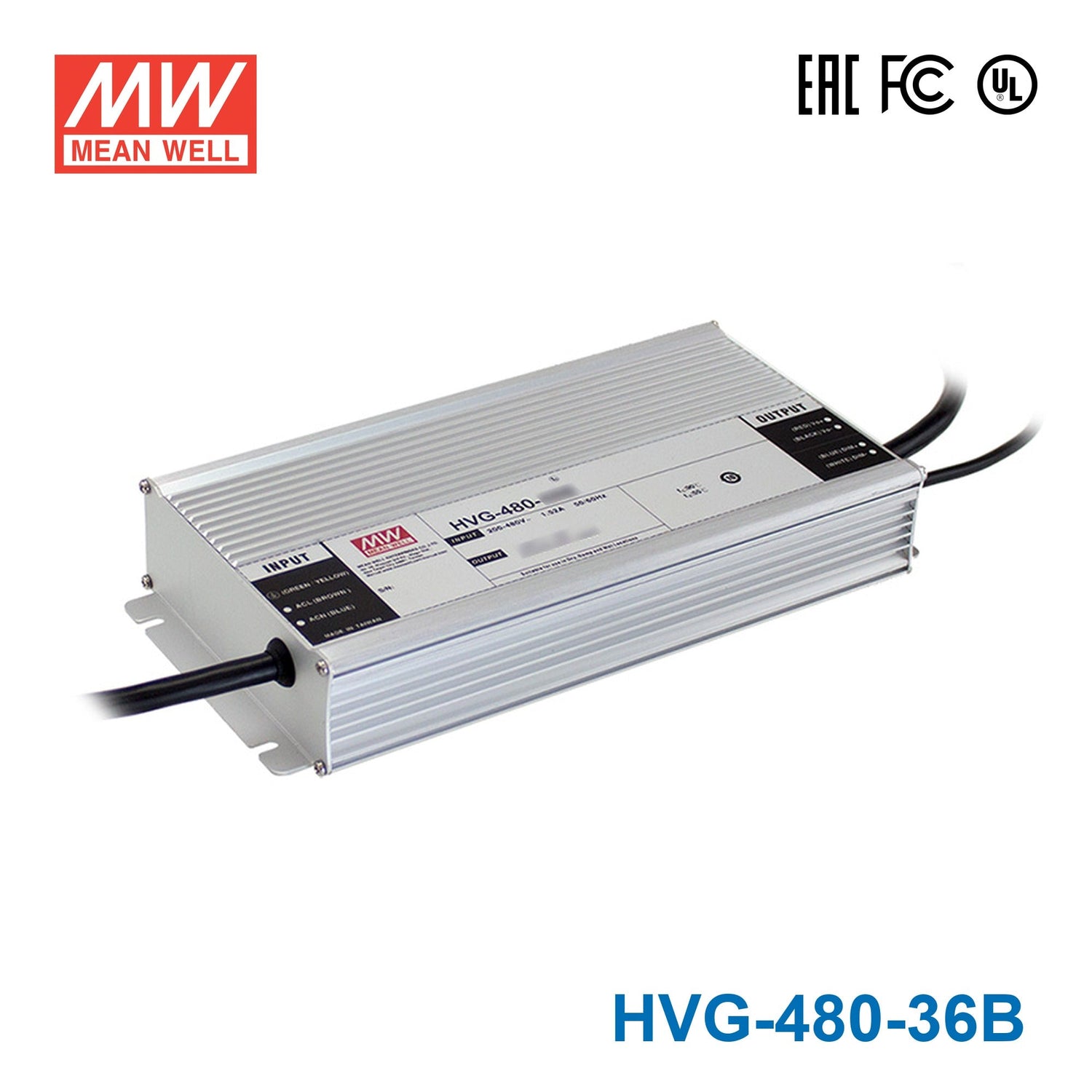

Mean Well HVG-480-36B Power Supply 480W 36V - Dimmable

Name: Mean Well HVG-480-36B Power Supply 480W 36V - Dimmable 13.3A
Brand: Mean Well
SKU: HVG-480-36B
Price: 169.75 USD
Availability: InStock

Overview

HVG-480-36B is the 36V output model of this series: rated current 13.3A, rated power 478.8W, typical efficiency 94.5%.

HVG-480 series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-480 operates from 180~528VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 95%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-480 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-480-36BSpecifications from the official datasheet (2018-09-30 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.4: 18 ~ 36V
RATED CURRENT: 13.3A
RATED POWER: 478.8W
RIPPLE & NOISE (max.)^Note.2: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 30.6 ~ 37.8V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 6.6 ~ 13.3A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 100ms / 230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 16ms / 347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.95/480VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% at 230VAC/277VAC/347VAC/480VAC input Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
EFFICIENCY (Typ.): 94.5%
AC CURRENT (Typ.): 1.52A / 347VAC 1.15A / 480VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=1100μs measured at 50% Ipeak) at 480VAC ; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 39.5 ~ 45V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IP65 or IP67, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC Part 15 Subpart B, EAC TP TC 020
EMC IMMUNITY: Immunity Line-Earth 4KV, Line-Line 2KV, EAC TP TC 020

OTHERS

MTBF: 318.9K hrs min. Telcordia SR-332(Bellcore) ; 84.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 262*125*43.8mm (L*W*H)
PACKING: 2.8Kg;4pcs/12.2Kg/0.55CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using.

Technical drawings

HVG-480-36B BLOCK DIAGRAM — BLOCK DIAGRAM

HVG-480-36B DIMMING OPERATION — DIMMING OPERATION

HVG-480-36B H V G - 4 8 0 series — H V G - 4 8 0 series

HVG-480-36B OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

HVG-480-36B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-480-36B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-480-36B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED greenhouse lighting
LED statium lighting
LED mining lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location

Downloads

Datasheet1

HVG-480-36B datasheethvg_480_spec.pdf · 2018-09-30 edition PDF Download

Certificates3

Mean Well HVG-480-FCC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HVG-480-36 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-480-36B for outdoor 36V sign lighting?

Yes, if the sign lighting is designed for 36V and the total load stays within 478.8W and 13.3A. Its IP67 Waterproof rating makes it the outdoor-focused 36V option in this group.

Is the HVG-480-36B suitable for 36V LED strip or linear lighting around a building exterior?

It is suitable for exterior 36V lighting loads when the system matches the 18-36V CC range and stays below 478.8W. That makes it a practical choice for larger 36V perimeter or facade lighting loads.

Can this driver be used with high-voltage AC service for commercial outdoor lighting?

Yes. The 180-528VAC input range allows it to work with a broad range of commercial AC supplies for outdoor lighting applications.

How do I size 36V LED strip length with the HVG-480-36B?

Use 478.8W as the maximum available output. Maximum strip length = 478.8W divided by your strip's rated watts per meter, and check your strip rated power per meter before sizing.

Is the HVG-480-36B better for wet locations than the 36A or 36AB versions?

For ingress protection, yes. The HVG-480-36B is IP67 Waterproof, while the HVG-480-36A and HVG-480-36AB are IP65 Water-Resistant, and all three share the same 478.8W, 36V, and 13.3A output ratings.

Can the HVG-480-36B handle harsh temperature conditions outdoors?

It is rated for -40°C to +85°C operation, which supports both cold-weather and high-heat environments. Combined with the IP67 Waterproof rating, it is suited to demanding outdoor lighting conditions.
