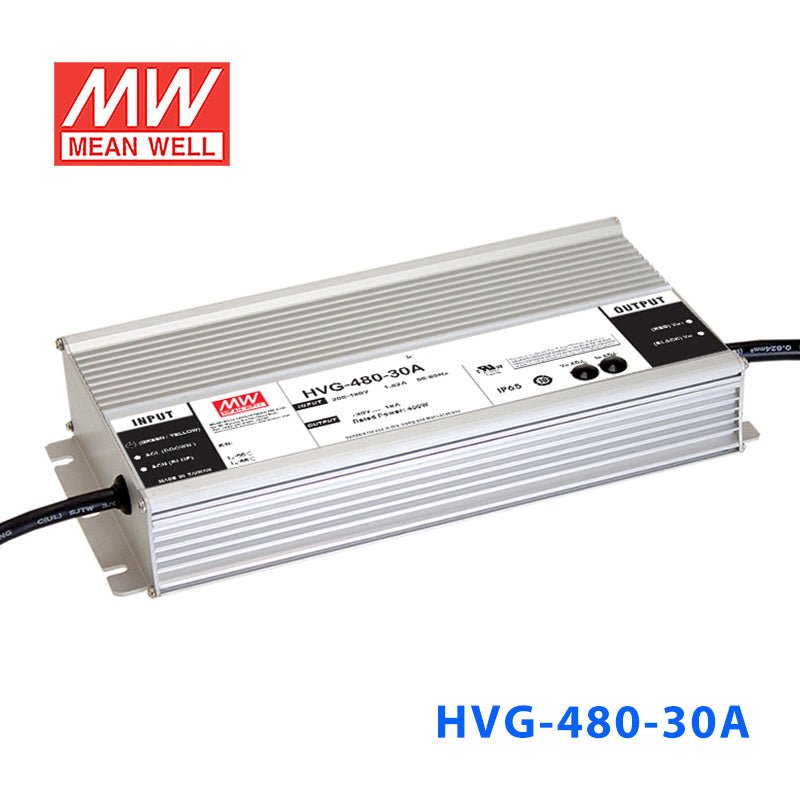

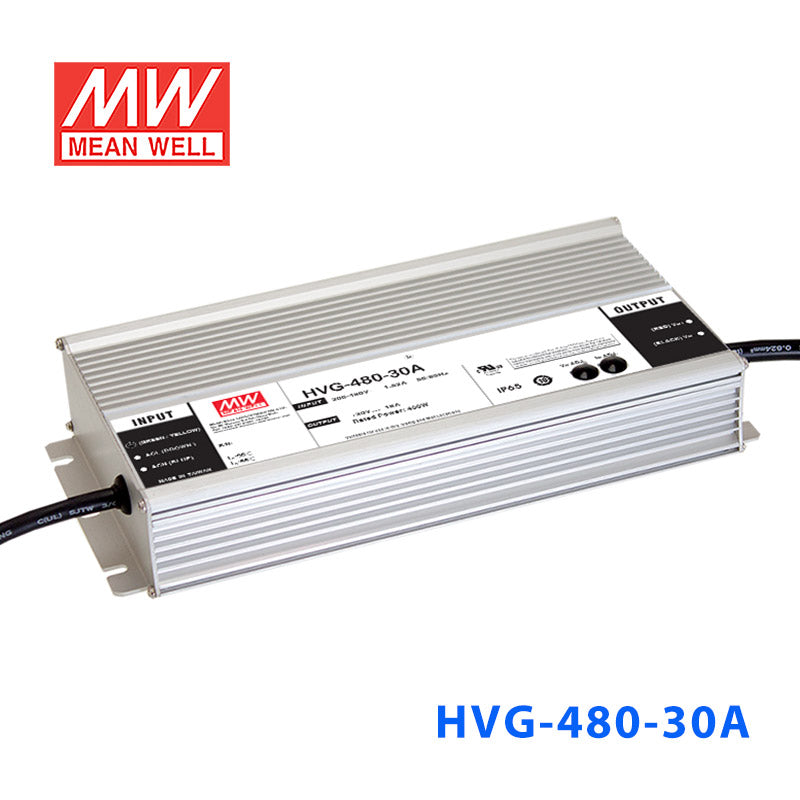

Mean Well HVG-480-30AB Power Supply 480W 30V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-480-30AB Power Supply 480W 30V - Adjustable and Dimmable
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |

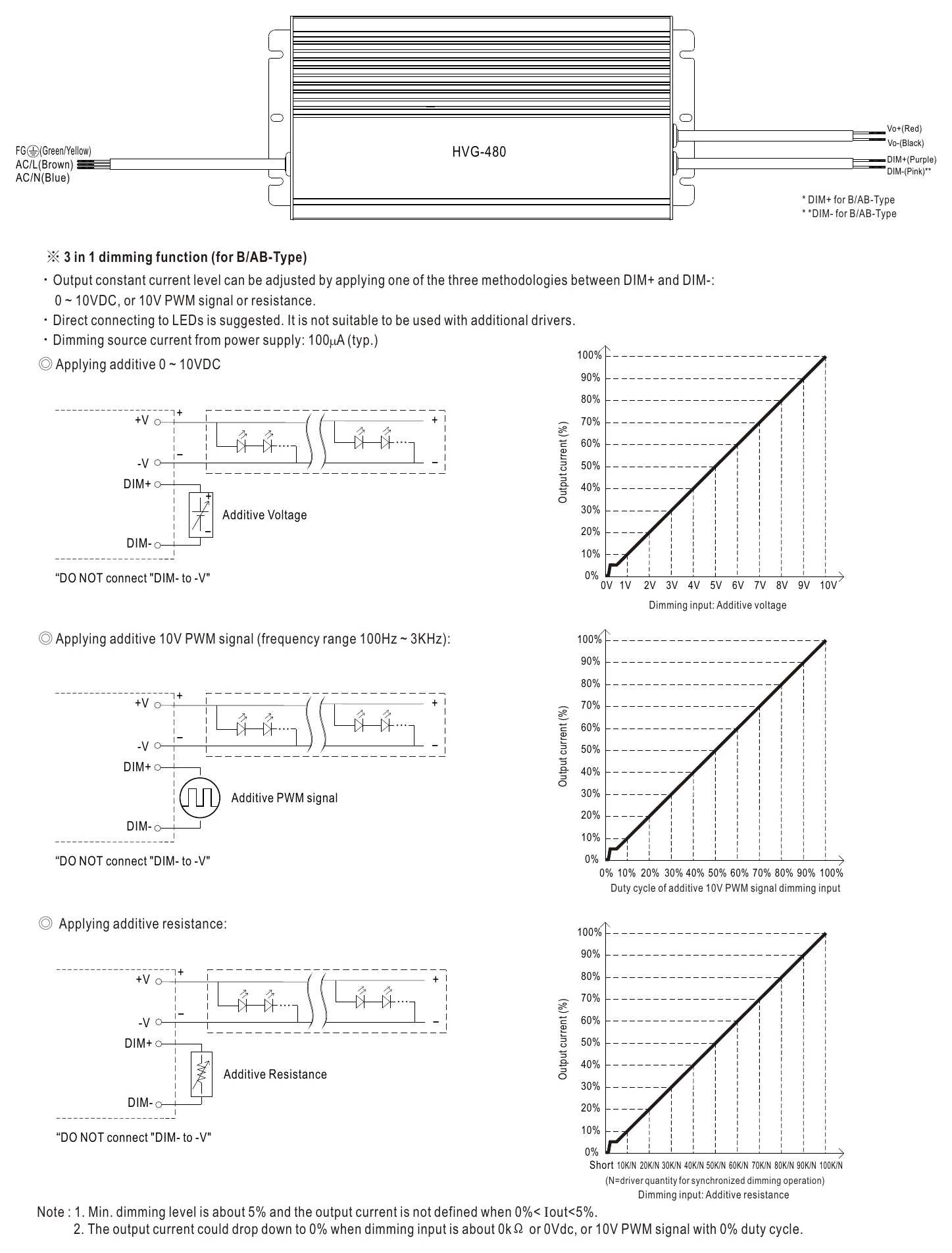

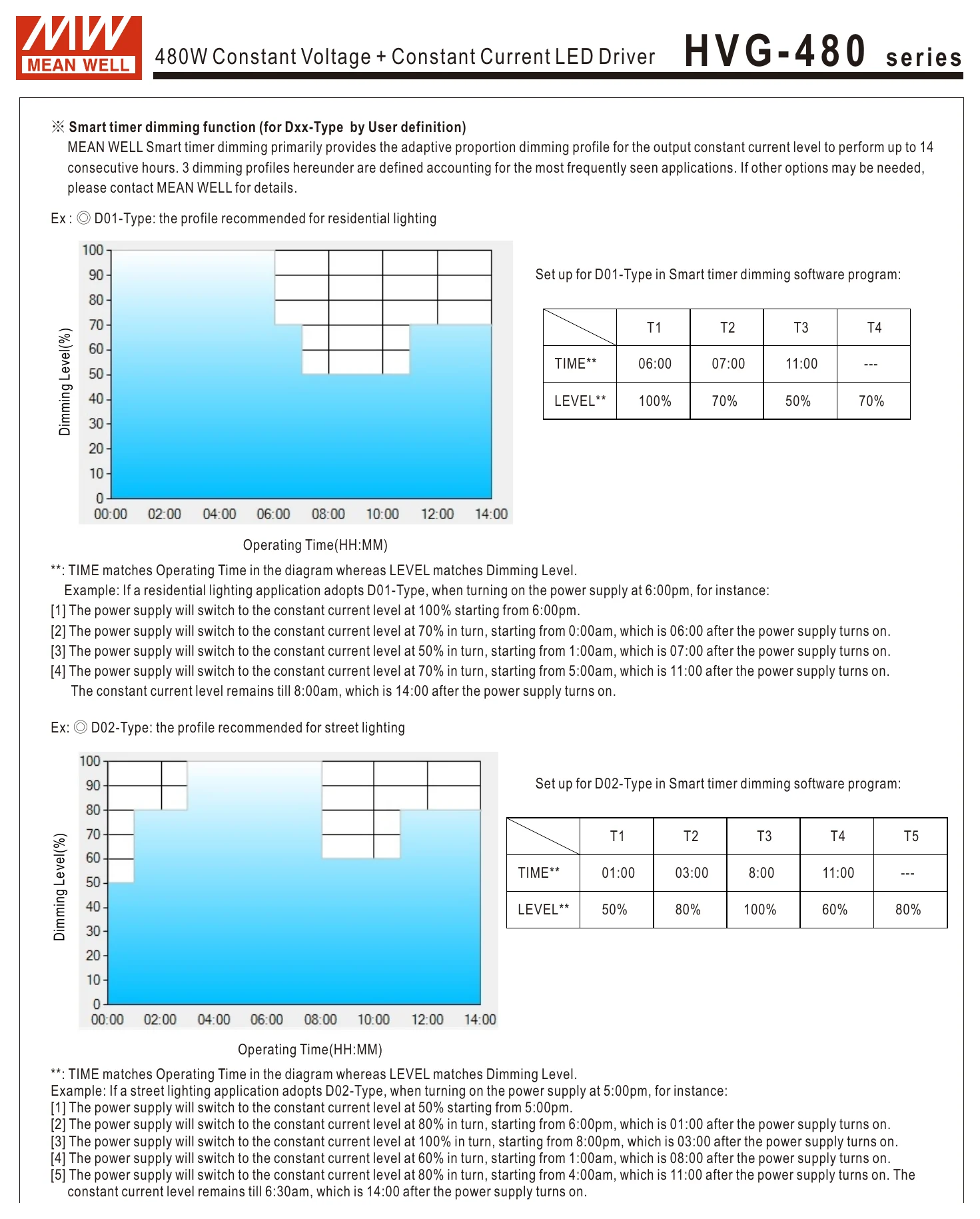

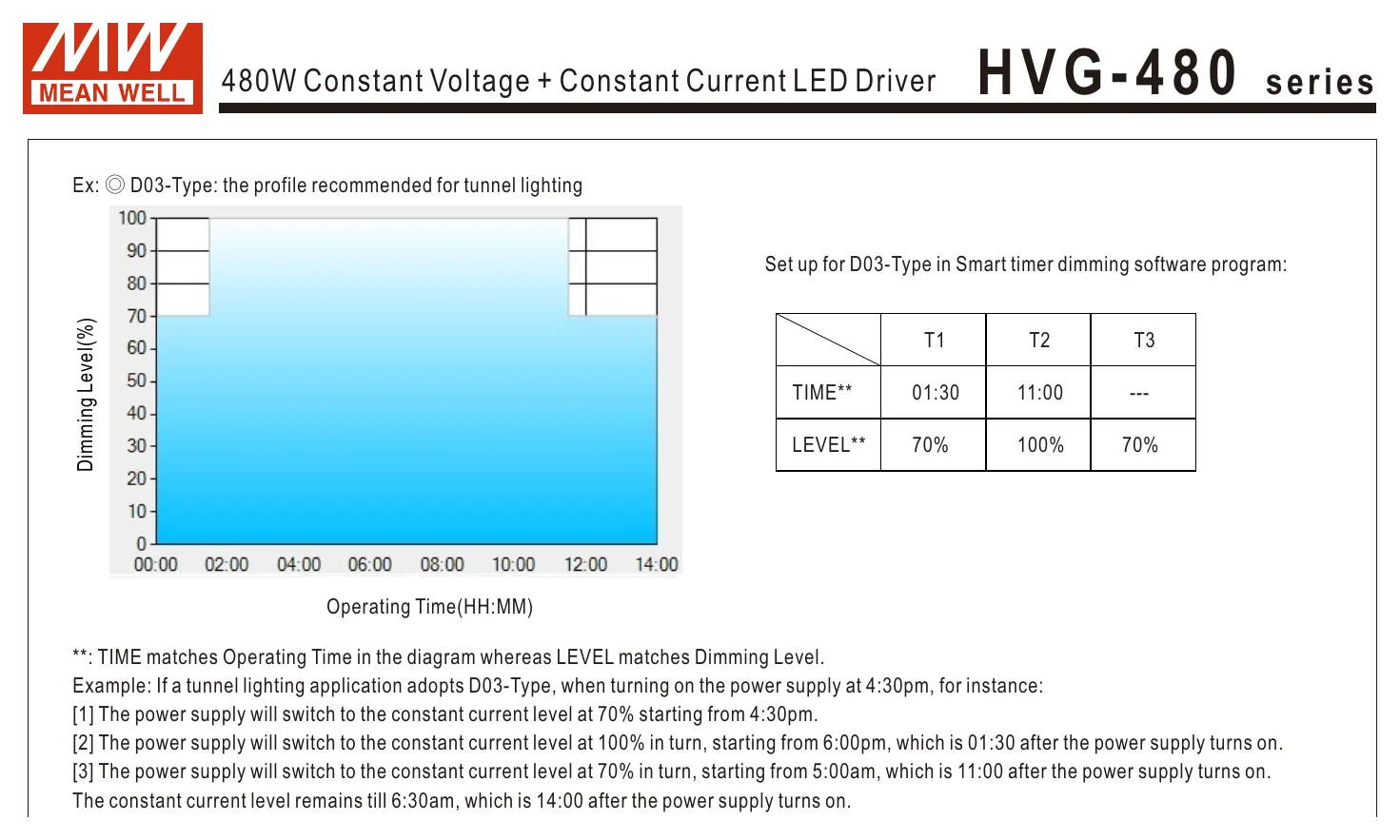

| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC (single phase); 254~747VDC |
| AC inrush current (max.) | COLD START 40A(twidth=1100 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |

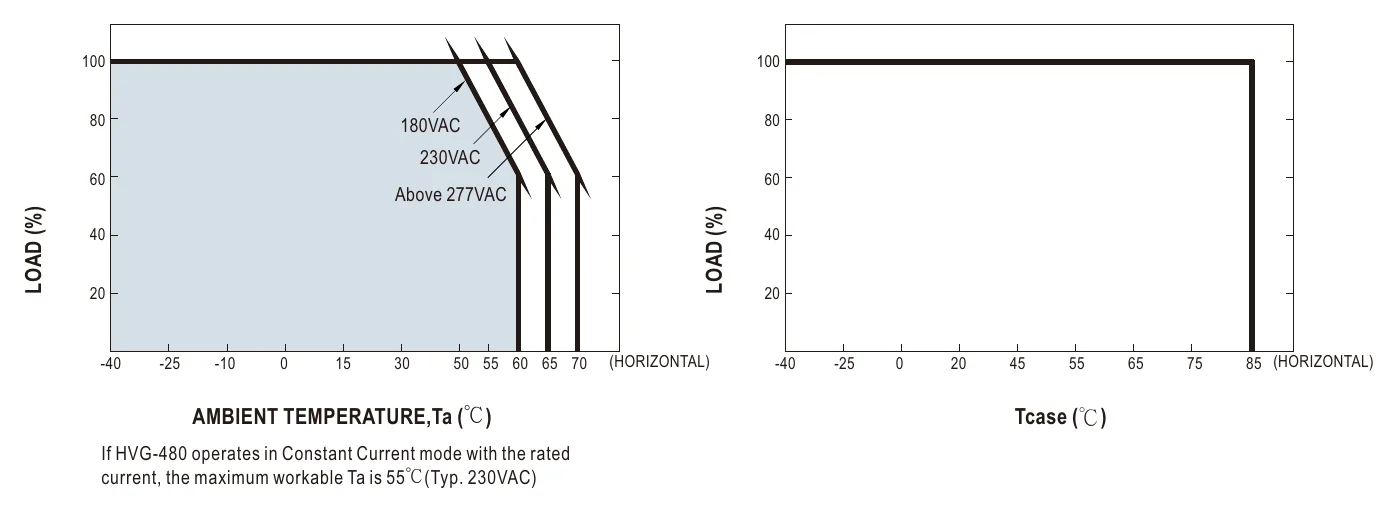

| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IP65 or IP67, EAC TP TC 004 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |

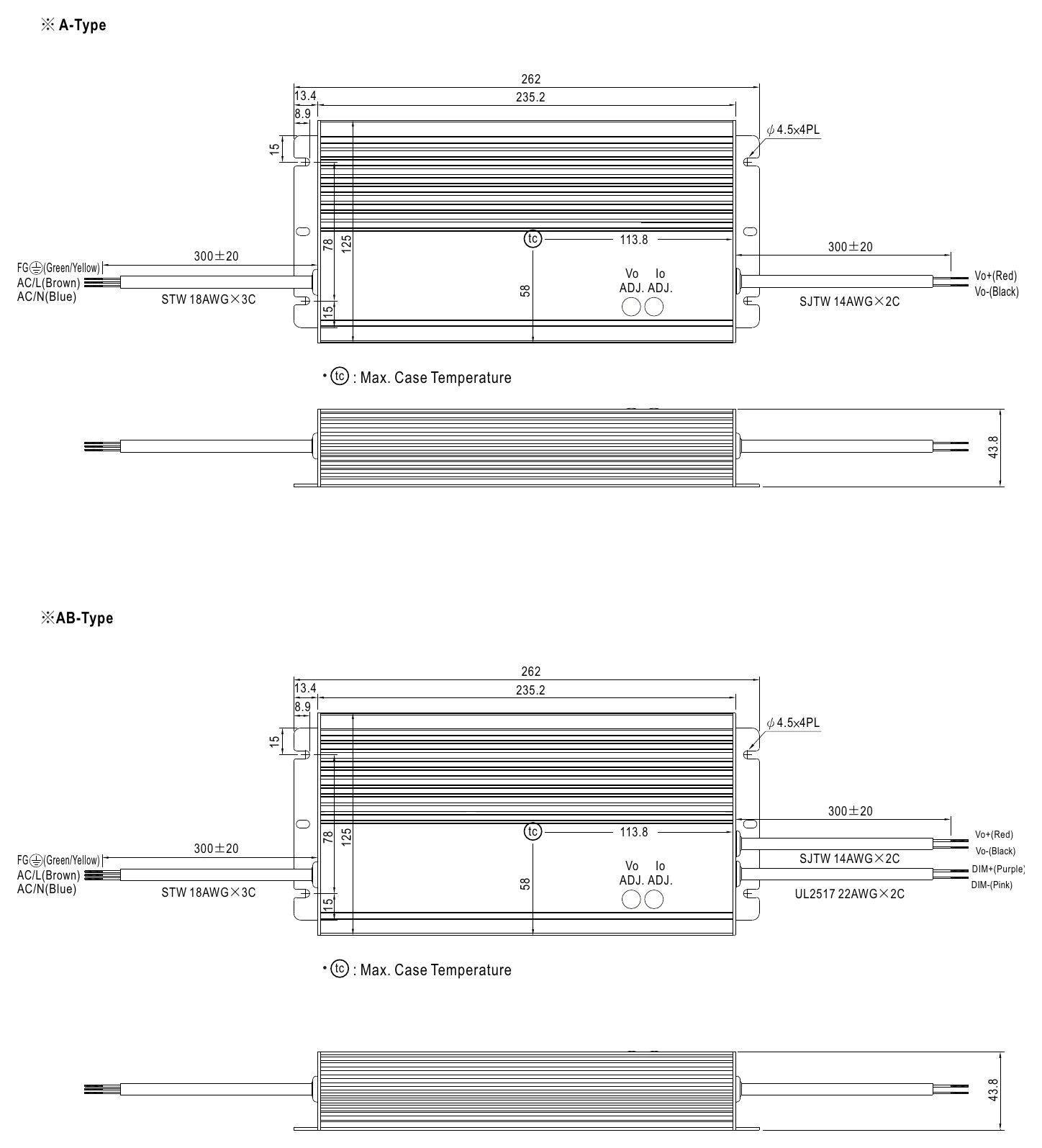

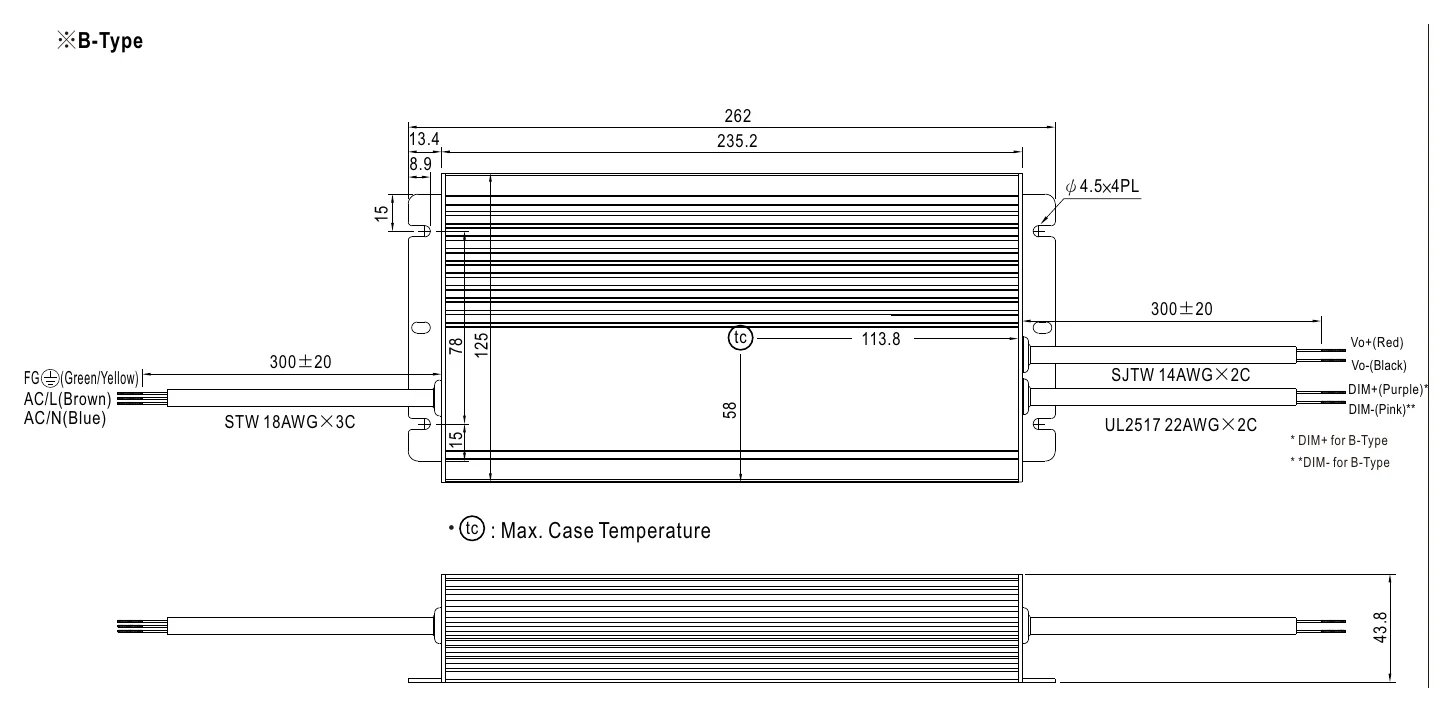

| Dimension (LxWxH) (mm) | 262 x 1258x 43.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating480 Watt
-
Output Voltage30 Volt
-
Rated Current16 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-480-30AB for dimmable 30V lighting systems?
Yes, this is the adjustable and dimmable 30V version in the 480W class. It provides up to 16A at 30V, so it fits larger 30V lighting loads that need a dimmable driver.
Is the HVG-480-30AB suitable for 30V sign lighting with brightness control?
It can be used for 30V signage or lighting products up to 480W total, and the AB version is the adjustable and dimmable option. The driver's 30V output and 16A current rating support higher-load 30V systems within its rated capacity.
Can this model run 30V commercial or display lighting in damp areas?
Yes, for 30V lighting products whose combined load stays at or below 480W. Its IP65 water-resistant enclosure makes it suitable where moisture resistance is needed, while the operating temperature range is -40°C to +85°C.
How much 30V LED strip can the HVG-480-30AB power?
Estimate the length by dividing the driver's 480W maximum by the strip's rated watts per meter. The formula is: maximum strip length = 480W / strip watts per meter, and you should confirm the strip is 30V and that total current remains within 16A.
How does the HVG-480-30AB compare with the other 30V 480W HVG models?
HVG-480-30A, HVG-480-30AB, and HVG-480-30B all share the same electrical rating of 480W, 30V, and 16A. The main distinction is version type, while adjacent 480W voltage options are 24V at 20A, 36V at 13.3A, 42V at 11.4A, 48V at 10A, and 54V at 8.9A.
