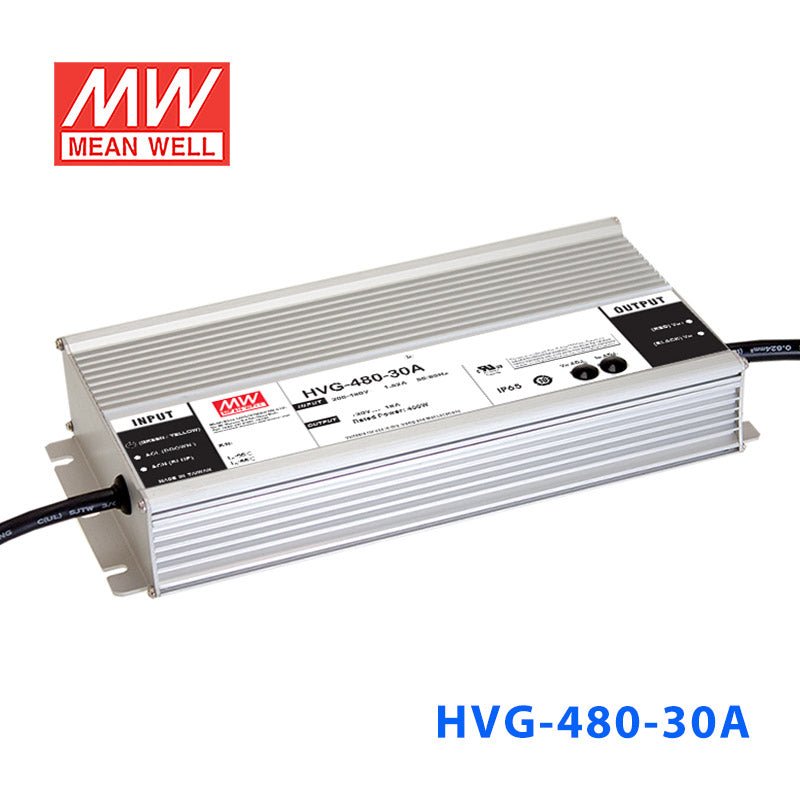

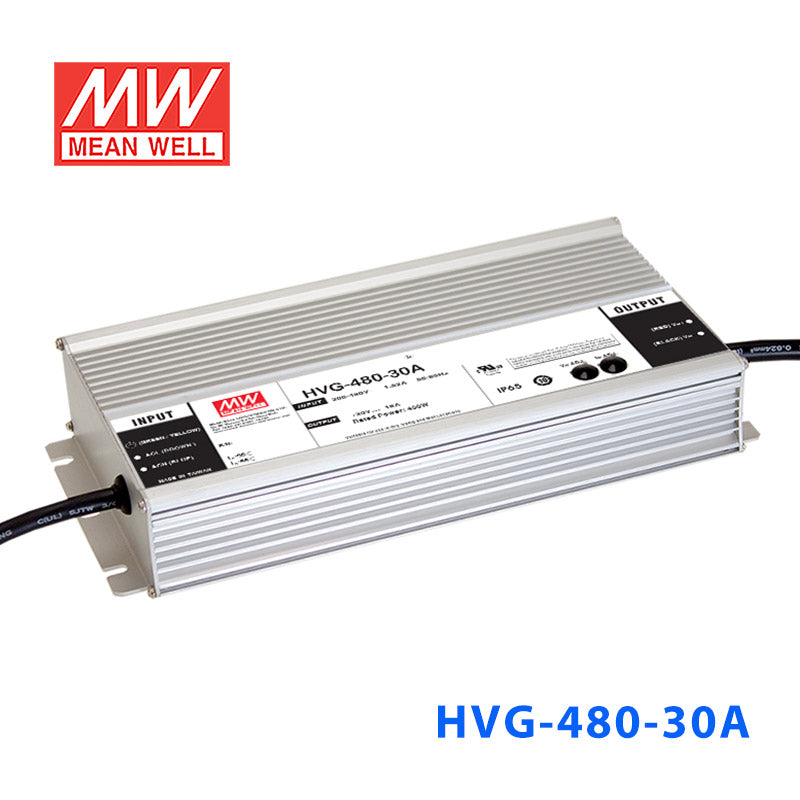

Mean Well HVG-480-30A Power Supply 480W 30V - Adjustable 16A
Overview
HVG-480-30A is the 30V output model of this series: rated current 16A, rated power 480W, typical efficiency 94%.
HVG-480 series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-480 operates from 180~528VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 95%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-480 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Wide input range 180 ~ 528VAC
- Constant Voltage + Constant Current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 30V
- CONSTANT CURRENT REGIONNote.4
- 15 ~ 30V
- RATED CURRENT
- 16A
- RATED POWER
- 480W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 25.5 ~ 31.5V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 8 ~ 16A
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.6
- 500ms, 100ms / 230VAC, 347VAC, 480VAC
- HOLD UP TIME (Typ.)
- 16ms / 347VAC, 480VAC
INPUT
- VOLTAGE RANGENote.5
- 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.95/480VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧50% at 230VAC/277VAC/347VAC/480VAC input Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
- EFFICIENCY (Typ.)
- 94%
- AC CURRENT (Typ.)
- 1.52A / 347VAC 1.15A / 480VAC
- INRUSH CURRENT(Typ.)
- COLD START 40A(twidth=1100μs measured at 50% Ipeak) at 480VAC ; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC
- LEAKAGE CURRENT
- <0.75mA / 480VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 32.5 ~ 36.5V Shut down output voltage, re-power on to recovery
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recovery
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IP65 or IP67, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to FCC Part 15 Subpart B, EAC TP TC 020
- EMC IMMUNITY
- Immunity Line-Earth 4KV, Line-Line 2KV, EAC TP TC 020
OTHERS
- MTBF
- 318.9K hrs min. Telcordia SR-332(Bellcore) ; 84.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 262*125*43.8mm (L*W*H)
- PACKING
- 2.8Kg;4pcs/12.2Kg/0.55CUFT
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Please refer to "DRIVING METHODS OF LED MODULE".
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
- 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using.
Technical drawings
Typical applications
- LED greenhouse lighting
- LED statium lighting
- LED mining lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location
Downloads
Datasheet1
Certificates3
Test reports1
Catalogues1
FAQ
Can I use the HVG-480-30A for 30V LED signage or lighting modules?
Yes, if the lighting product is designed for 30V operation and the total load does not exceed 480W. This model delivers 30V with up to 16A output current, so it is intended for higher-power 30V lighting loads.
Is this driver suitable for long 30V linear lighting runs?
It can be used for 30V linear lighting systems up to 480W total. With 30V output and 16A available, it fits larger 30V lighting loads when the fixture rating matches the driver.
Can the HVG-480-30A be used for 30V architectural lighting projects?
Yes, for 30V architectural or commercial lighting products that stay within the 480W maximum output. The IP65 water-resistant casing also helps where the driver may be used in damp or dust-prone locations.
How do I calculate the maximum 30V LED strip length this driver can power?
Use the strip's rated watts per meter and divide 480W by that figure. The math is: maximum strip length = 480W / strip watts per meter, and you should verify the strip is a 30V product and that the total current does not exceed 16A.
Can the HVG-480-30A be used outdoors?
This model is rated IP65 water-resistant, so it is suitable for outdoor or damp-location use where water resistance is needed. If your project requires the waterproof 30V sibling, compare against the HVG-480-30B version.
