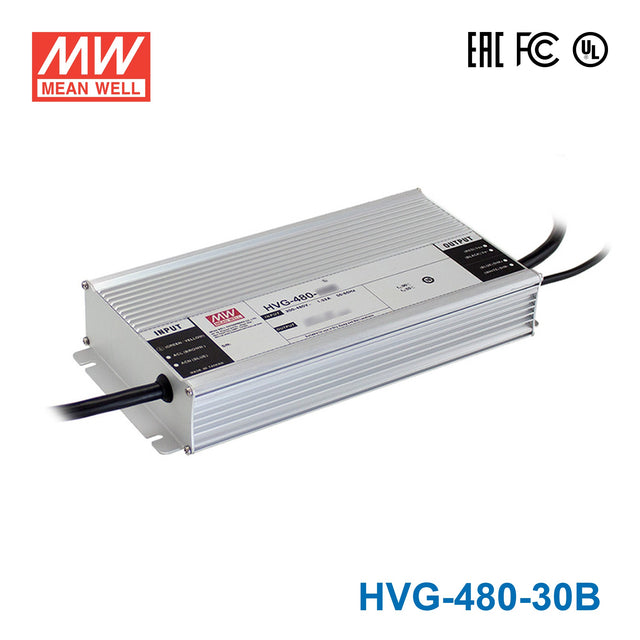

Mean Well HVG-480-30B Power Supply 480W 30V - Dimmable
The HVG-480 is a 480W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IP65 or IP67, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating480 Watt
-
Output Voltage30 Volt
-
Rated Current16 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
::specification::
Frequently Asked Questions
Can I use the HVG-480-30B for 30V LED signage or channel letter lighting?
Yes, if the lighting load is designed for 30V operation and stays within the driver's 480W and 16A output limits. This model is a constant current LED driver with a 15-30V CC range, so the load needs to match that operating range.
Is the HVG-480-30B suitable for long 30V LED strip lighting runs?
It can support longer 30V lighting runs because it provides up to 480W at 30V. The key check is that the total connected 30V load does not exceed 16A or 480W.
Can this driver be used on commercial building power like 277V or 480V AC for lighting projects?
Yes. Its 180-528VAC input range covers common higher-voltage commercial power, which makes it suitable for signage and lighting projects in commercial facilities.
How much 30V LED strip can the HVG-480-30B support?
The maximum load is 480W. To estimate strip length, use 480W divided by your strip's rated watts per meter, and check your strip rated power per meter before sizing.
Is the HVG-480-30B okay for outdoor or wet locations?
This model is rated IP67 Waterproof, so it is intended for outdoor and wet-location lighting use. Its operating temperature range is -40°C to +85°C, which also supports use in very cold or very hot environments.
