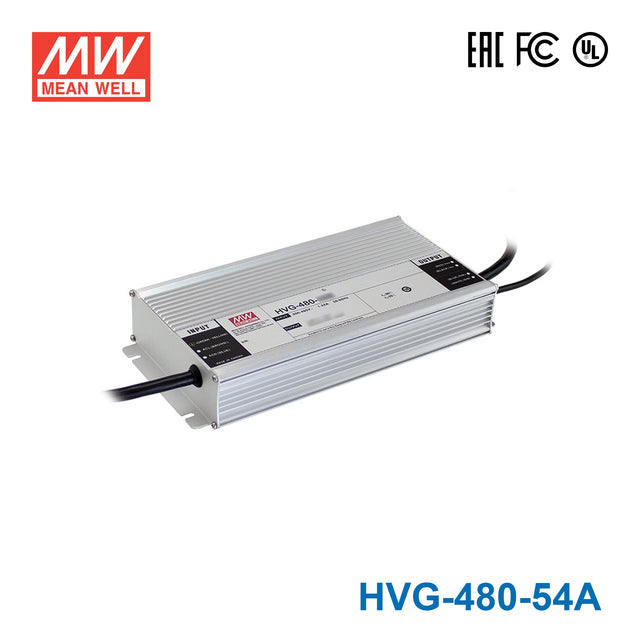

Mean Well HVG-480-54A Power Supply 480W 54V - Adjustable
The HVG-480 is a 480W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IP65 or IP67, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating480.6 Watt
-
Output Voltage54 Volt
-
Rated Current8.9 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
::specification::
Frequently Asked Questions
Can I use the HVG-480-54A for a high-power 54V LED lighting run?
Yes, if the lighting load is designed for 54V operation and stays within 480.6W and 8.9A. This model is a constant current LED driver with a 27-54V CC range, so the fixture or strip needs to match that operating range.
Is the HVG-480-54A suitable for large illuminated signage?
It can be a fit for 54V signage lighting loads that need up to 480.6W total output. The IP65 water-resistant housing also makes it more suitable for sign cabinets or similar locations where moisture resistance matters.
Can this driver power outdoor architectural lighting?
Yes, for 54V architectural or facade lighting loads that are within 480.6W and 8.9A. Its IP65 rating and -40°C to +85°C operating temperature range make it suitable for demanding outdoor conditions, provided the overall system is designed for that environment.
How much 54V LED strip can the HVG-480-54A support?
Use the strip wattage to calculate the maximum length: 480.6W ÷ strip watts per meter = max meters. For example, the power budget is 480.6W total, but you should always check your strip rated power per meter and confirm it is designed for this 54V driver output.
What is the difference between the HVG-480-54A, HVG-480-54AB, and HVG-480-54B?
All three 54V models share the same main electrical rating: 480.6W, 54V, and 8.9A. In this 480W 54V group, the A and AB versions are IP65 water-resistant, while the B version is IP67 waterproof.
