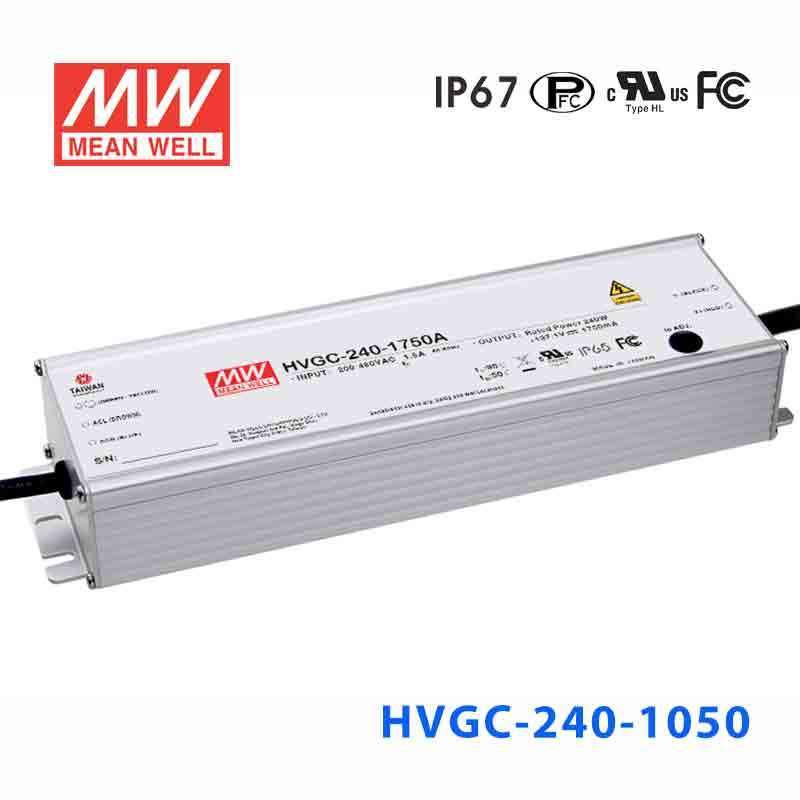

Mean Well HVGC-240-1050A Power Supply 240W 1050mA - Adjustable
The HVGC-240 is a 240W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/EN61347-1,IEC/EN61347-2-13, EN62384 independent, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating240 Watt
-
Output Voltage235 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.98 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-240-1050A for high-power LED downlights?
Yes, if the downlight system is designed for 1050mA constant current operation and its total forward voltage falls within 114-228V. This driver is intended for constant current LED loads, not constant voltage LED products.
Is the HVGC-240-1050A suitable for larger LED signage modules or small LED arrays?
It can be used for larger constant current LED assemblies that need 1050mA and stay within the 114-228V output window. With a 240W rating, it is suited to higher-power LED loads than the 150W models in the same series.
Can this driver be used for commercial or industrial LED lighting arrays?
Yes, it is intended for constant current LED arrays requiring 1050mA with up to 240W available power. The wide 180-528VAC input range also makes it suitable for projects that need broad AC input compatibility.
How do I size an LED load for the HVGC-240-1050A?
The LED load must require 1050mA constant current and have a total forward voltage within 114V to 228V. The number of LEDs depends on the forward voltage of each LED or module, so sizing should be based on total series voltage rather than a fixed LED count.
Can the HVGC-240-1050A handle demanding temperature conditions?
Yes, it is rated for operation from -40°C to +90°C, which is a broader high-end temperature range than many standard LED drivers. Its IP65 water-resistant aluminium casing also supports use in demanding indoor or sheltered outdoor environments.
