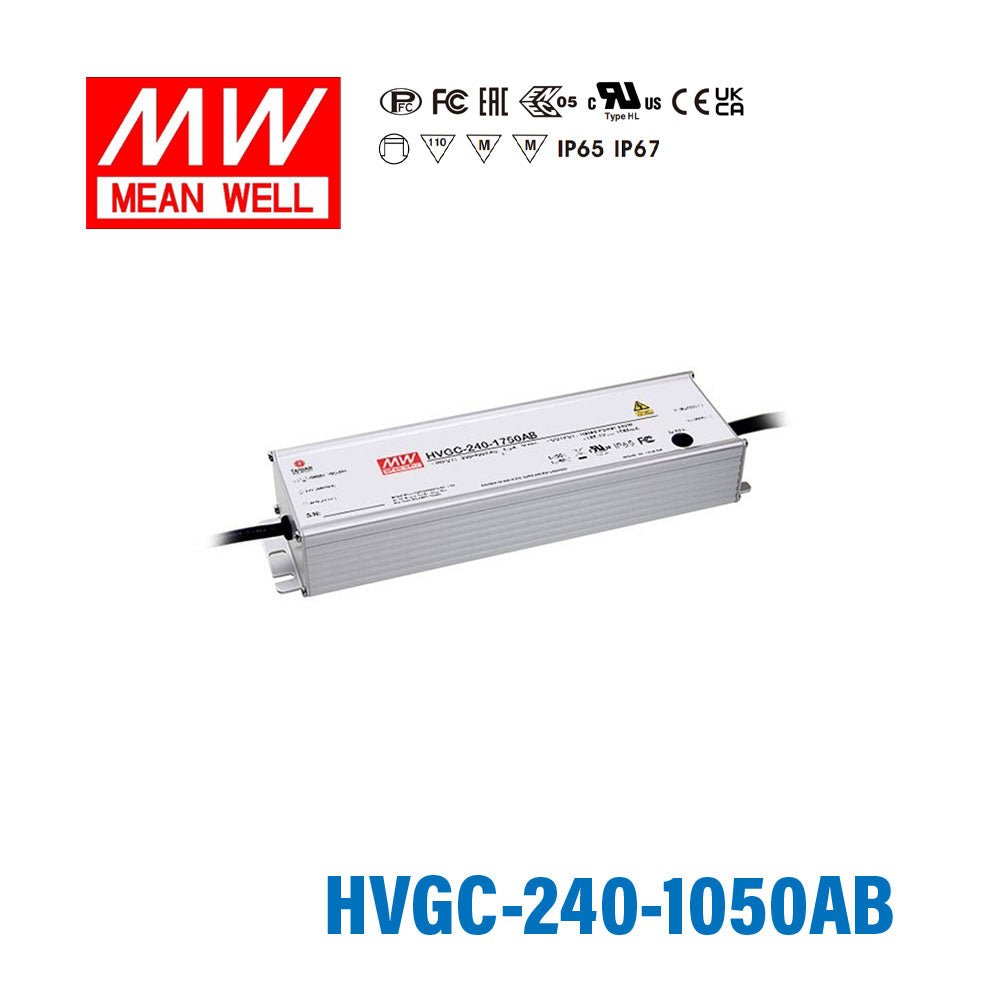

Mean Well HVGC-240-1050AB Power Supply 240W 1050mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-240-1050AB Power Supply 240W 1050mA - Adjustable and...
The HVGC-240 is a 240W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/EN61347-1,IEC/EN61347-2-13, EN62384 independent, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating240 Watt
-
Output Voltage235 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.98 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-240-1050AB for high-power LED downlights?
Yes, this driver is built for constant current LED loads at 1050mA with a 114-228V constant current output range. That makes it suitable for LED downlight assemblies whose total forward voltage falls within that range, not for constant voltage products that expect a fixed 12V or 24V supply.
Is the HVGC-240-1050AB suitable for LED signage modules?
It can work for signage modules if the module string is designed for constant current operation at 1050mA and the combined forward voltage stays within 114-228V. It is not the right choice for constant voltage signage modules that are rated for fixed-voltage input.
Can this driver run a small LED array for architectural or display lighting?
Yes, if the LED array is a constant current load at 1050mA and its total forward voltage is within the 114-228V range. With 240W output power and an aluminium case, it fits higher-power LED array builds better than low-power constant current drivers.
How do I know if my LED load is compatible with the HVGC-240-1050AB?
Match the driver to a constant current LED load that requires 1050mA, with a total forward voltage inside the 114-228V constant current range. The number of LEDs depends on the forward voltage of each LED, so compatibility is determined by total string voltage rather than a fixed LED count.
What are the main differences between the HVGC-240-1050AB and other 240W HVGC constant current models?
In the 240W HVGC range, the 700mA models use a 171-342V CC range, 1050mA models use 114-228V, 1400mA models use 85-171V, 1750mA models use 68-137V, 2100mA models use 57-114V, 2800mA models use 42-85V, and 3500mA models use 34-68V. The 1050AB shares the same 240W electrical class as the A and B versions, so the main electrical selection point is output current and matching CC voltage range.
