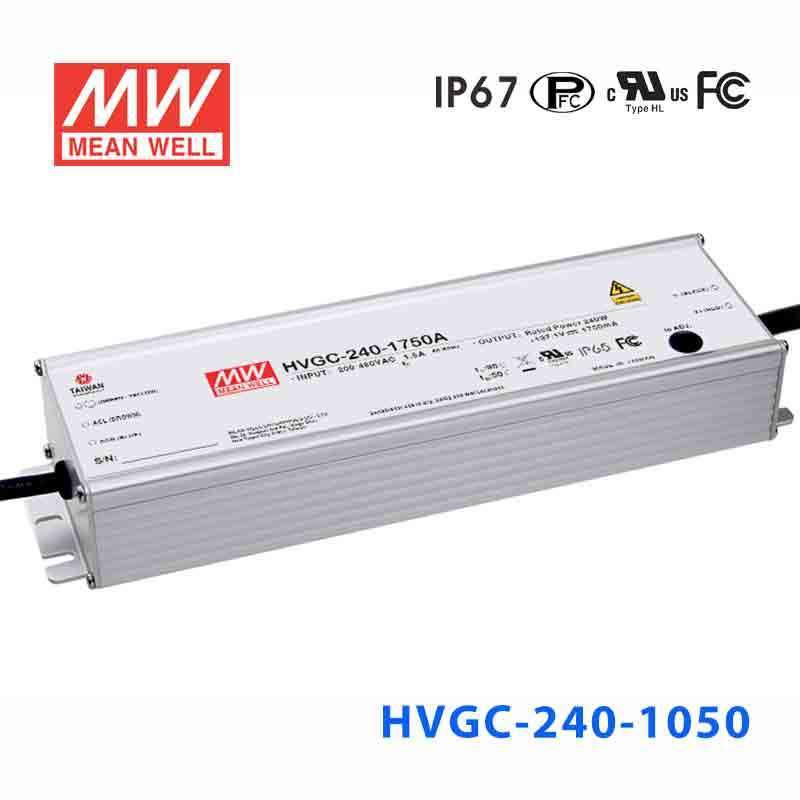

Mean Well HVGC-240-1050B Power Supply 240W 1050mA - Dimmable
The HVGC-240 is a 240W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/EN61347-1,IEC/EN61347-2-13, EN62384 independent, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating240 Watt
-
Output Voltage235 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.98 lb
::specification::
Frequently Asked Questions
Can the HVGC-240-1050B be used for outdoor LED downlights?
Yes, its IP67 waterproof rating makes it a better fit for wet or exposed locations than indoor-only drivers, as long as the LED downlight load is a 1050mA constant current load within the 114-228V CC range. It is still a constant current driver, so it should not be used where a fixed constant voltage output is required.
Is this a good driver for waterproof signage lighting modules?
It can be, provided the signage module string is designed for 1050mA constant current operation and the total forward voltage falls between 114V and 228V. For signage modules built around constant voltage input, this model is not the correct match.
Can I use the HVGC-240-1050B for a sealed small LED array enclosure?
Yes, the IP67 housing and -40°C to +90°C operating temperature range suit harsher environments than standard indoor drivers. The LED array still needs to be a constant current 1050mA load whose forward voltage stays within the 114-228V operating window.
How should I size an LED string for the HVGC-240-1050B?
Choose a constant current LED string that operates at 1050mA and has a combined forward voltage within the 114-228V CC range. The number of LEDs depends on the forward voltage of each LED, so there is no single LED count that applies to every design.
Is the HVGC-240-1050B better for wet environments than the HVGC-240-1050AB?
Yes, the key environmental difference is enclosure rating: the HVGC-240-1050B is IP67 waterproof, while the HVGC-240-1050AB is IP65 water-resistant. Both are 240W, 1050mA constant current drivers with the same 114-228V CC range and the same -40°C to +90°C operating temperature range.
