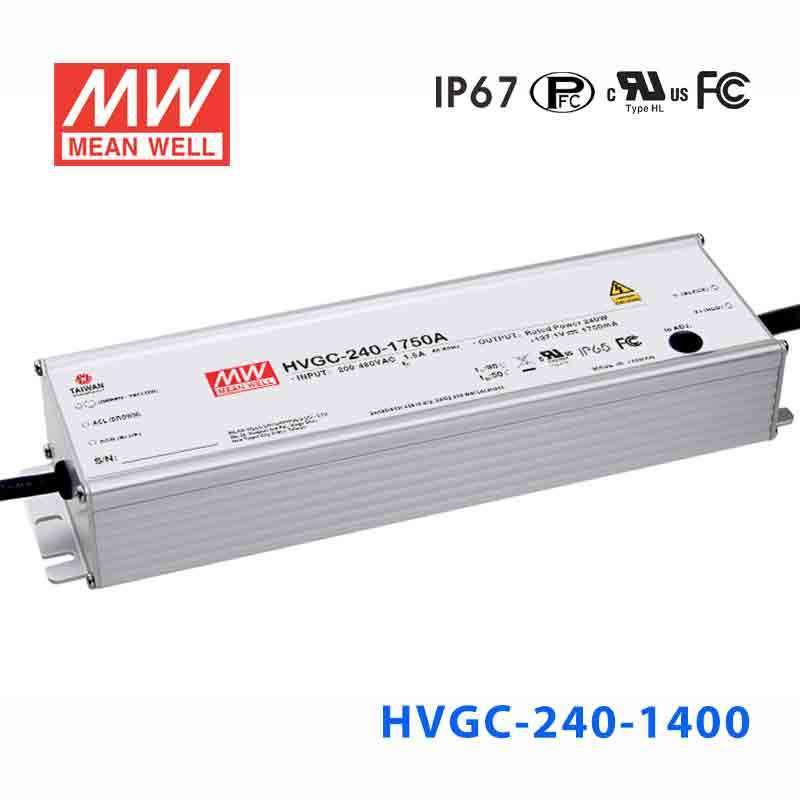

Mean Well HVGC-240-1400A Power Supply 240W 1400mA - Adjustable
The HVGC-240 is a 240W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/EN61347-1,IEC/EN61347-2-13, EN62384 independent, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating240 Watt
-
Output Voltage176 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.98 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-240-1400A for constant current LED downlights?
Yes, this model is intended for constant current LED loads at 1400mA, with an 85-171V constant current output range. It fits LED downlight assemblies whose total forward voltage is inside that range, rather than constant voltage fixtures that need a fixed output voltage.
Is the HVGC-240-1400A suitable for LED signage modules that need more current than 1050mA?
Yes, if the signage module string is designed for 1400mA constant current input and the full forward voltage stays between 85V and 171V. Compared with a 1050mA driver, this version is for loads that need higher current and a lower CC voltage range.
Can this model power a compact high-output LED array?
Yes, for constant current LED arrays rated at 1400mA and operating within the 85-171V CC range. With 240W output power, it is intended for substantially larger loads than low-power constant current drivers.
What should I check before pairing LEDs with the HVGC-240-1400A?
Confirm that the LED load is a constant current design requiring 1400mA, and that the combined LED forward voltage falls within 85-171V. The number of LEDs depends on each LED's forward voltage, so compatibility is based on total voltage, not a fixed LED quantity.
Can the HVGC-240-1400A be used in demanding temperature conditions?
Yes, its rated operating temperature is -40°C to +90°C, which supports use in very cold and very hot environments. Its enclosure is IP65 water-resistant, so it is better suited to dust and water exposure than open-frame indoor drivers, but it is not the IP67 version in this family.
