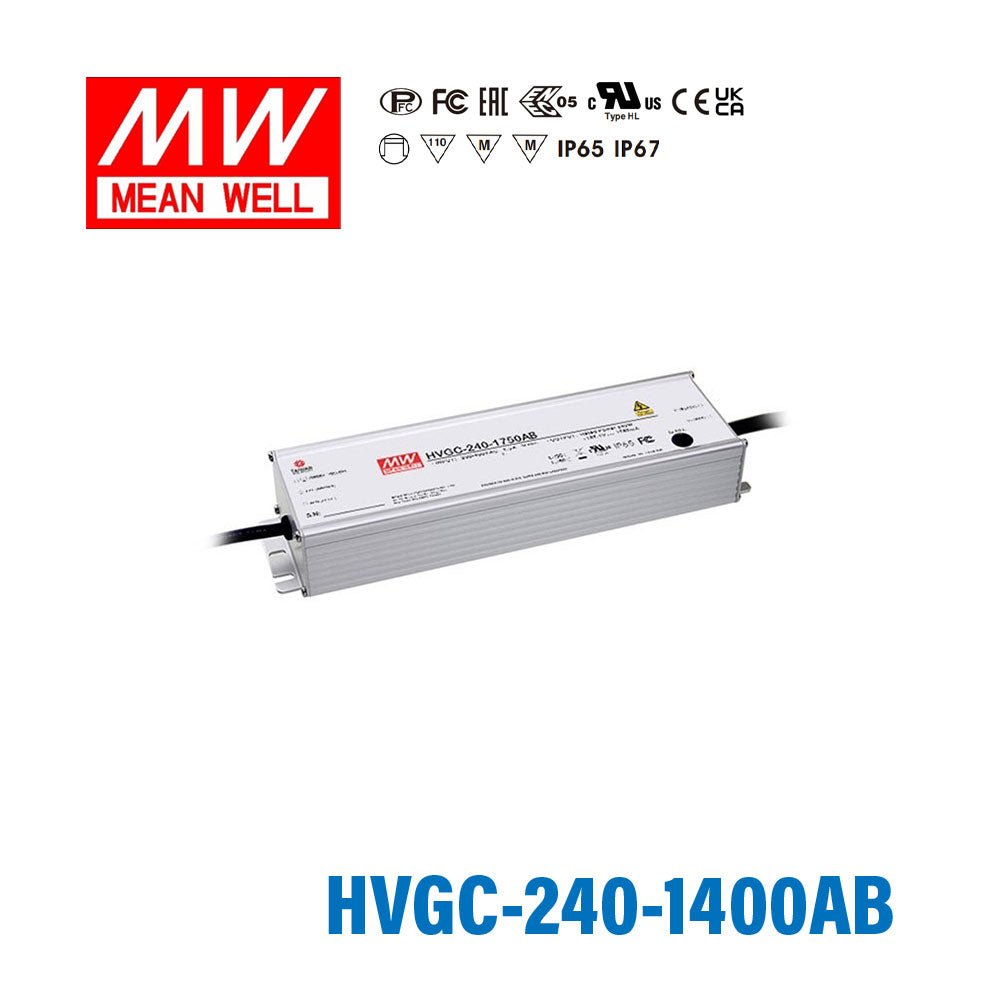

Mean Well HVGC-240-1400AB Power Supply 240W 1400mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-240-1400AB Power Supply 240W 1400mA - Adjustable and...
The HVGC-240 is a 240W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/EN61347-1,IEC/EN61347-2-13, EN62384 independent, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating240 Watt
-
Output Voltage176 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.98 lb
::specification::
Frequently Asked Questions
Is the HVGC-240-1400AB a fit for commercial LED downlight groups?
Yes, if the downlight group is a constant current load at 1400mA and its total forward voltage is within the 85-171V constant current range. This is not a constant voltage driver, so it is not meant for products that require a fixed-voltage output.
Can I use this driver for linear signage modules built as a constant current string?
Yes, as long as the signage string is specified for 1400mA constant current operation and the combined forward voltage stays between 85V and 171V. Its 240W rating makes it better suited to higher-power module strings than lower-wattage drivers in the same series.
Would the HVGC-240-1400AB work for a small LED array in a weather-exposed location?
It can, because the housing is IP65 water-resistant and the driver is rated for -40°C to +90°C operation. The LED array must still be a 1400mA constant current load within the 85-171V CC window.
How do I determine whether my LEDs are compatible with the HVGC-240-1400AB?
The LED load must be designed for 1400mA constant current, and the total forward voltage has to land within the driver's 85-171V constant current range. The number of LEDs depends on the forward voltage of each LED, so there is no universal LED count for this model.
How does the HVGC-240-1400AB compare with other 240W HVGC current options?
Within the 240W HVGC family, 700mA models use 171-342V, 1050mA models use 114-228V, 1400mA models use 85-171V, 1750mA models use 68-137V, 2100mA models use 57-114V, 2800mA models use 42-85V, and 3500mA models use 34-68V. The 1400AB sits in the middle of that range structure, with higher output current than the 1050mA version and lower CC voltage than the 700mA and 1050mA versions.
