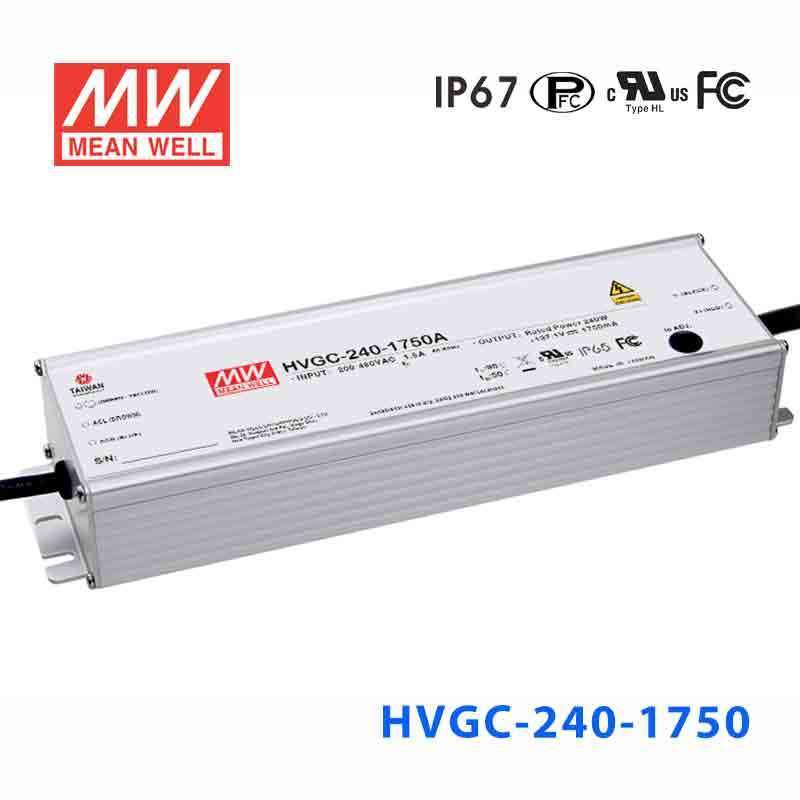

Mean Well HVGC-240-1750A Power Supply 240W 1750mA - Adjustable
The HVGC-240 is a 240W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/EN61347-1,IEC/EN61347-2-13, EN62384 independent, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating240 Watt
-
Output Voltage141 Volt
-
Rated Current1.75 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.98 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-240-1750A to run high-power LED downlights?
Yes, if the downlight array is designed for a constant current driver at 1750mA and the total forward voltage falls within the 68-137V constant current range. This is a 240W constant current LED driver, so it is intended for LED loads that need current regulation rather than constant voltage output.
Is this driver suitable for LED signage modules or channel letters?
It can be suitable for signage modules only when the modules are built for constant current operation at 1750mA and the full load stays within the 68-137V CC range. It is not the right choice for constant voltage signage products that expect a fixed voltage supply.
Can the HVGC-240-1750A power a small LED array for architectural or display lighting?
Yes, it can power a small LED array when the array is specified for 1750mA constant current and its forward voltage lands between 68V and 137V. With 240W output power, it is better suited to higher-power arrays than low-voltage constant voltage products.
Will this work with a COB LED module?
It will work with a COB module if the module requires 1750mA constant current and the operating forward voltage is within the 68-137V range. The exact number of LEDs depends on each LED forward voltage, so compatibility should be checked by total forward voltage rather than LED count.
Is the HVGC-240-1750A suitable for damp or dusty locations?
This model is rated IP65 water-resistant and uses an aluminium casing, so it is suited to applications where dust and water resistance are needed. It is also specified for an operating temperature range of -40°C to +90°C.
