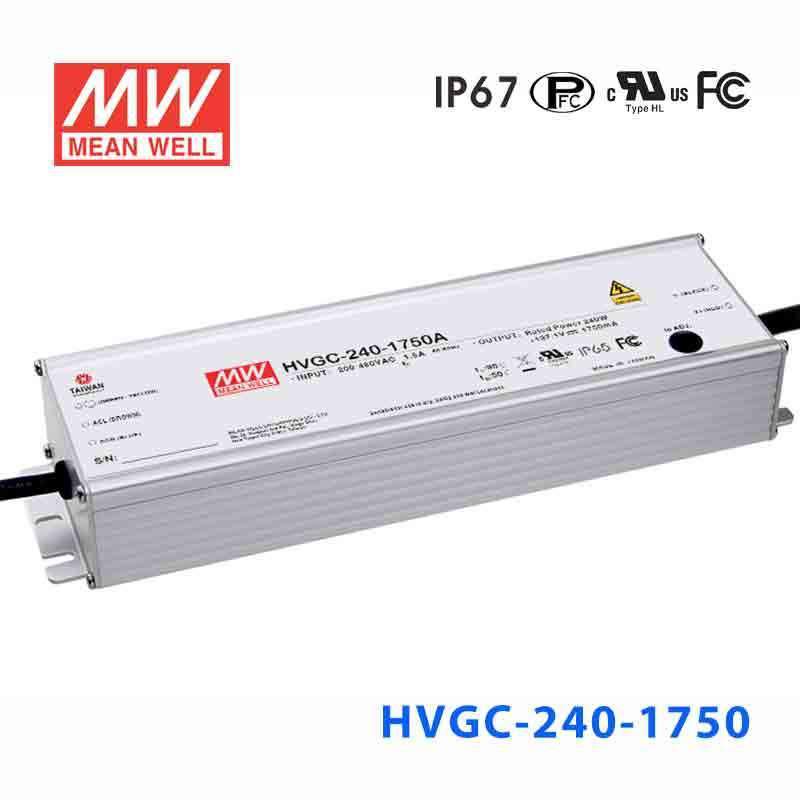

Mean Well HVGC-240-1750B Power Supply 240W 1750mA - Dimmable
The HVGC-240 is a 240W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/EN61347-1,IEC/EN61347-2-13, EN62384 independent, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating240 Watt
-
Output Voltage141 Volt
-
Rated Current1.75 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.98 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-240-1750B for outdoor LED downlights?
Yes, if the downlight requires 1750mA constant current and the LED load runs within the 68-137V constant current range. This is a 240W constant current driver, and its IP67 waterproof rating makes it a stronger choice for more exposed locations than lower-sealed versions.
Is this driver suitable for weather-exposed LED signage modules?
It can be suitable when the signage modules are designed for 1750mA constant current operation and the total LED forward voltage stays within 68V to 137V. Because it is a constant current driver, it is not intended for constant voltage signage systems.
Can the HVGC-240-1750B power a sealed LED array in harsh environments?
Yes, if the LED array is built for 1750mA constant current and falls within the 68-137V CC range. The IP67 waterproof rating and -40°C to +90°C operating range make it a better fit for harsher conditions than a basic indoor driver.
What should I check before pairing this driver with an LED module?
Check that the module requires 1750mA constant current and that its total forward voltage is within the 68-137V constant current window. The number of LEDs depends on each LED forward voltage, so there is no single fixed LED count for this driver.
Is the HVGC-240-1750B better for wet locations than the A or AB versions?
For environmental sealing, this version is rated IP67 waterproof, while the A and AB versions are rated IP65 water-resistant. All three have 240W output, 1750mA output current, and a 68-137V constant current range, but the B version has the higher ingress protection rating.
