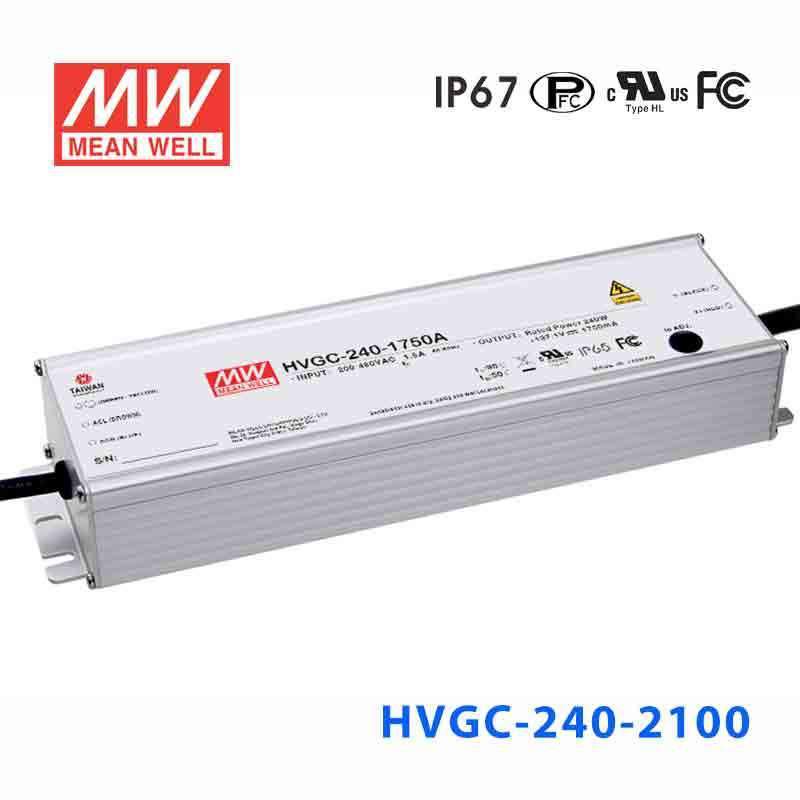

Mean Well HVGC-240-2100A Power Supply 240W 2100mA - Adjustable
The HVGC-240 is a 240W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/EN61347-1,IEC/EN61347-2-13, EN62384 independent, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating240 Watt
-
Output Voltage117 Volt
-
Rated Current2.1 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.98 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-240-2100A for high-output LED downlights?
Yes, if the downlight is designed for 2100mA constant current and the LED load operates within the 57-114V constant current range. This is a 240W constant current driver, so it is meant for current-driven LED loads rather than constant voltage fixtures.
Is the HVGC-240-2100A suitable for LED signage modules with higher drive current?
It can be suitable if the signage modules are built for 2100mA constant current operation and the total forward voltage stays between 57V and 114V. It should not be used where the signage product expects constant voltage input.
Can this model power a compact LED array with fewer higher-current emitters?
Yes, that is a typical fit when the array is specified for 2100mA constant current and the full forward voltage is within the 57-114V CC range. Because the current is higher than the 1750mA versions, it suits LED loads designed around that 2100mA drive level.
How do I size an LED load for the HVGC-240-2100A?
Match it to LED loads that require 2100mA constant current and whose total forward voltage falls within 57V to 114V. The number of LEDs depends on each LED forward voltage, so compatibility is based on the complete forward-voltage sum rather than a preset LED count.
Can this driver handle wide temperature swings or outdoor enclosures?
This model is rated IP65 water-resistant and has an operating temperature range of -40°C to +90°C. That makes it suitable for demanding environments where both weather resistance and broad temperature tolerance are required.
