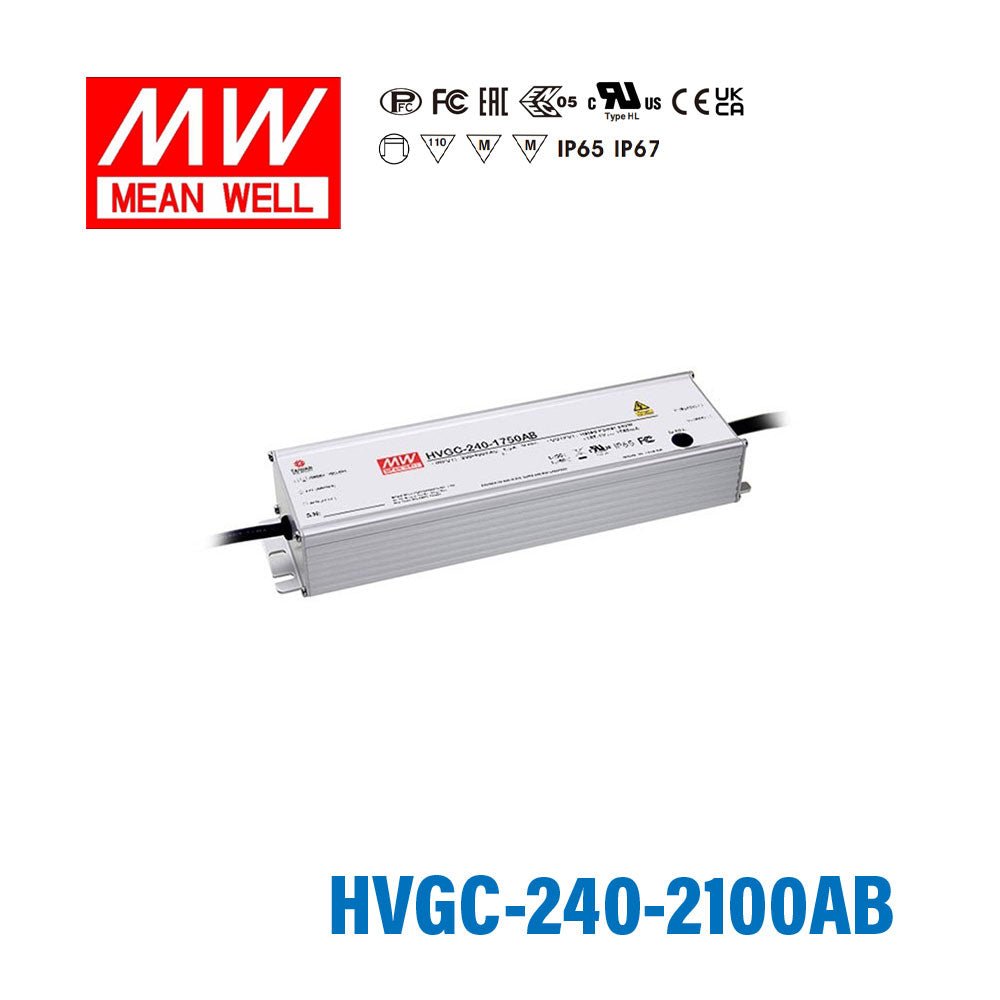

Mean Well HVGC-240-2100AB Power Supply 240W 2100mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-240-2100AB Power Supply 240W 2100mA - Adjustable and...
The HVGC-240 is a 240W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/EN61347-1,IEC/EN61347-2-13, EN62384 independent, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating240 Watt
-
Output Voltage117 Volt
-
Rated Current2.1 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.01 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.98 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-240-2100AB for dimmable LED downlights that run at 2100mA?
Yes, if the downlight is designed for 2100mA constant current and the LED load stays within the 57-114V constant current range. Since this is a 240W constant current driver, it should be matched to current-driven LED systems, not constant voltage products.
Is this a good driver for dimmable LED signage modules with a lower voltage range?
It can be, provided the signage modules require 2100mA constant current and the full LED load operates between 57V and 114V. That lower voltage range distinguishes it from higher-voltage constant current models in the same series.
Can the HVGC-240-2100AB run a small dimmable LED array or light engine?
Yes, if the array or light engine is specified for 2100mA constant current and the combined forward voltage fits within the 57-114V CC window. Its 240W rating makes it suitable for higher-power arrays that need regulated current output.
What makes an LED module compatible with the HVGC-240-2100AB?
The module must require 2100mA constant current, and its total forward voltage must fall within the 57-114V constant current range. The exact number of LEDs depends on each LED forward voltage, so compatibility should be verified by voltage range rather than LED quantity.
How does the HVGC-240-2100AB compare with other 240W HVGC current options?
Within the 240W family, HVGC-240-1050 models are 1050mA with a 114-228V CC range, HVGC-240-1400 models are 1400mA with an 85-171V range, HVGC-240-1750 models are 1750mA with a 68-137V range, HVGC-240-2100 models are 2100mA with a 57-114V range, HVGC-240-2800 models are 2800mA with a 42-85V range, HVGC-240-3500 models are 3500mA with a 34-68V range, and HVGC-240-700 models are 700mA with a 171-342V range. This model sits in the 2100mA, 57-114V section of that 240W lineup.
