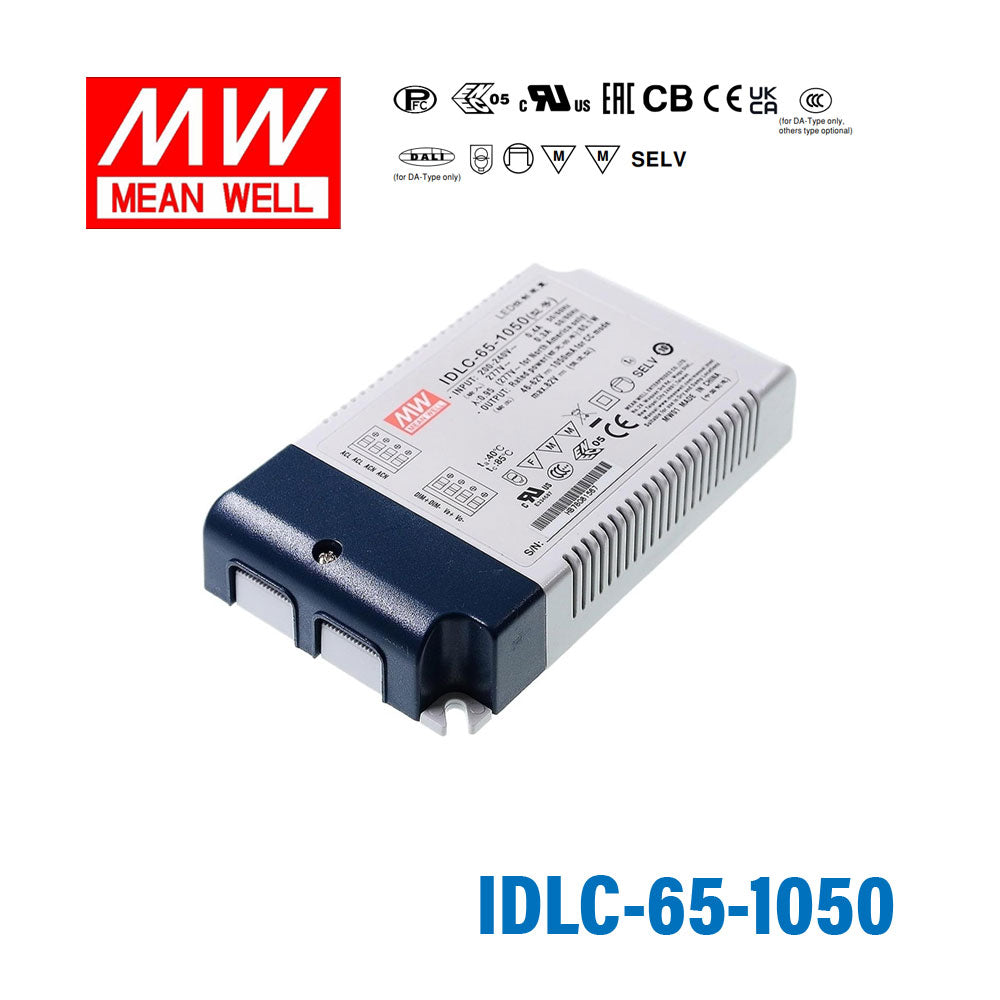

Mean Well IDLC-65-1050 Power Supply 65W 1050mA, Dimmable
T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Key Features
- ✓Constant Current mode output
- ✓Flicker-free design
- ✓Plastic housing with class II design
- ✓Built-in active PFC function
- ✓No load power consumption<0.5W(Blank-Type)
- ✓Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output
- ✓3 years warranty
-
BrandMean Well
-
SeriesIDLC Series
-
Power Rating65.1 Watt
-
Output Voltage62 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length5.12 in
-
Width2.95 in
-
Height0.98 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the IDLC-65-1050 for a higher-power LED downlight?
Yes, if the downlight uses a constant current LED engine rated for 1050mA and its operating voltage is within 46-62V. With a 65.1W output rating, this model fits higher-power downlight assemblies that stay inside those limits.
Is this driver suitable for a longer small LED array with more series voltage?
It is suitable when the LED array is designed for 1050mA constant current and needs a total forward voltage between 46V and 62V. The number of LEDs depends on the forward voltage of each LED, so compatibility should be checked by total load voltage rather than by LED count.
Can the IDLC-65-1050 be used in signage lighting?
Yes, but only for signage modules or light engines that are constant current at 1050mA and operate within 46-62V. It is not a constant voltage driver, so it is not the correct choice for signage products built for fixed-voltage DC input.
Would this work for a compact commercial fixture with a 1050mA LED board?
It can, as long as the LED board is specified for 1050mA constant current and its forward voltage falls in the 46-62V range. The 65.1W power rating gives more headroom than the 45W class for compatible constant current loads.
How do I verify LED load compatibility with this 1050mA driver?
Match the driver to an LED load that requires 1050mA constant current and runs between 46V and 62V under normal operation. The actual LED quantity depends on each LED's forward voltage, so a specific LED count should not be assumed.
How does the IDLC-65-1050 compare with the other 65W models in the same series?
The IDLC-65-1050 is a 1050mA model with a 46-62V CC range and 65.1W output. Other 65W versions include 1400mA at 34-46V and 64.4W, 1750mA at 27-36V and 63W, and 700mA at 69-93V and 65.1W.
