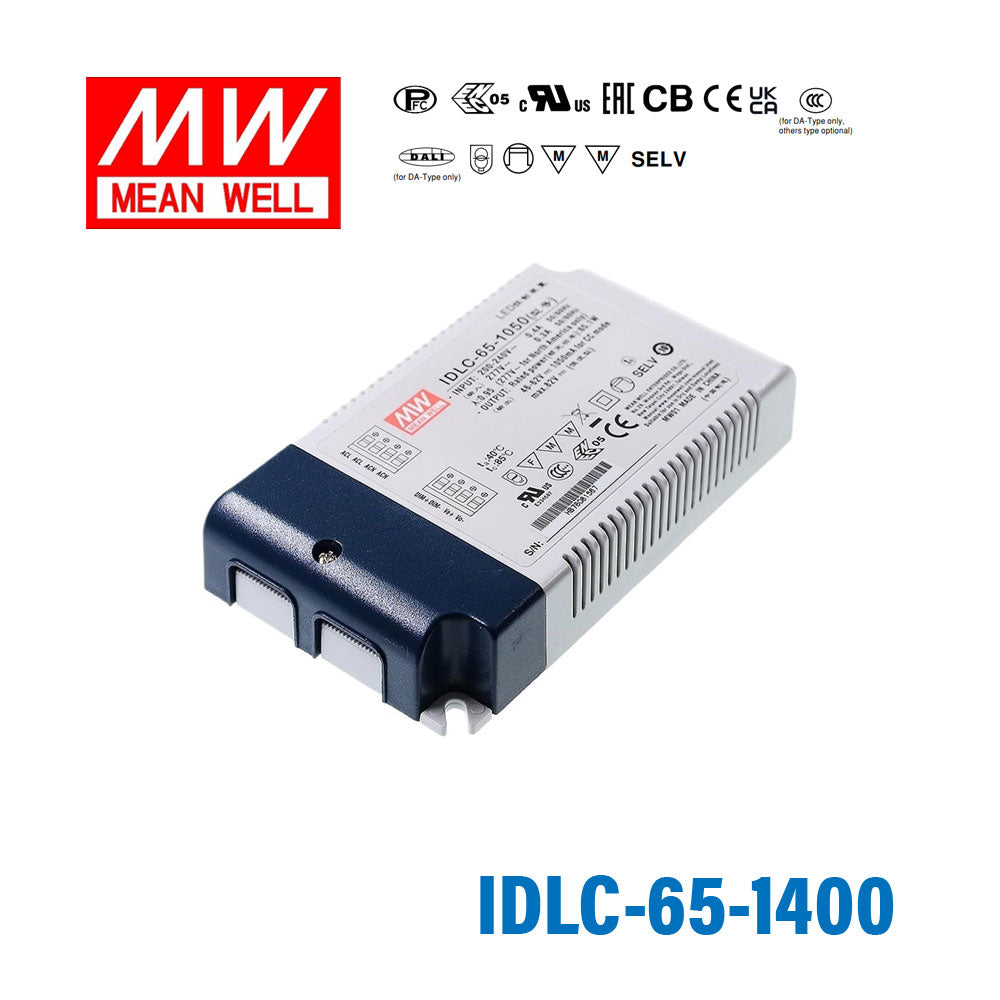

Mean Well IDLC-65-1400 Power Supply 65W 1400mA, Dimmable

Q: Can the IDLC-65-1400 be used for a high-output COB LED downlight?

Yes, if the downlight is designed for 1400mA constant current and its LED load operates within 34-46V. This driver provides up to 64.4W, which suits higher-output constant current downlight engines in that voltage range.

Q: Is this driver a match for a compact LED array that needs 1400mA?

It is a match when the array is specified for 1400mA constant current and the total forward voltage falls between 34V and 46V. The LED count depends on each LED's forward voltage, so the electrical check should be based on total load voltage instead of a fixed number of LEDs.

Q: Can I use the IDLC-65-1400 with signage light engines?

Yes, but only if the signage light engine is a constant current design rated for 1400mA and it runs within the 34-46V CC range. It is not a constant voltage supply, so it should not be chosen for fixed-voltage signage modules.

Q: Would this work for a commercial fixture that needs more power than a 45W driver?

Yes, if the fixture's LED load requires 1400mA constant current and operates from 34V to 46V. Its 64.4W output rating gives more available power than the 44.8W 45W-class 1400mA models.

Q: How do I confirm LED compatibility with this 1400mA driver?

Your LED module should call for 1400mA constant current and have a total forward voltage within 34-46V. The number of LEDs depends on the forward voltage of each LED, so a specific LED quantity should not be assumed from the driver rating alone.

Q: How does the IDLC-65-1400 compare with the other 65W versions in this family?

The IDLC-65-1400 is the 1400mA version with a 34-46V CC range and 64.4W output. Other 65W family options include 1050mA at 46-62V and 65.1W, 1750mA at 27-36V and 63W, and 700mA at 69-93V and 65.1W.

SKU:

IDLC-65-1400

$23.66 USD ~~$80.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant Current mode output

Flicker-free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output

3 years warranty

General Specification

Short circuit	Hiccup mode recovers automatically after the fault condition is removed
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Safety standards	UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1
Dimension (LxWxH)(mm)	130 x 75 x 25 mm

Specifications

Brand

Mean Well
Series

IDLC Series
Power Rating

64.4 Watt
Output Voltage

46 Volt
Rated Current

1.4 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

0-10V,10V PWM
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

5.12 in
Width

2.95 in
Height

0.98 in
Weight

0.51 lb

File Downloads

::specification::
