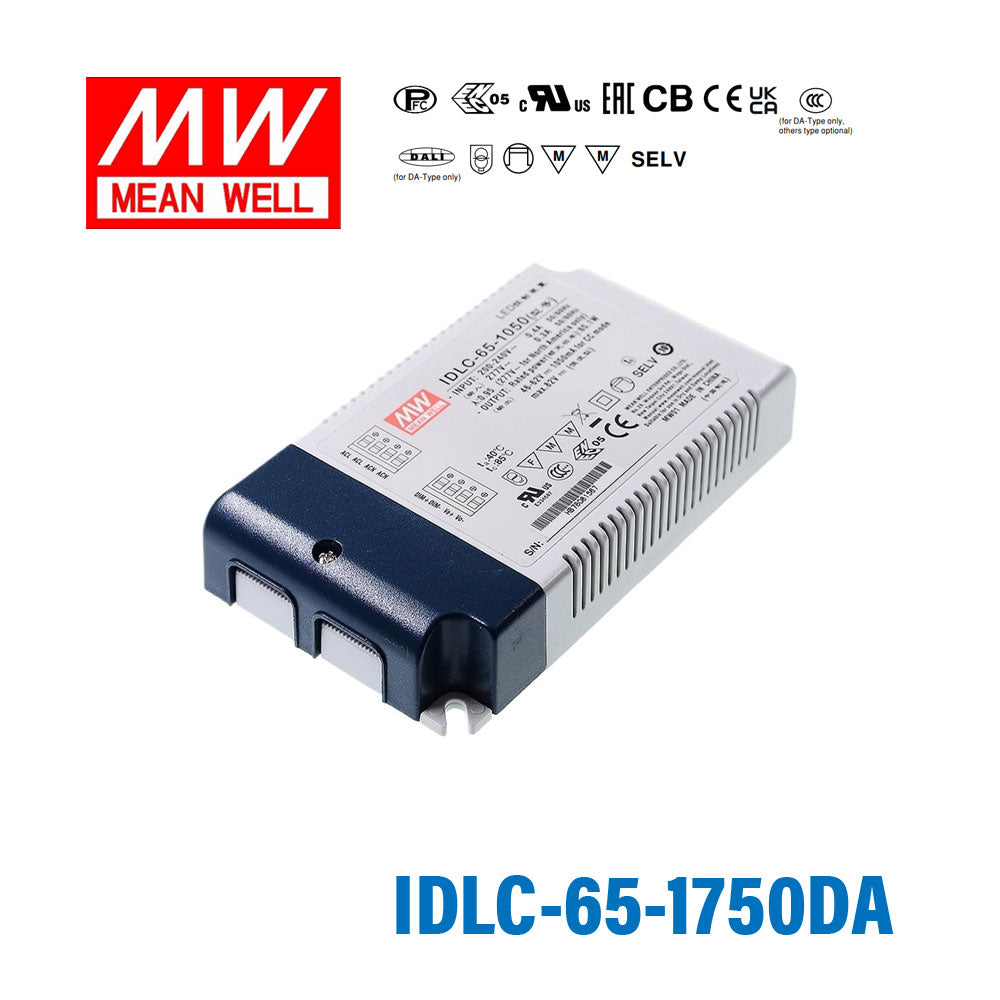

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well IDLC-65-1750DA Power Supply 65W 1750mA, DALI

Q: Can I use the IDLC-65-1750DA for a DALI-controlled LED downlight?

Yes, if the fixture uses DALI control and the LED engine needs a constant current 1750mA driver with a 27-36V load range. This is a constant current driver, so it should be matched to a 1750mA LED load rather than a constant voltage fixture.

Q: Will this work with a DALI signage module setup?

It can, when the signage module assembly is a constant current 1750mA load and the total forward voltage stays within 27-36V. For signage systems built around constant voltage modules, this would not be the correct driver type.

Q: Is this suitable for a small dimmable LED array?

Yes, if the array is designed for 1750mA constant current operation, falls within the 27-36V constant current range, and needs up to 63W. The DALI feature makes it relevant where central lighting control is part of the fixture design.

Q: How do I size the LED load for the IDLC-65-1750DA?

The LED load must be a 1750mA constant current load with total forward voltage between 27V and 36V. The number of LEDs depends on the forward voltage of each LED, so this driver should be selected by current and summed LED voltage rather than by a fixed LED count.

Q: Can this driver handle demanding temperature conditions?

Its operating temperature range is -20°C to +85°C, so the specified thermal window is broad for enclosed lighting equipment. No IP rating is stated in the provided specs, so moisture or dust exposure should be managed at the fixture or enclosure level.

SKU:

IDLC-65-1750DA

$24.64 USD ~~$102.75~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant Current mode output

Flicker-free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output

3 years warranty

General Specification

Short circuit	Hiccup mode recovers automatically after the fault condition is removed
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Safety standards	UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1
Dimension (LxWxH)(mm)	130 x 75 x 25 mm

Specifications

Brand

Mean Well
Series

IDLC Series
Power Rating

63 Watt
Output Voltage

36 Volt
Rated Current

1.75 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

DALI
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

5.12 in
Width

2.95 in
Height

0.98 in
Weight

0.51 lb

File Downloads

::specification::
