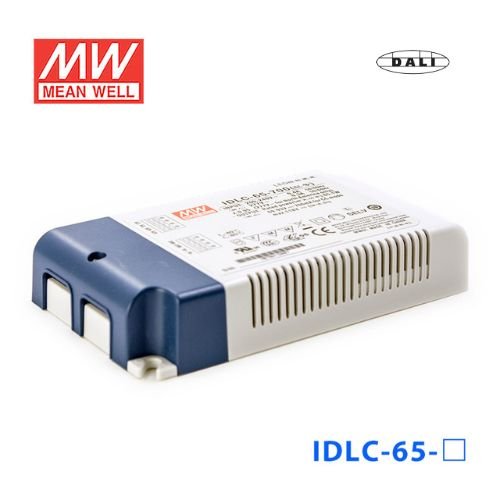

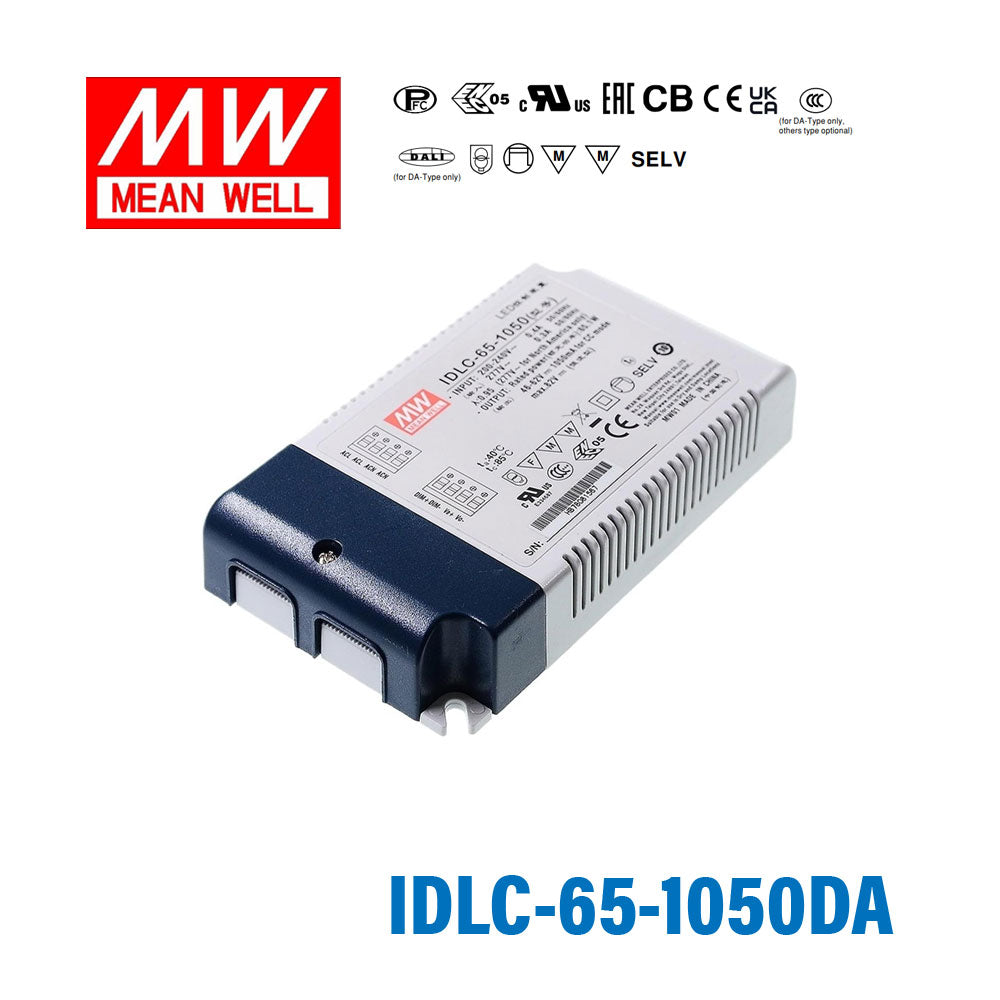

Mean Well IDLC-65-1050DA Power Supply 65W 1050mA, DALI

Q: Can I use the IDLC-65-1050DA for a DALI-controlled LED downlight?

Yes, if the downlight's LED engine needs 1050mA constant current and operates within the 46-62V CC range. This model is the DALI version in the 65W 1050mA range, with up to 65.1W output.

Q: Is this driver suitable for a small LED array in a DALI-based lighting system?

It can be, provided the LED array is a constant current load at 1050mA and its total forward voltage is between 46V and 62V. The actual number of LEDs depends on the forward voltage of each LED, not on a fixed count from the driver.

Q: Can the IDLC-65-1050DA power signage modules that need dimming control?

Yes, if the signage module is designed for constant current operation at 1050mA and its electrical load fits within 46-62V. It is not a constant voltage model, so it should only be paired with constant current LED modules.

Q: Would this fit a higher-output fixture that uses a 1050mA light engine?

Yes, when the fixture's LED load is rated for 1050mA constant current and stays within the 46-62V operating range. Its 65.1W rating places it above the 45W class for compatible constant current assemblies.

Q: How can I tell if my LED module is compatible with the IDLC-65-1050DA?

The LED module should require 1050mA constant current and have a total forward voltage inside the 46-62V CC window. The number of LEDs that can be used depends on the forward voltage of each LED, so compatibility should be checked from the module's electrical data.

Q: How does the IDLC-65-1050DA compare with other 65W current ratings in the IDLC line?

The IDLC-65-1050DA provides 1050mA over 46-62V with 65.1W output. Other 65W options in the family are 1400mA at 34-46V and 64.4W, 1750mA at 27-36V and 63W, and 700mA at 69-93V and 65.1W.

SKU:

IDLC-65-1050DA

$24.88 USD ~~$102.75~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant Current mode output

Flicker-free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output

3 years warranty

General Specification

Short circuit	Hiccup mode recovers automatically after the fault condition is removed
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Safety standards	UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1
Dimension (LxWxH)(mm)	130 x 75 x 25 mm

Specifications

Brand

Mean Well
Series

IDLC Series
Power Rating

65.1 Watt
Output Voltage

62 Volt
Rated Current

1.05 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

DALI
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

5.12 in
Width

2.95 in
Height

0.98 in
Weight

0.51 lb
