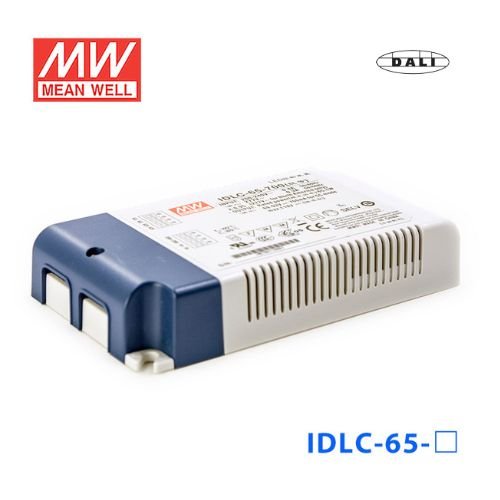

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

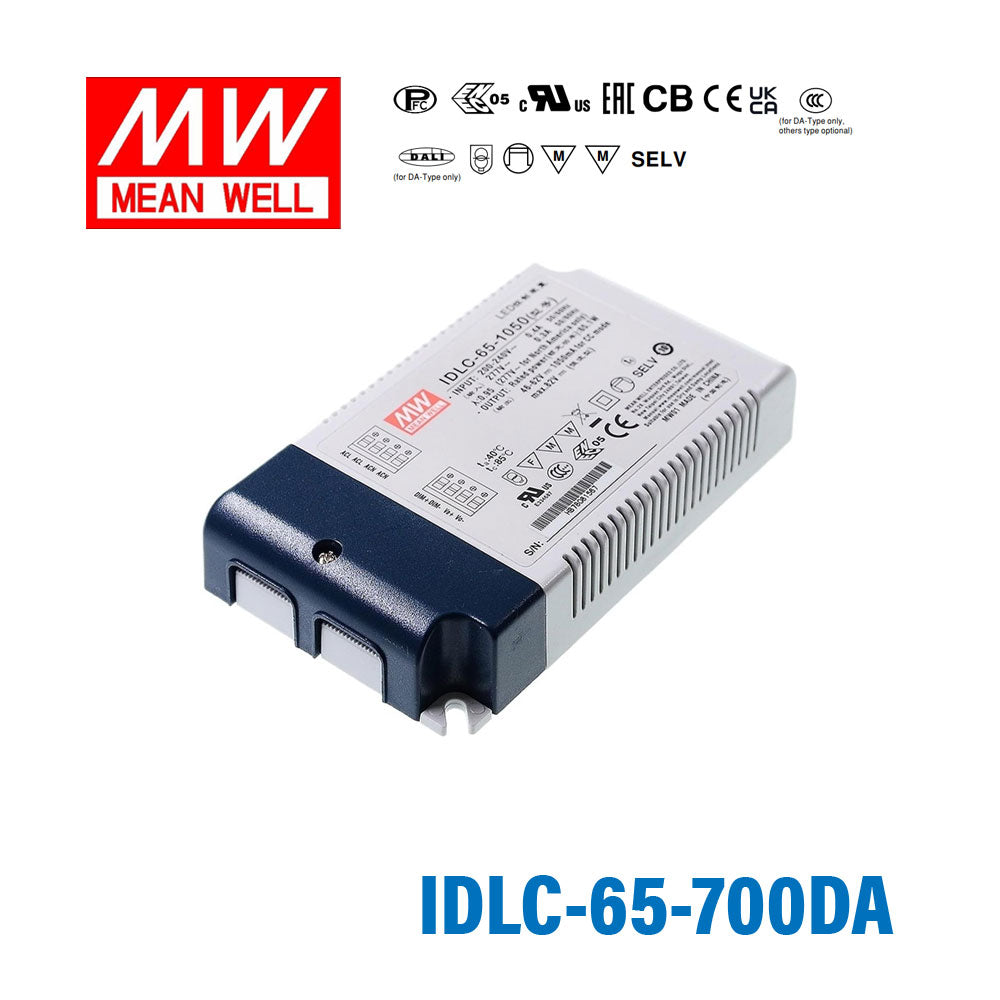

Mean Well IDLC-65-700DA Power Supply 65W 700mA, DALI

Q: Can I use the IDLC-65-700DA for a DALI dimmable 700mA downlight?

Yes, if the downlight uses DALI control and its LED engine is a constant current 700mA load operating within 69-93V. This is a constant current driver, not a constant voltage power supply, so it must be paired with a matching 700mA LED load.

Q: Will this work for a DALI-controlled signage light engine?

It can work when the signage light engine is designed for 700mA constant current and the total LED forward voltage falls within 69-93V. It is not intended for constant voltage signage modules or low-voltage fixed-output systems.

Q: Is this driver a good match for a small LED array with a long series string?

Yes, it suits small LED arrays that need 700mA constant current and have a total forward voltage in the 69-93V range, with output power up to 65.1W. The DALI capability also makes it relevant where dimming control is required at the fixture level.

Q: How should I size the LED load for the IDLC-65-700DA?

Choose an LED load rated for 700mA constant current with a total forward voltage between 69V and 93V. The number of LEDs depends on the forward voltage of each LED, so compatibility should be checked by summed LED voltage rather than by a stated LED quantity.

Q: Can the IDLC-65-700DA be used where temperatures vary widely?

The listed operating temperature range is -20°C to +85°C, so the temperature specification is broad. The provided specs do not include an IP rating, so outdoor or washdown suitability should not be assumed from the driver alone.

SKU:

IDLC-65-700DA

$24.64 USD ~~$102.75~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant Current mode output

Flicker-free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output

3 years warranty

General Specification

Short circuit	Hiccup mode recovers automatically after the fault condition is removed
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Safety standards	UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1
Dimension (LxWxH)(mm)	130 x 75 x 25 mm

Specifications

Brand

Mean Well
Series

IDLC Series
Power Rating

65.1 Watt
Output Voltage

93 Volt
Rated Current

0.7 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

DALI
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

5.12 in
Width

2.95 in
Height

0.98 in
Weight

0.51 lb

File Downloads

::specification::
