Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

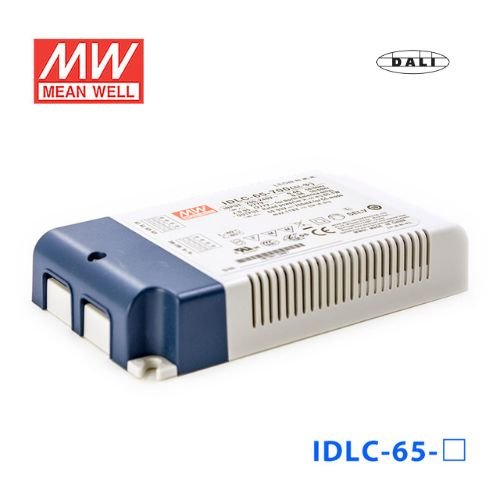

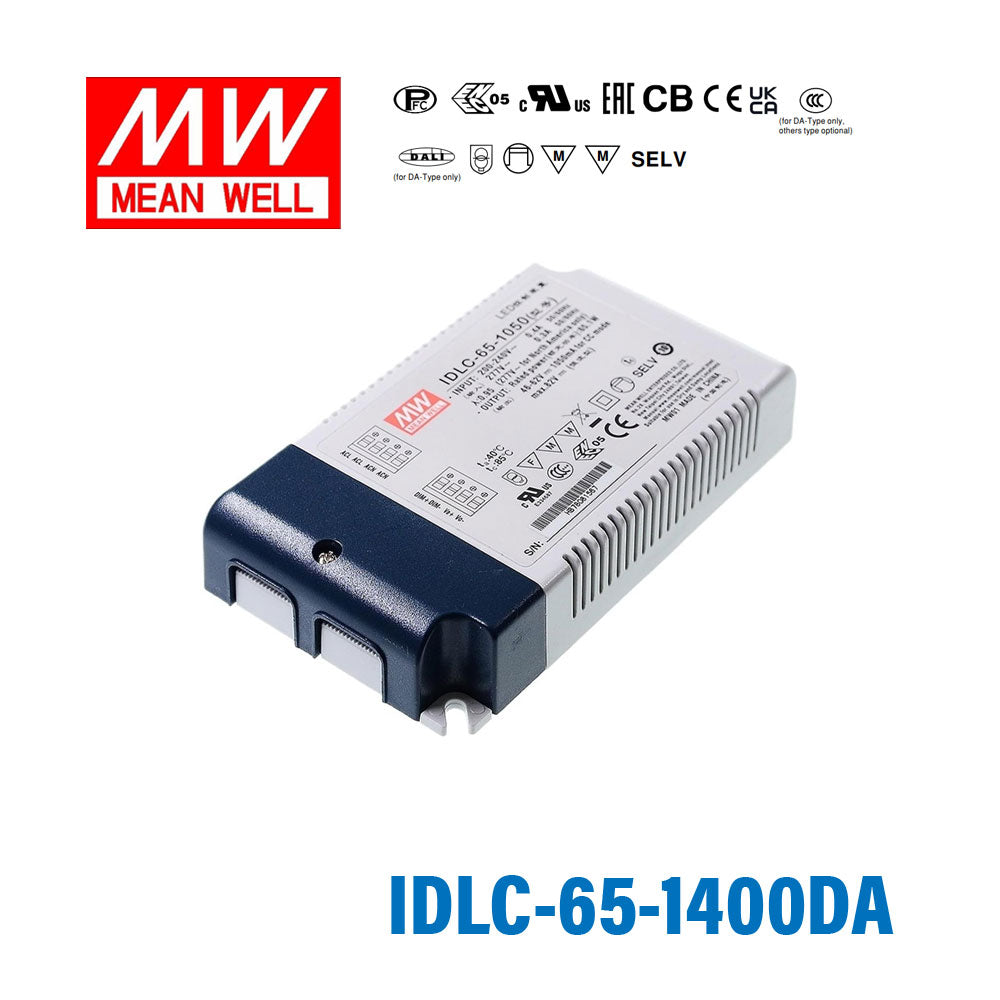

Mean Well IDLC-65-1400DA Power Supply 65W 1400mA, DALI

Q: Can I use the IDLC-65-1400DA for a 1400mA LED downlight?

Yes, if the downlight is designed for a constant current 1400mA driver and its LED load operates within the 34-46V constant current range. This is a constant current driver, not a constant voltage power supply, so it should be matched to a 1400mA LED engine rather than a fixed-voltage load.

Q: Is this driver suitable for signage LED modules?

It can be suitable for signage modules only when the module assembly is a constant current 1400mA load that falls within the 34-46V range. It is not intended for constant voltage signage systems that expect a fixed output voltage supply.

Q: Can this power a small LED array for architectural lighting?

Yes, for a small LED array built as a constant current 1400mA load within the 34-46V operating window and up to 64.4W. That makes it a fit for higher-current LED arrays where the array voltage stays inside the driver's constant current range.

Q: How do I know if my LED load is compatible with this constant current driver?

The LED load needs to be rated for 1400mA constant current, and the total forward voltage of the LEDs must fall within 34-46V. The exact number of LEDs depends on the forward voltage of each LED, so compatibility is determined by current and total LED voltage, not by a fixed LED count.

Q: Can the IDLC-65-1400DA be used in hot or cold operating conditions?

Its specified operating temperature range is -20°C to +85°C, which gives it a wide working window for demanding indoor equipment environments. No IP rating is listed in the provided specs, so environmental protection should be judged by the enclosure and fixture design, not by the driver alone.

SKU:

IDLC-65-1400DA

$24.88 USD ~~$102.75~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant Current mode output

Flicker-free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output

3 years warranty

General Specification

Short circuit	Hiccup mode recovers automatically after the fault condition is removed
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Safety standards	UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1
Dimension (LxWxH)(mm)	130 x 75 x 25 mm

Specifications

Brand

Mean Well
Series

IDLC Series
Power Rating

64.4 Watt
Output Voltage

46 Volt
Rated Current

1.4 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

DALI
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

5.12 in
Width

2.95 in
Height

0.98 in
Weight

0.51 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the IDLC-65-1400DA for a 1400mA LED downlight?

Yes, if the downlight is designed for a constant current 1400mA driver and its LED load operates within the 34-46V constant current range. This is a constant current driver, not a constant voltage power supply, so it should be matched to a 1400mA LED engine rather than a fixed-voltage load.

Is this driver suitable for signage LED modules?
