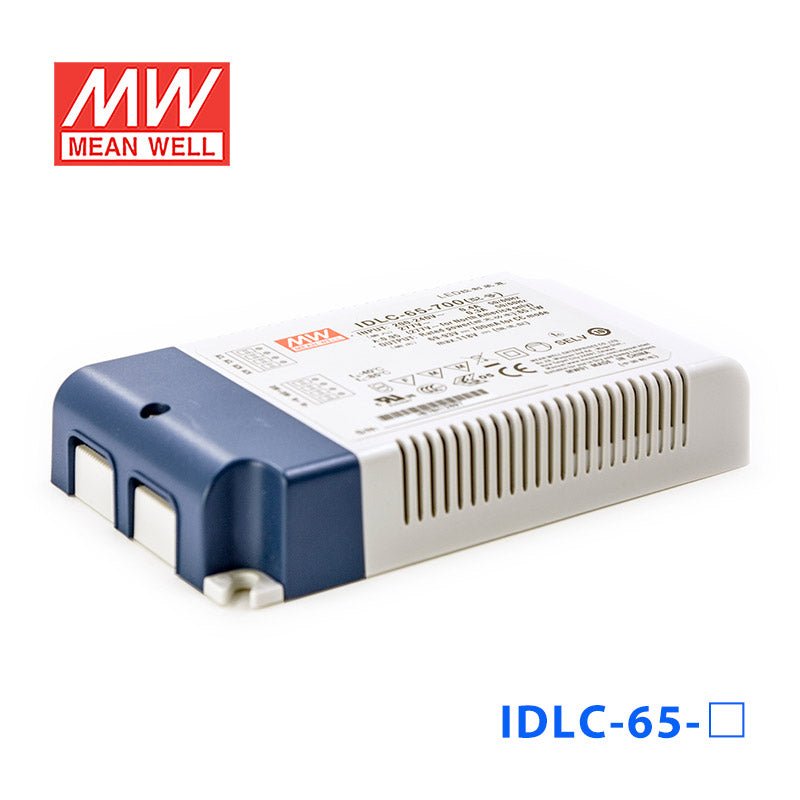

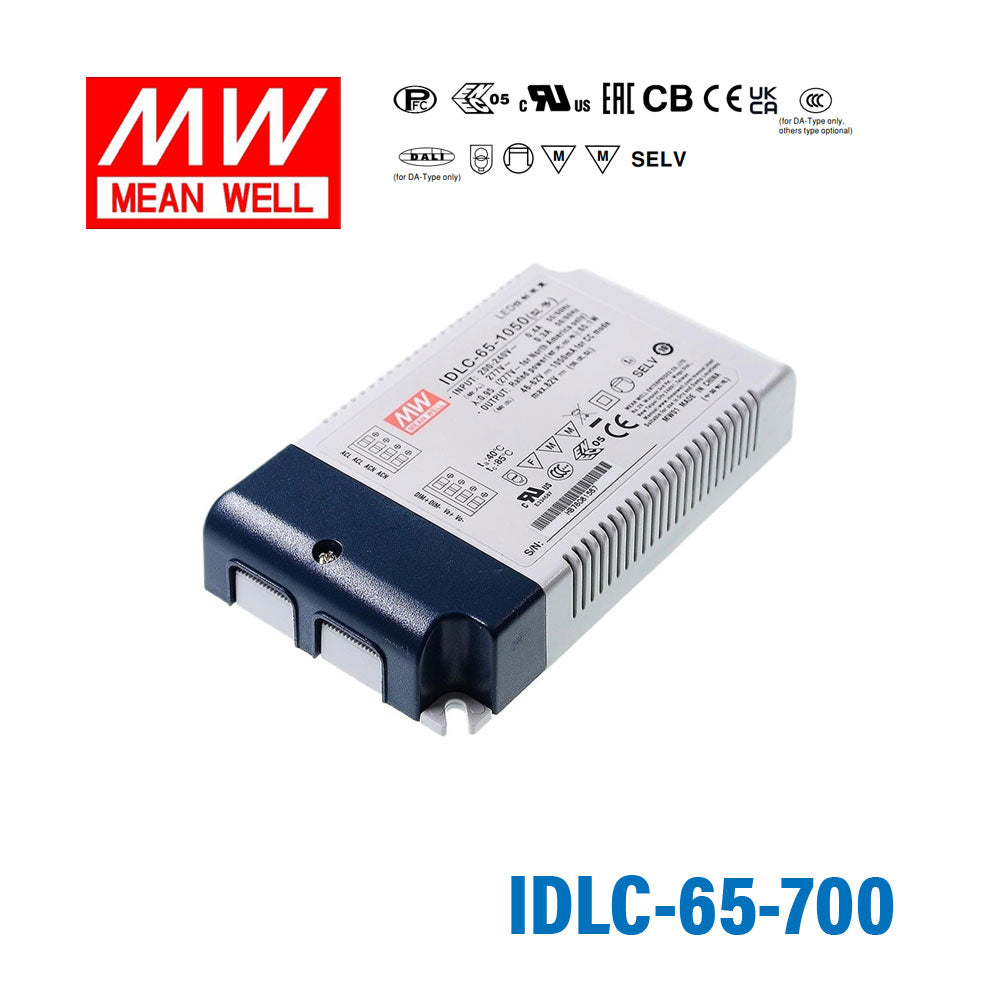

Mean Well IDLC-65-700 Power Supply 65W 700mA, Dimmable

Q: Can I use the IDLC-65-700 for a 700mA LED downlight with a long LED string?

Yes, if the downlight is built for a constant current 700mA driver and the LED load operates within the 69-93V constant current range. This model is better suited to higher-voltage 700mA LED strings than lower-voltage high-current LED engines.

Q: Is the IDLC-65-700 suitable for signage modules?

It may be suitable for signage modules only when the module assembly is a constant current 700mA load with total forward voltage in the 69-93V range. It is not a constant voltage supply, so it should not be used for signage products that require fixed-voltage output.

Q: Can this run a small LED array with a higher series voltage?

Yes, it is a fit for small LED arrays that require 700mA constant current and have a total forward voltage between 69V and 93V, up to 65.1W. That makes it more appropriate for longer series LED arrangements than for low-voltage arrays.

Q: How do I check LED compatibility with the IDLC-65-700?

The LED load must be rated for 700mA constant current, and the combined forward voltage of the LEDs must stay within 69-93V. The exact number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count for this driver.

Q: What environmental limits are specified for this driver?

The specified operating temperature range is -20°C to +85°C. No IP rating is provided in the listed specs, so environmental sealing should be determined by the final enclosure or luminaire design.

SKU:

IDLC-65-700

$20.87 USD ~~$80.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant Current mode output

Flicker-free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output

3 years warranty

General Specification

Short circuit	Hiccup mode recovers automatically after the fault condition is removed
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Safety standards	UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1
Dimension (LxWxH)(mm)	130 x 75 x 25 mm

Specifications

Brand

Mean Well
Series

IDLC Series
Power Rating

65.1 Watt
Output Voltage

93 Volt
Rated Current

0.7 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

0-10V,10V PWM
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

5.12 in
Width

2.95 in
Height

0.98 in
Weight

0.51 lb
