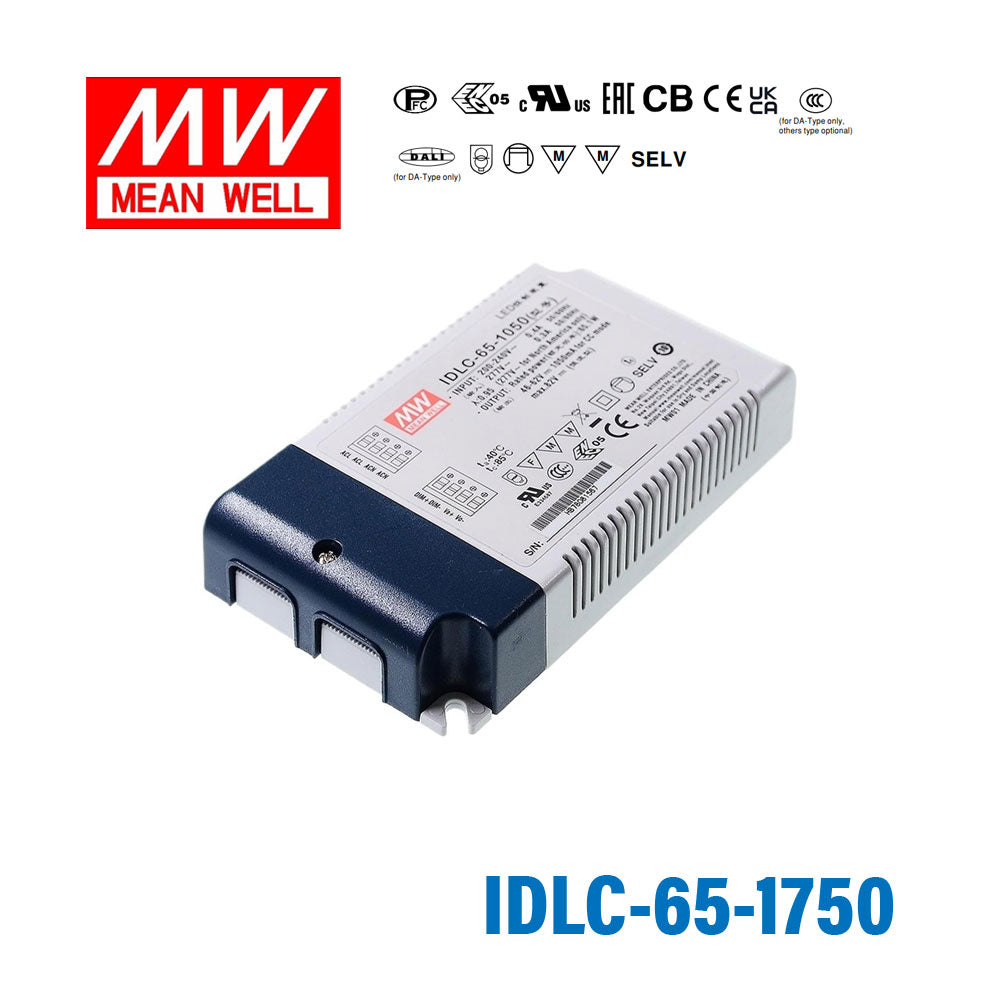

Mean Well IDLC-65-1750 Power Supply 65W 1750mA, Dimmable

Q: Can I use the IDLC-65-1750 with a high-current LED downlight?

Yes, if the downlight requires a constant current 1750mA driver and the LED load stays within the 27-36V constant current range. This is a constant current model, so it is meant for matched LED engines rather than constant voltage lighting products.

Q: Is this a good fit for compact signage light engines?

It can work for signage light engines when the module is designed for 1750mA constant current and the total LED forward voltage is within 27-36V. It is not the right choice for signage products that expect a constant voltage supply.

Q: Can this driver run a small COB LED array?

Yes, it is suited to small COB-style or similar LED arrays that need 1750mA constant current and operate in the 27-36V range, up to 63W. The lower voltage and higher current profile makes it better aligned with compact high-current LED loads than long high-voltage LED strings.

Q: What should I check before pairing this with an LED array?

Check that the array is rated for 1750mA constant current and that its total forward voltage falls between 27V and 36V. The number of LEDs depends on the forward voltage of each LED, so the correct match is based on total LED voltage, not a fixed quantity of LEDs.

Q: Is the IDLC-65-1750 intended for outdoor or exposed environments?

The provided specs list an operating temperature range of -20°C to +85°C, but they do not list an IP rating. That means temperature capability is specified, while resistance to water or dust exposure should not be assumed from the driver specs alone.

SKU:

IDLC-65-1750

$23.66 USD ~~$80.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant Current mode output

Flicker-free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output

3 years warranty

General Specification

Short circuit	Hiccup mode recovers automatically after the fault condition is removed
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Safety standards	UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1
Dimension (LxWxH)(mm)	130 x 75 x 25 mm

Specifications

Brand

Mean Well
Series

IDLC Series
Power Rating

63 Watt
Output Voltage

36 Volt
Rated Current

1.75 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

0-10V,10V PWM
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

5.12 in
Width

2.95 in
Height

0.98 in
Weight

0.51 lb
