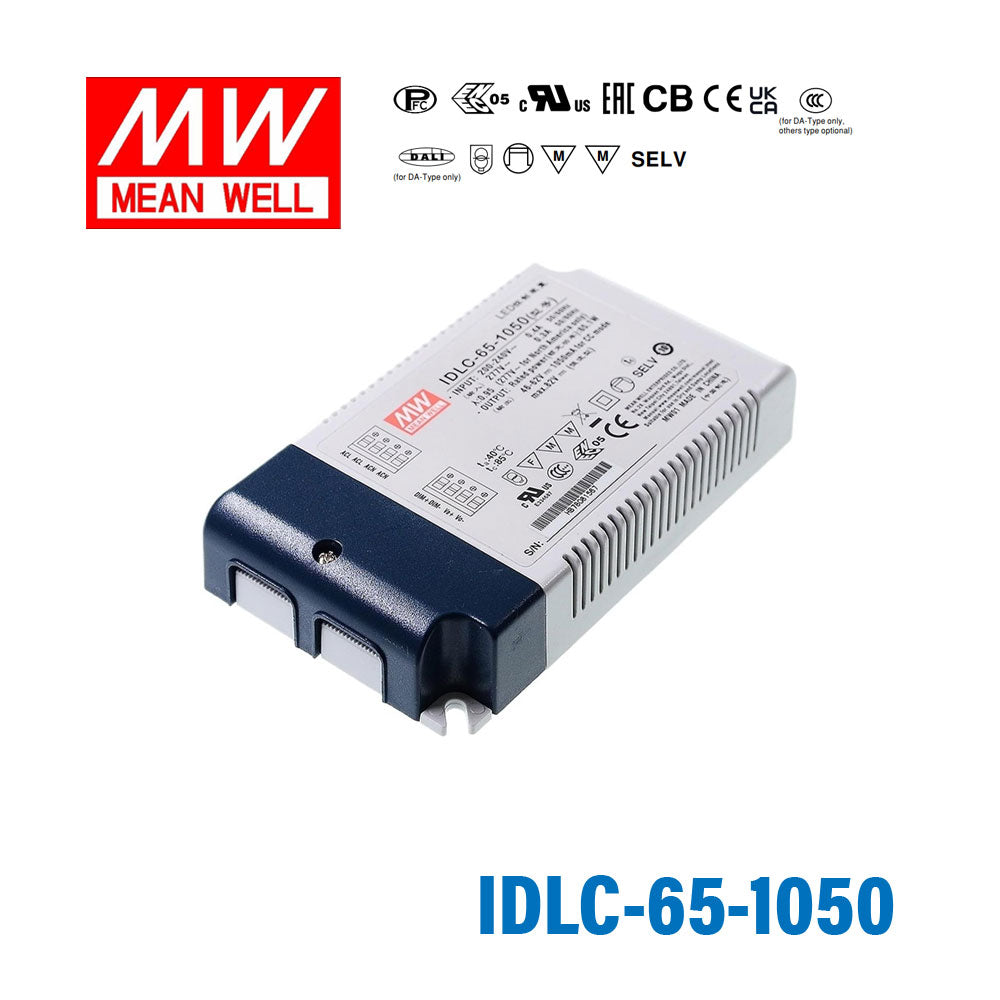

Mean Well IDLC-65-1050 Power Supply 65W 1050mA, Dimmable

Q: Can I use the IDLC-65-1050 for a higher-power LED downlight?

Yes, if the downlight uses a constant current LED engine rated for 1050mA and its operating voltage is within 46-62V. With a 65.1W output rating, this model fits higher-power downlight assemblies that stay inside those limits.

Q: Is this driver suitable for a longer small LED array with more series voltage?

It is suitable when the LED array is designed for 1050mA constant current and needs a total forward voltage between 46V and 62V. The number of LEDs depends on the forward voltage of each LED, so compatibility should be checked by total load voltage rather than by LED count.

Q: Can the IDLC-65-1050 be used in signage lighting?

Yes, but only for signage modules or light engines that are constant current at 1050mA and operate within 46-62V. It is not a constant voltage driver, so it is not the correct choice for signage products built for fixed-voltage DC input.

Q: Would this work for a compact commercial fixture with a 1050mA LED board?

It can, as long as the LED board is specified for 1050mA constant current and its forward voltage falls in the 46-62V range. The 65.1W power rating gives more headroom than the 45W class for compatible constant current loads.

Q: How do I verify LED load compatibility with this 1050mA driver?

Match the driver to an LED load that requires 1050mA constant current and runs between 46V and 62V under normal operation. The actual LED quantity depends on each LED's forward voltage, so a specific LED count should not be assumed.

Q: How does the IDLC-65-1050 compare with the other 65W models in the same series?

The IDLC-65-1050 is a 1050mA model with a 46-62V CC range and 65.1W output. Other 65W versions include 1400mA at 34-46V and 64.4W, 1750mA at 27-36V and 63W, and 700mA at 69-93V and 65.1W.

SKU:

IDLC-65-1050

$23.66 USD ~~$80.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant Current mode output

Flicker-free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output

3 years warranty

General Specification

Short circuit	Hiccup mode recovers automatically after the fault condition is removed
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	T case=-20~+85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section)
Safety standards	UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1
Dimension (LxWxH)(mm)	130 x 75 x 25 mm

Specifications

Brand

Mean Well
Series

IDLC Series
Power Rating

65.1 Watt
Output Voltage

62 Volt
Rated Current

1.05 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

0-10V,10V PWM
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

5.12 in
Width

2.95 in
Height

0.98 in
Weight

0.51 lb
